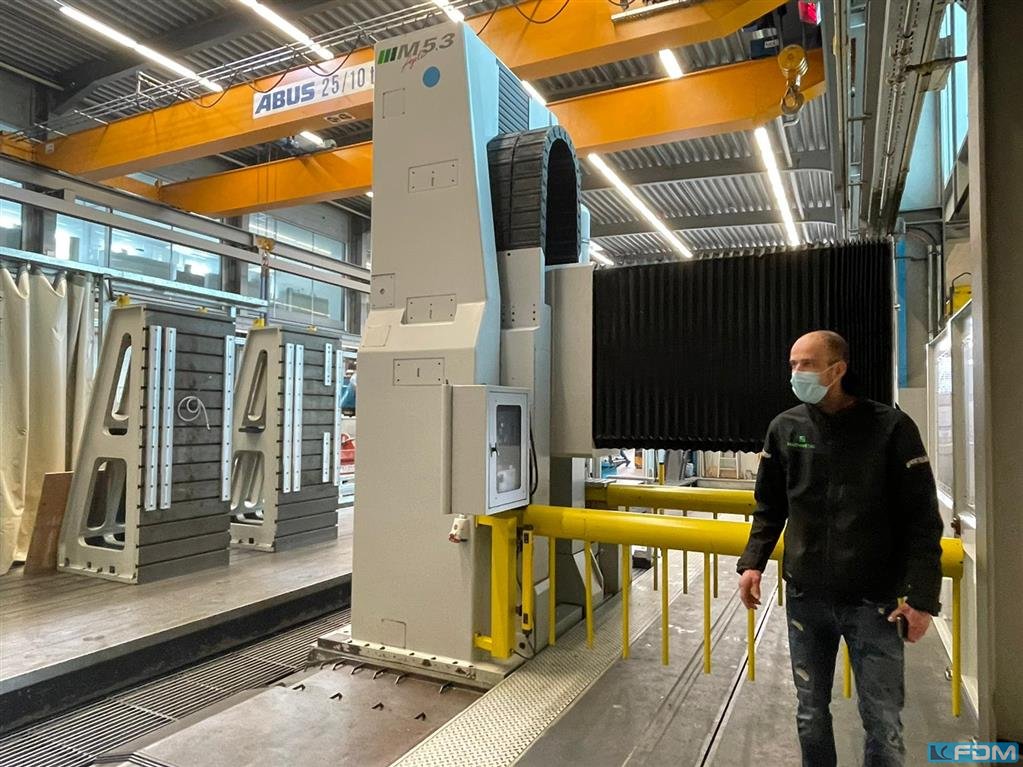

Details

x-Weg:

14000 mm

y-Weg:

1500 mm

z-Weg:

2650 mm

Beschreibung



X-Axis: 14000mm
Y-Axis: 1500mm
Z-Axis: 2650mm
Power on spindle: 28kW
Spindle speeds: 4000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 20000mm/min.
Millinghead auto-index:2,5 x 2,5°
Length: 18000mm
Width: 4000mm
Height: 4800mm
Weight: 55000kg

  MECOF DTBA Automatic head Spindle taper : ISO 50 Speed range : 4000 Power : 28 kW Torg Nm : 780 Indexing Gr : 2.5 x 2.5°  MECOF SPAZIO 15 milling head Spindle taper : HSK 63 Speed range : 20.000 Power : 17,5 kW Torg Nm : 27,8 Indexing Gr : 1° Controlled : Full A & C Axis  MECOF MTCM head change storage  MECOF MU 38 tool changer 38 positions 26 x ISO 50 for tool Ø 120 x 400 x 15 Kg 12 x HSK 63 for tool Ø 80 x 300 x  7  Kg  MECOF IRT6 Coolant system Capacity 80 L/min and 6 bar
