Details

Drehdurchmesser:

915 mm

Drehlänge:

2205 mm

Steuerung:

Mazatrol 640

Beschreibung

SPECIFICATIONS
Swing over bed Ø915 mm
ControlMazatrol 640
Swing over cross slide685 mm
Distance between centres2.205 mm
Work piece weight3.000 kg
Spindle bore166 mm
Spindle speeds / ranges1.000 Rpm
DIMENSIONS
Length9.870 mm
Width 4.420 mm

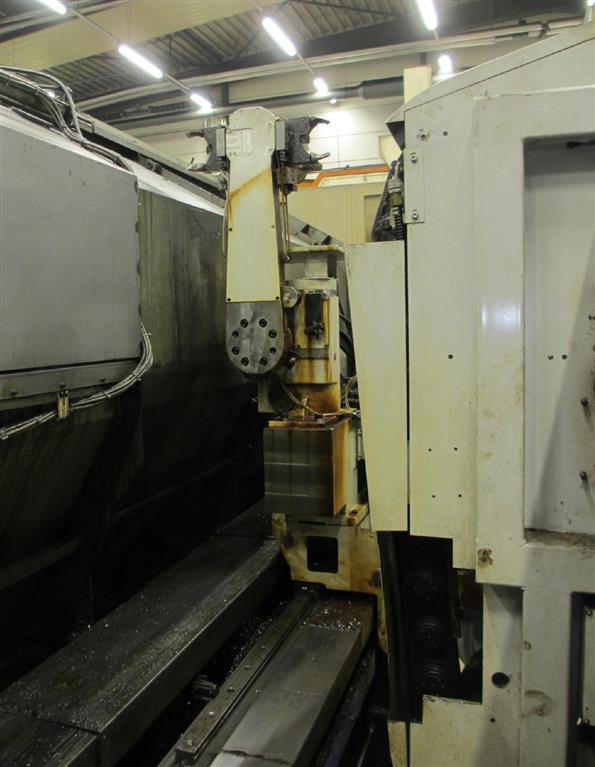

Tool changer chain 60 positions 30/30
Live tools Bt50 / 3000 Rpm / 7.5kW


X = 700 mm – 12.000 mm/Min
Z = 035 mm – 15.000 mm/Min
Yt = 150,111 mm - 300 mm/Min
Y = 130 mm - 000 mm/Min
Pinole Mk 6 / Ø 180

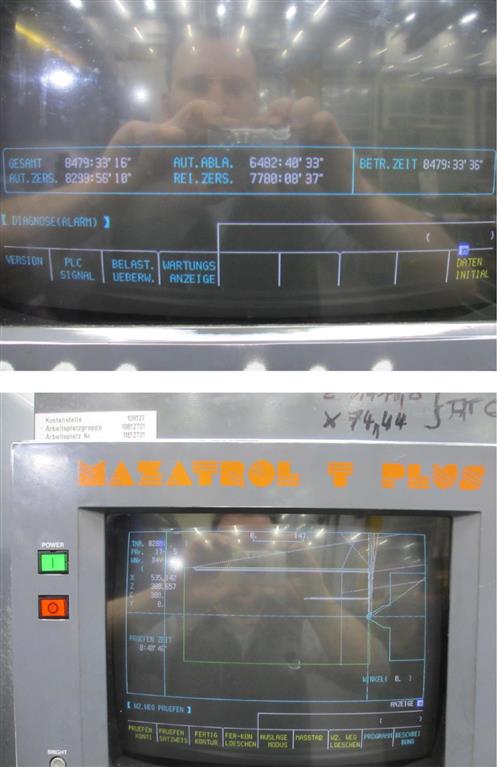

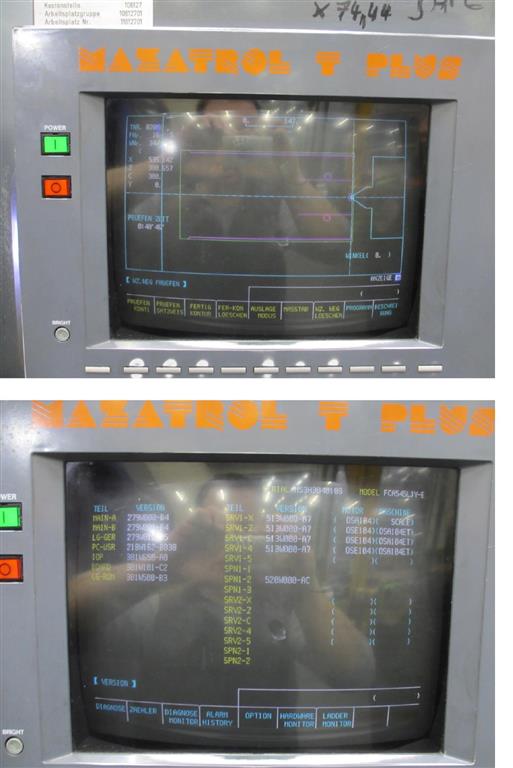

Control MAZATROL T Plus
