Details

Drehdurchmesser:

1500 mm

Drehlänge:

5000 mm

Steuerung:

FAGOR 8055

Beschreibung

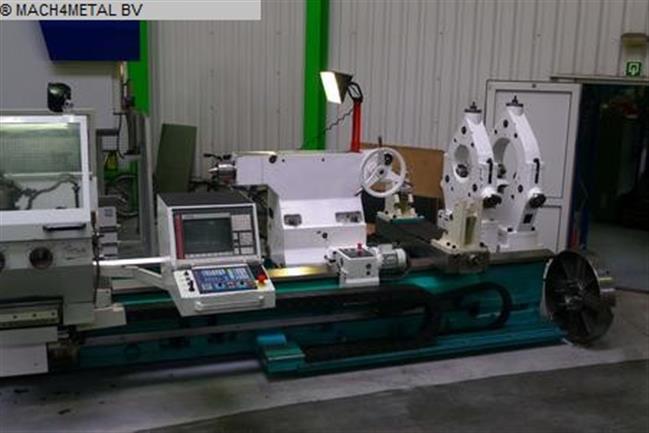

Heavy Duty TOS SU 150 CNC Lathe
Universal with cycle control


-Make: TOS - Celakovice
-Typ: SU 150 CNC
-Age: 11/1998
-Mach.No.: 04 75103

-Max. turning Ø over bed : 1.500
-Max. turning Ø carriage : 1.200

-Centre height: 750
-Centre distance : 5.000

-Bed width: 800
-Bed height: 630

-Spindle bore: 115
-Travel cross slide: 650

-Torque : 12.500
-Rapid feed : 4.500
-Pinole tailstock : 150

-Spindle nose Camlock 11
-Power .. KW / 400 V

-Work piece 6.000 Kg not supported
-Work piece 8.000 Kg Steadied
-Work piece 1.600 Kg flying in chuck

-Infinitely in 4 gear ranges
-1e range5- 28
-2e range29- 71
-3e range72-180
-4e range 181-450

-Dimensions overall
-Length: 8.860
-Width: 2.850
-Height: 1.700
-Weight: 10.700 Kg

-Motorised tailstock

-Fixed steady rest Ø 300
-Fixed steady rest Ø 450
-Fixed open steady Ø 1.200 ?
-Bed ways hardened

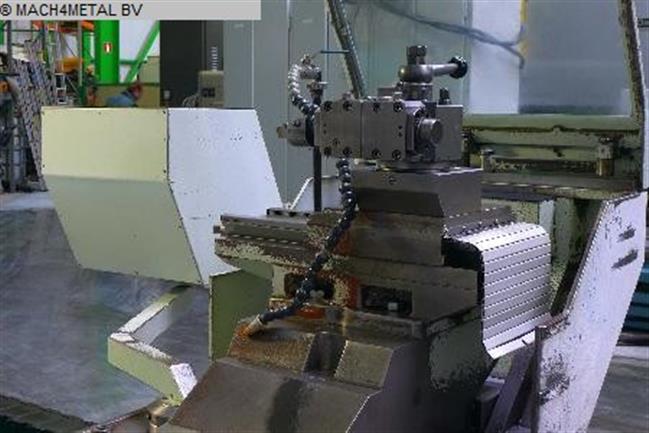

-Tool holders system incl. insert

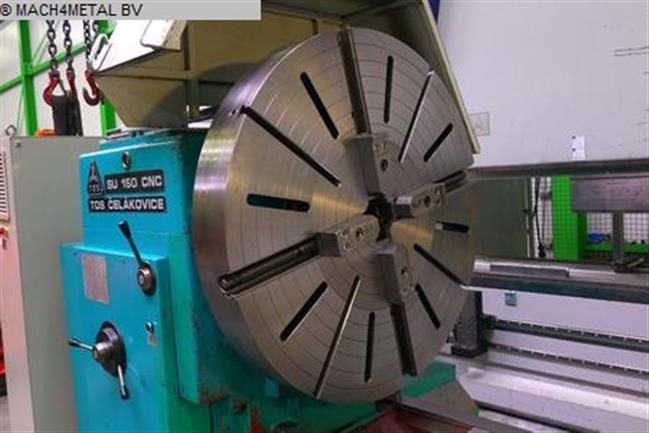

-4 chuck Ø 1.200
-4 chuck Ø 800
-3 chuck Ø 400 ?

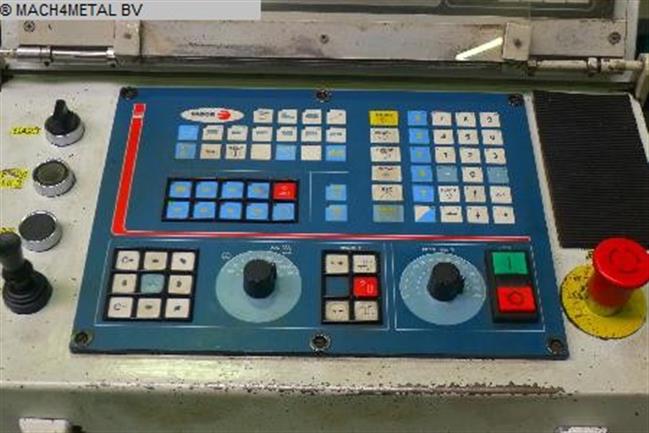

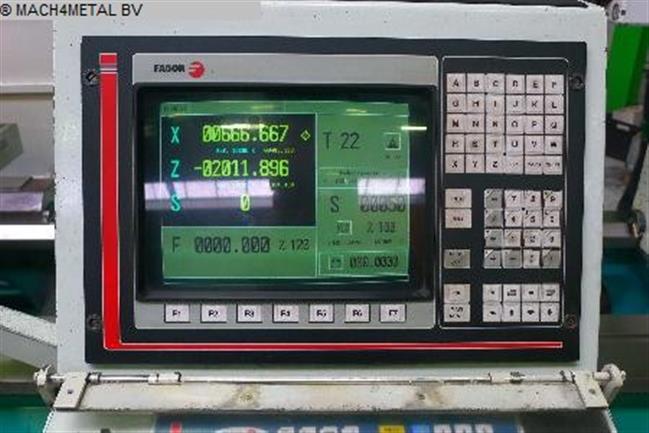

-CNC FAGOR 8050 colour control
-New Euro 350.000

Tos Su 150 CNC is a numerically controlled machine designed for roughing and finishing turning operation on the shaft and flange work application with weight up to 8000 kg. Machine is ideally for turning of cylindrical and taper surfaces, facing, drilling, boring, turning of recesses, thread cutting, internal & external radius & contour turning various rotary profiles.

Please Note: The above information has been obtained to the best of our ability and belief from, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
