Details

Schnittlänge:

270 mm

Schnitthöhe:

80 mm

Beschreibung

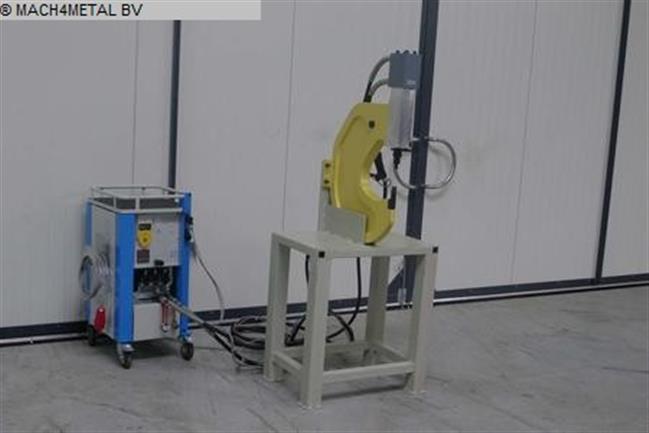

Technische Daten: Walter Eckold clincher & hydro unit

HA 510 S & C Frame clinching

C Frame clinching machine:

- Make : Walter Eckold
- Typ : SZ 63 – 90 / 132
- Age : 982625

- Throat Hor : 270
- Throat Vert :
- Gap : 80
- Forming capacity : 2,5 mm

Hydraulic drive unit:

- Make : Walter Eckold
- Typ : HA 510 S
- Age : 03.1999

- Working pressure : 20 – 500 bar
- Oil pump l/min :
- Hydraulic oil :
- Single action : 2 x
- Stroke’s : 20 – 60

- Power 400 V / 3.1 kW
- Dimensions
- Length : 540
- Width : 450
- Height : 970
- Weight : 130

Please Note: The above information has been obtained to the best of our ability and belief from, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
