Boring mills / Machining Centers / Drilling machines - Machining Center - Vertical - KRAFT VL 700A | VL 1100A | VL 1100D

Machining Center - Vertical

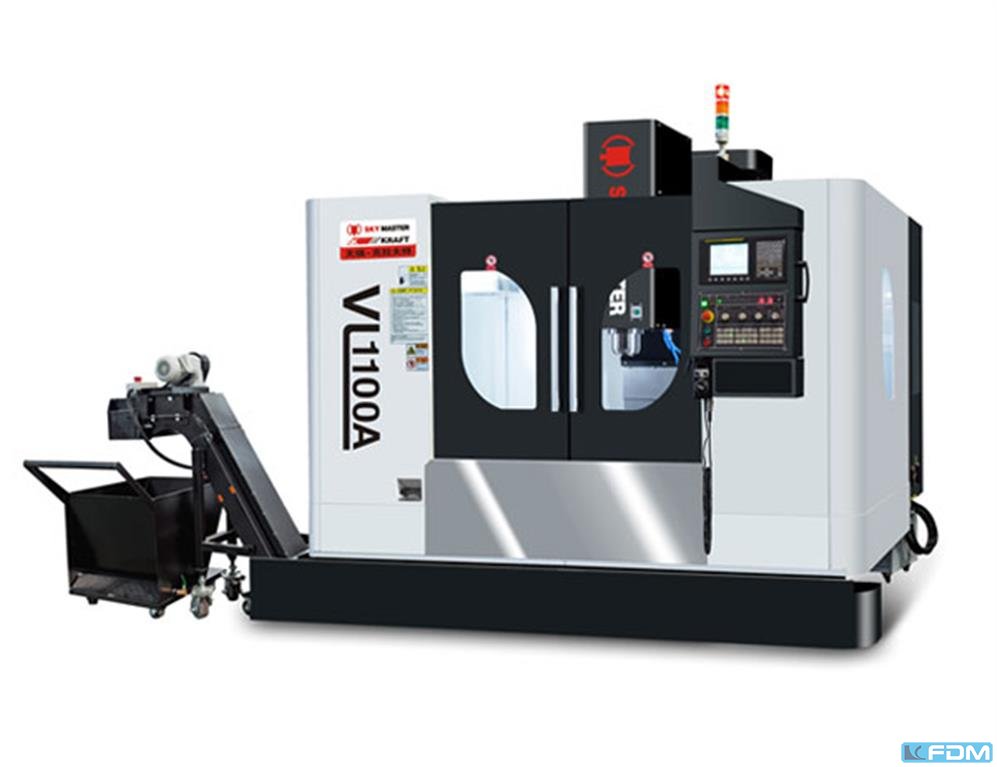

KRAFT VL 700A | VL 1100A | VL 1100D

Stock number:
1124-91160
Year / Condition:
Fabrikneu / New
Control unit:
CNC (Siemens/Fanuc)
Country of origin:

Freight basis:

Item location:

Delivery time:
ca. 4-5 months

Picture / documents / videos

Technical specs

Details

:
VL 700A VL 1100A VL 1100D
x-travel:
700 mm1100 mm1100 mm
y-travel:
420 mm600 mm600 mm
z-travel:
500 mm600 mm600 mm
table-size:
800x420 mm1280x600 mm1280x600 mm
max. table load:
500 kg1000 kg1000 kg
distance spindle center to column:
480 mm630 mm630 mm
distance spindle center to table:
100-600 mm100-700 mm60-660 mm
rapid traverse in x-y-z axis:
40/40/32 m36/36/30 m36/36/30 m
milling feed range:
1-10.000 mm/min
:
10.000  1/min (direkt)10.000  1/min (direkt)6000  1/min (direkt)
spindle drive:
11/16,5 kW
positioning accuracy:
+/- 0,010 mm
repeating accuracy:
+/- 0,008  mm
tool taper:
40 BT/SK40 BT/SK50 BT/SK
max. tool diameter:
80/130 mm80/130 mm110/220 mm
max. tool weight:
8 kg8 kg20 kg
max. tool length:
300 mm300 mm350 mm
dimensions:
4215x3230x2700 mm4200x3510x2850 mm4200x3510x2850 mm
weight of the machine ca.:
4,5 t7,25 t7,5 t

Accerories

cnc control Siemens 828d

complete cooling system

24 station arm type tool magazine and 24 sets pull

rigid tapping

chip conveyor with chip bucket

water gun


heat exchanger

automatic lubrication system

CE-design

technical documentation in German language

signal lamp

Spindle oil cooler

pneumatic unit

Cutting air blast

signal lamp


Description

Brand-new CNC vertical machining center with CNC control Siemens 828D with Shopmill.

Incl. the following standard accessories:

CNC control Siemens 828D with SHOPMILL including 2-year warranty
1 piece coolant system
1 piece automatic 20-fold tool changer (Model VL-700), Type „ARM TYPE ATC“
1 piece automatic 24-fold tool changer (Model VL-900, VL-1100, VB-1000, VB-1200, VB-1600), Type „ARM TYPE ATC“
1 piece Halogen Machine Lamp
1 piece alarm / indicator lamp
rigid tapping
1 set of tools
1 piece chip conveyor (chain)
1 piece tool set (water gun, air gun)
1 set foundation blocks and fixture screws
heat exchanger for electric cabinet
automatic lubrication system
full enclosure guard
automatic power off
Spindle speed of 8000 U / min (Model VL-700, VL-900, VL-1100, VB-1000)
Spindle speed of 6000 U / min (Model VB-1200, VB-1600)
linear guide (VL-Serie) from THK or Rexroth
1 set of operating manual with spare parts list in German language
400V, 50cps, 3 phs
CE version incl. CE Declaration of Conformity
belt drive with 10.000 U/min
door interlock
8,4” Screen
spindle chiller
coolant through spindle center
tool setter (Blum)

Warranty: 12 months

More information can be found in the Appendix.

linear scales
CNC controls from
tool measuring system
workpiece measurement system

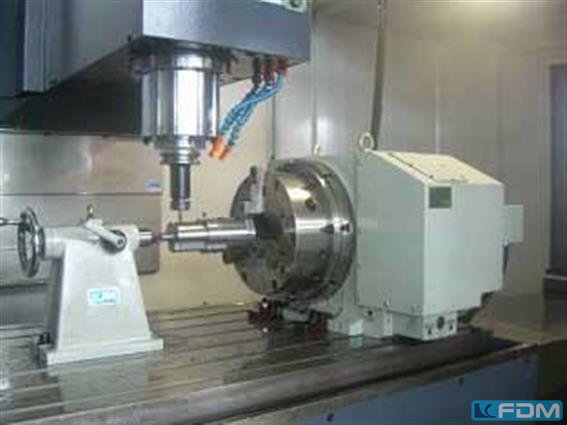

CNC-rotary table
4th5th axis
