Details

turning diameter:

800 mm

turning length:

3838 mm

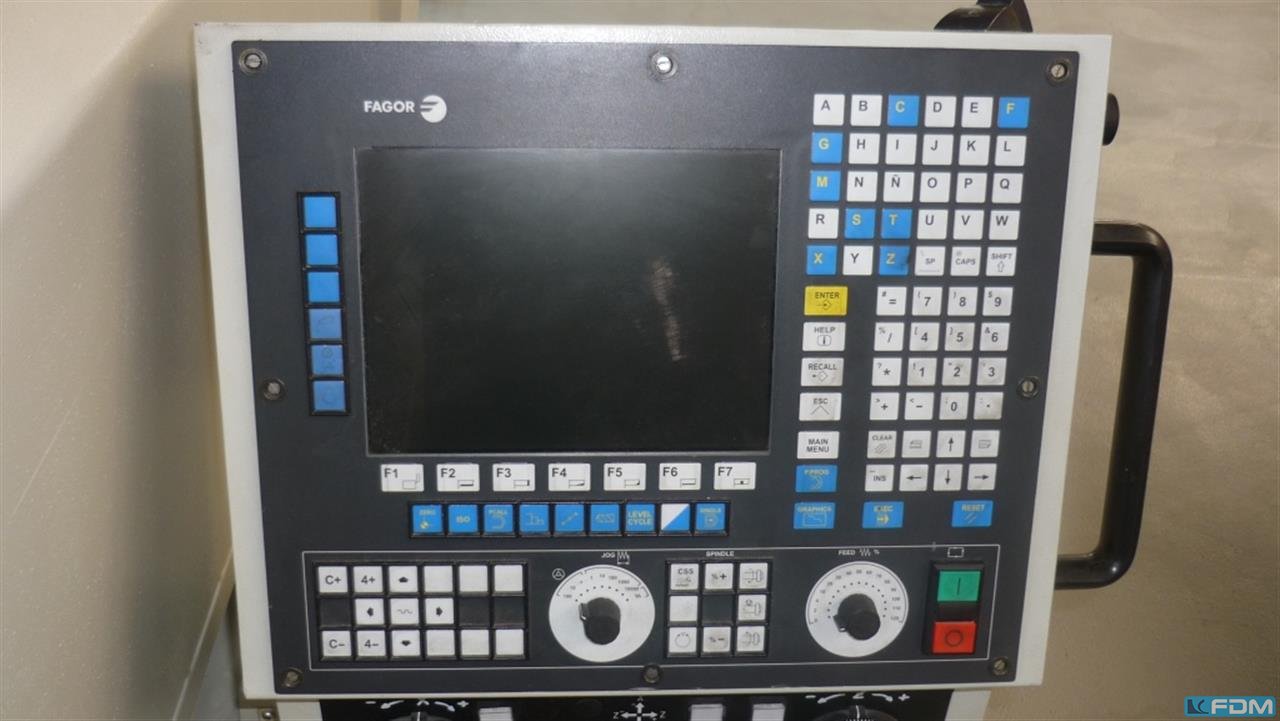

control:

Fagor 8055i

max. swing over slide:

490 mm

bed width:

550 mm

turning speeds:

40-1000 U/min

spindle taper:

C11

spindle bore:

100 mm

transmission ratio:

4 Stk.

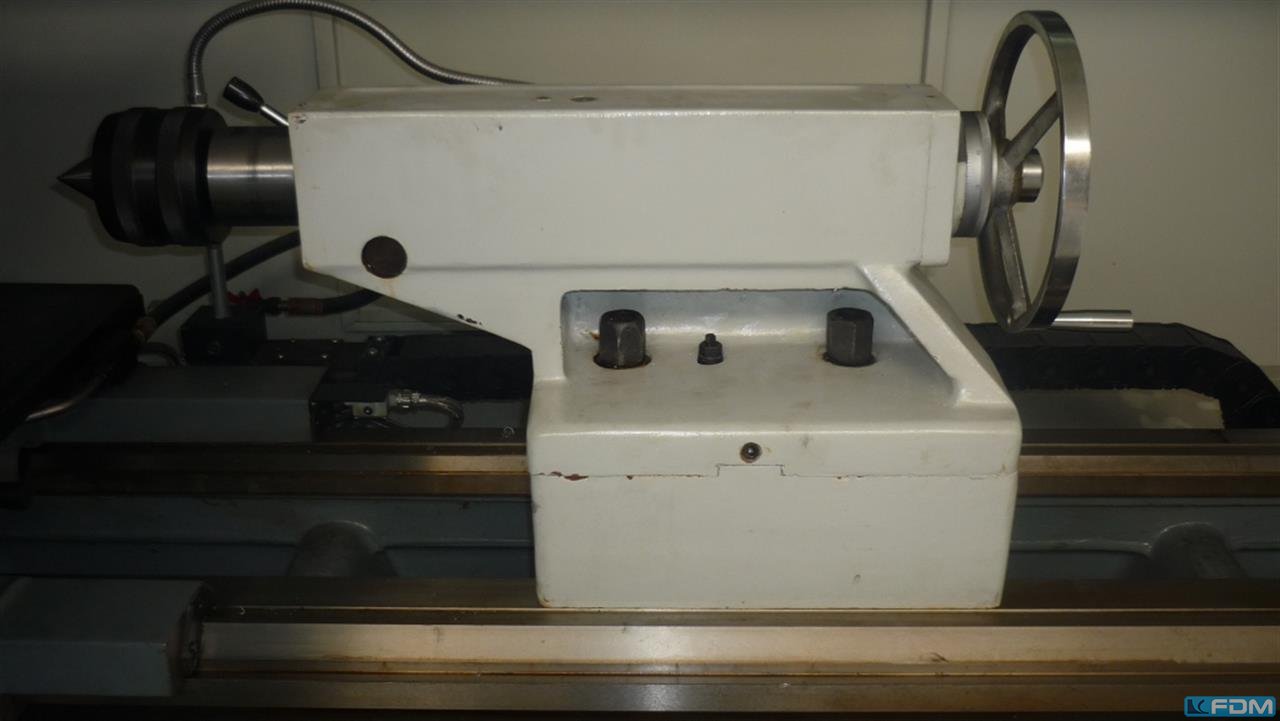

tailstock quill diameter:

100 mm

tailstock quill stroke:

240 mm

taper of tailstock quill:

6 MK

4000 mm

x-travel:

420 mm

z travel:

3835 mm

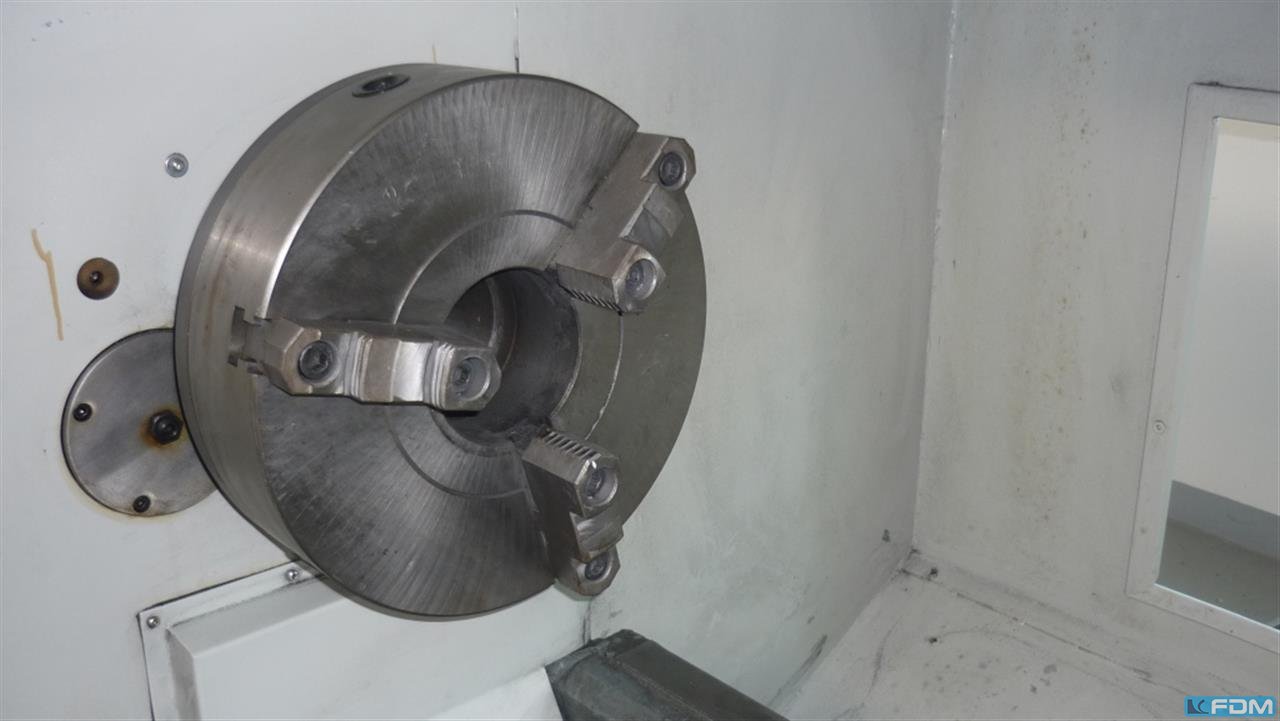

chucking diameter:

400 mm

spindle cone:

1:20

rapid traverse x/z:

4/8 m/min

power requirement:

11 (15/30min) kW

weight of the machine ca.:

6600 kg

dimensions of the machine ca.:

6310/2000/1800 mm

Description

+++SPECIAL PRICE+++SPECIAL OFFER+++

main features:
-high speed
-high spindle torque
-big spindle bore
-automatic forced lubrication
-hardened and ground guideways
-brand-new design eterior
-CE certificate of TÜV Rheinland, Germany & ISO 9001 CQC, China

All machines' functionalities will be checked and controlled before loading. The machines can be modified according to CE upon request.

PAYMENT: 100% before loading
