Details

turning diameter:

700 mm

turning length:

1500 mm

control:

FAGOR 8055

turning diameter over bed slide:

400 mm

bed width:

425 mm

spindle taper:

A2-8

spindle speeds:

0-1500 (2 Stufen) 1/min.

spindle bore:

80 mm

tailstock quill diameter:

106 mm

tailstock quill stroke:

225 mm

taper of tailstock quill:

6 MK

max. length of work piece:

1500 mm

power requirement:

7,5 kW

weight of the machine ca.:

5500 kg

dimensions of the machine ca.:

3790x2170 mm

Accerories

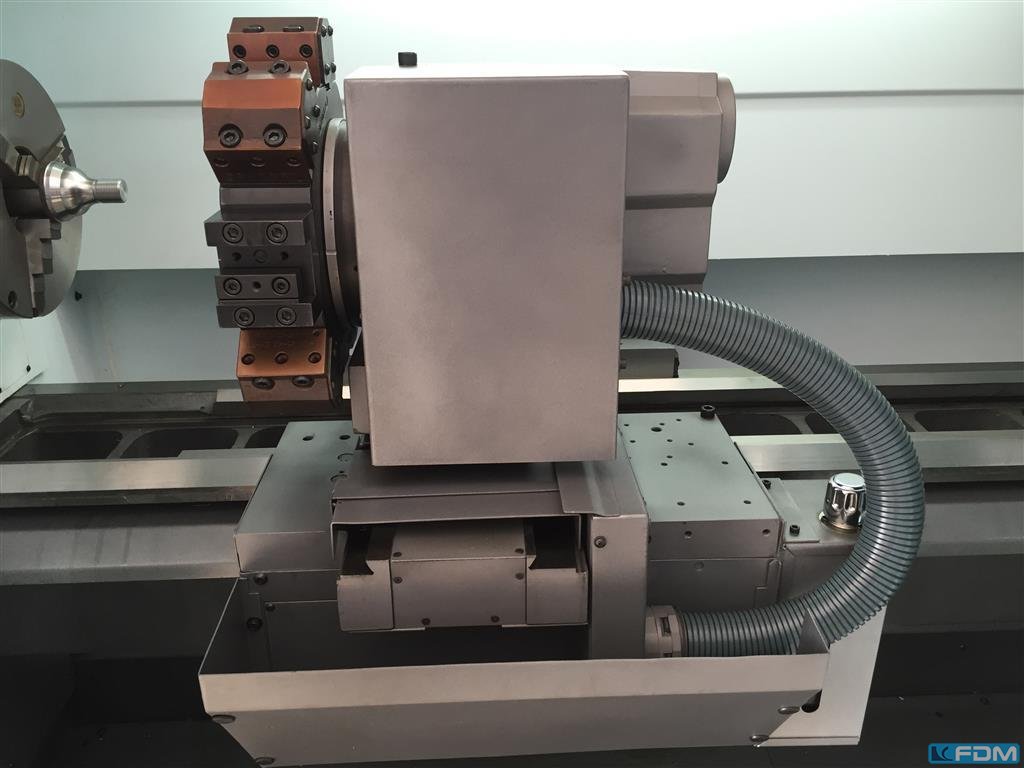

turret:

8 fach

CNC controller:

FAGOR 8055

European electric



CE-design



coolant system



automatic lubrication system



Machine semi-cover





chip pan



dead center



reducing bush



stepless speed



signal lamp



electronic hand wheel:

für X- und Z-Achse

in deutscher Sprache

CE and declaration of conformity



LED work light



levelling elements



Description

New CNC lathe KRAFT ST 285/1000 with Fanuc Oi Mate TD

Made in Europe

For more information please see the attached documents

chip conveyor and trolley
steady rests
different chucks and faceplates
