Details

bore capacity in steel (diameter):

32 mm

arm length::

275-800

workpiece height max.:

1.040 mm

horizontal adjustment of the boring slide:

180 mm

vertical adjustment of arm:

800 mm

distance table - lower edge spindle:

1.040 max -350 min mm

spindle taper MT:

MK 4

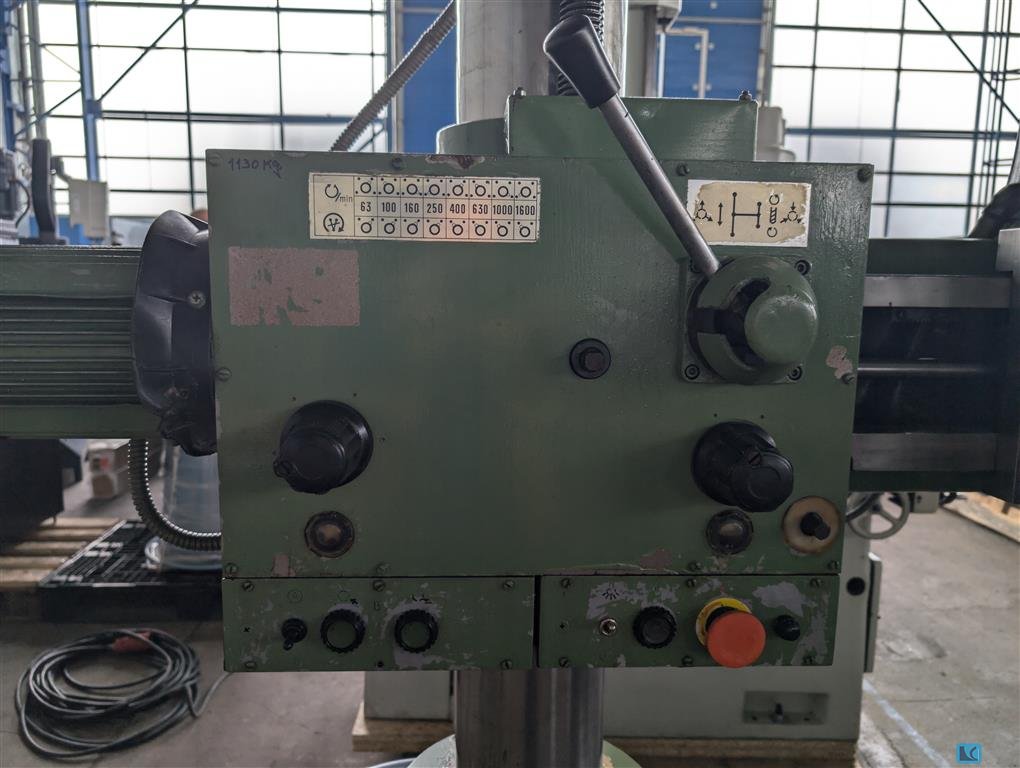

range of revolutions per minute - continous:

63 - 1.600 / 8 step U/min

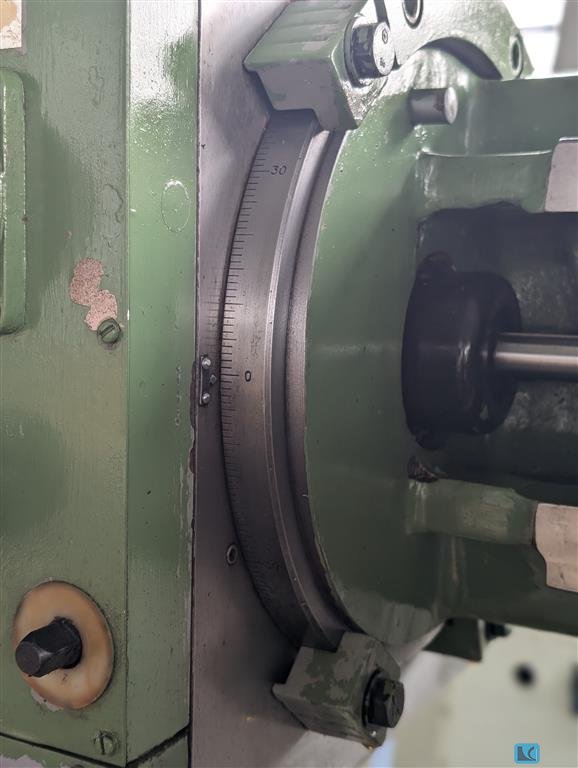

swivel range of the arm:

360 Grad

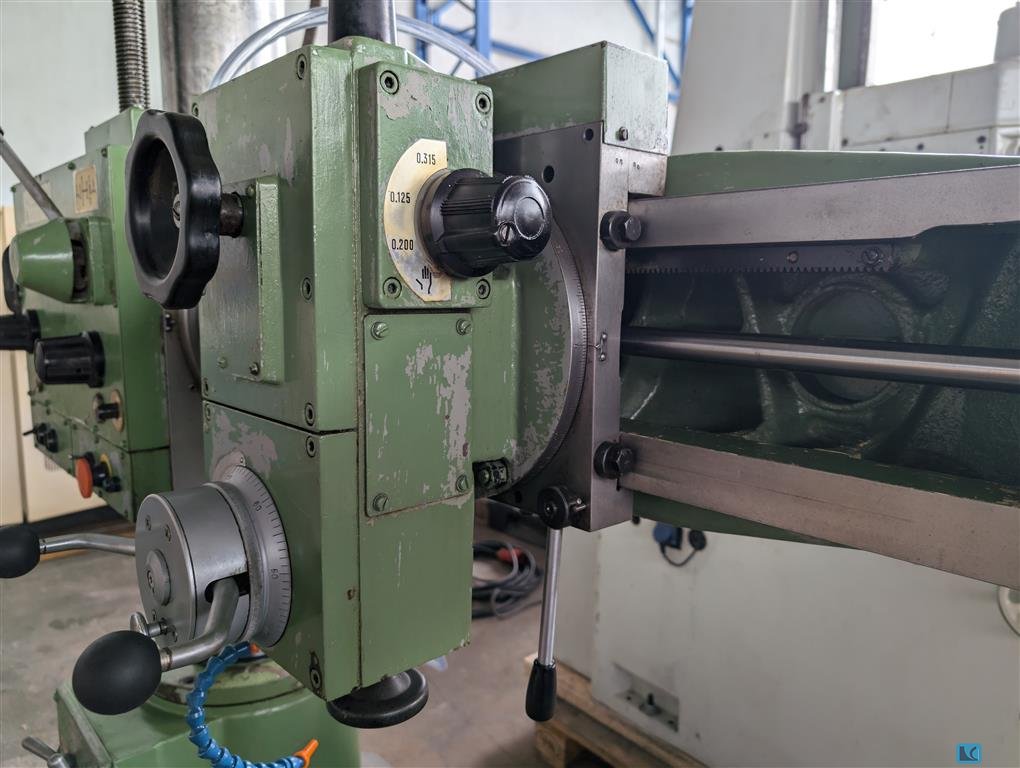

feed:

0,125/0,200/0,315 mm/U

column diameter:

180 mm

base plate surface area:

730 x 500 mm

weight of the machine ca.:

1,2 t

dimension machine approx.LxWxH:

1,75x0,56x1,97 m

Description

Cooling water system with pump and supply to the spindle
