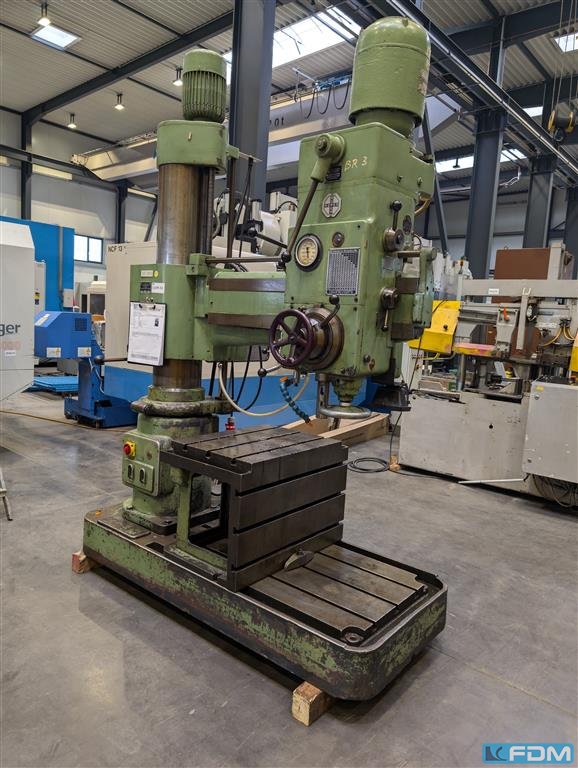

Details

bore capacity in steel (diameter):

32 mm

arm length::

1000

horizontal adjustment of the boring slide:

700 mm

vertical adjustment of arm:

600 (motorisch) mm

swivel range of the arm:

90° rechts/links Grad

distance table - lower edge spindle:

min./max.: 200 / 1120 mm

spindle taper MT:

4

bore spindle stroke:

420 (manuell-automatisch) mm

range of revolutions per minute - continous:

20 - 2000 / 3 step U/min

feed:

01, / 0,2 / 0,3 / 0,4 / 0,8 / 1,2 mm/U

column diameter:

250 mm

base plate surface area:

1100 x 600 mm

total power requirement:

4,6 kW

weight of the machine ca.:

2,5 t

dimension machine approx.LxWxH:

1,8 x 0,8 x 2,5 m

Description

Tool ejection via expulsion wedge
Equipment:
Coolant system with pump (without feed)
Drill cube L: 760 x W: 500 x H: 510mm / horizontal surface 760 x 500mm and vertical surface 760 x 510mm
Machine ilumination
