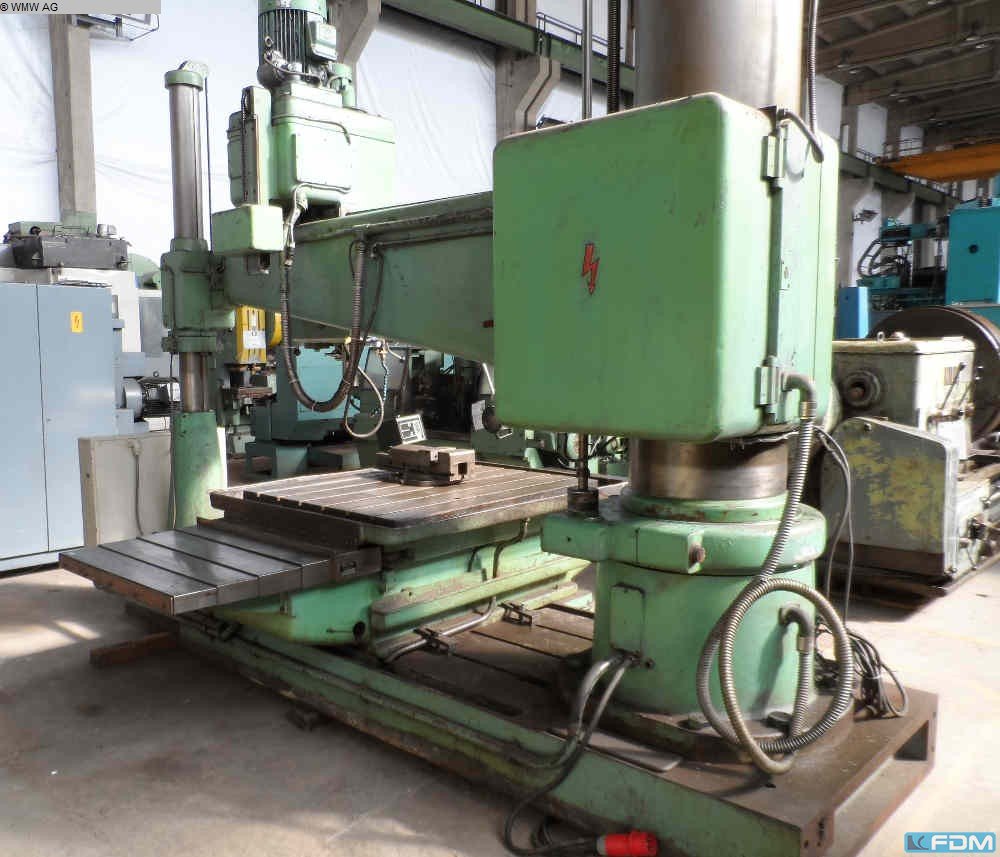

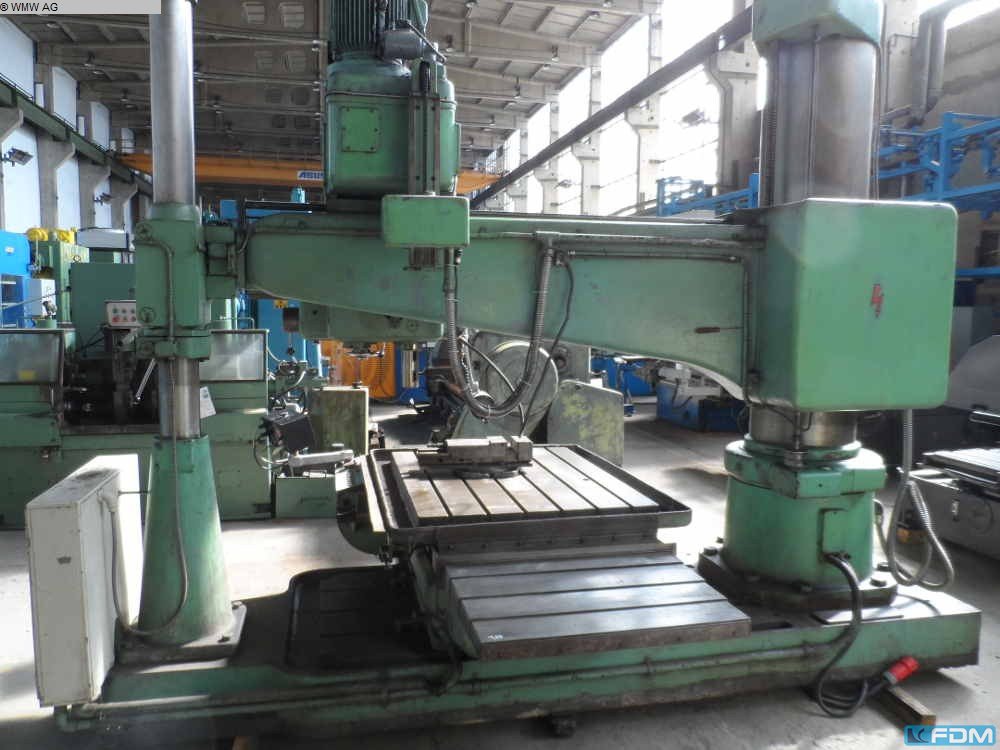

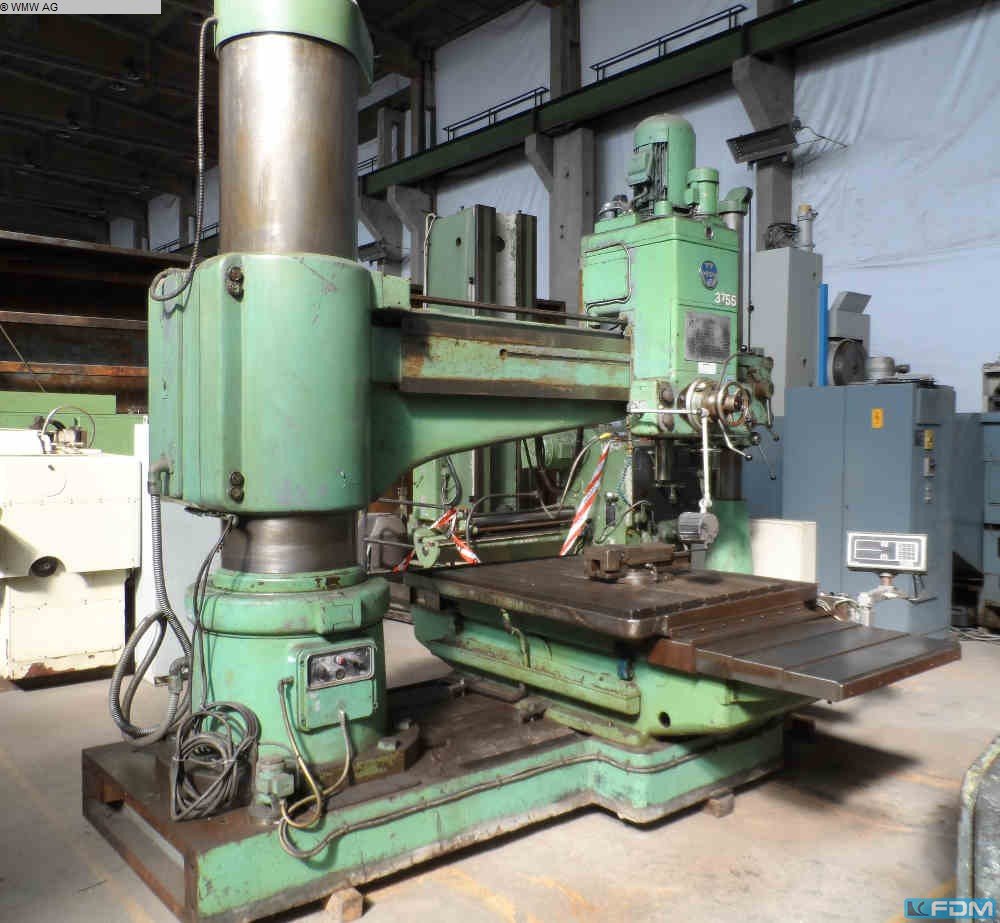

Radial Drilling Machine
WEBO BR 50/63-H 2000
- Stock number:
- 1087-0200331
- Year / Condition:
- 1966 / Used
- Control unit:
- conventional (konventionell)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 63 mm
- arm length::
- 2000
- workpiece height max.:
- 1270 mm
- spindle taper MT:
- MK 5
- drill depth:
- 400 (Hub) mm
- quill stroke:
- 400 mm
- feed:
- 0,05 - 0,32 m/min
- revolutions per minute spindle::
- 14 - 1000 (40/50/63/160+200 o.Funktion) U/min
- column turnable:
- 360 °
- electrics - voltage/frequency:
- 380/50 V/Hz
- base plate:
- 1900 x 950 mm
- total power requirement:
- 13 kW
- weight of the machine ca.:
- 7,9 t
- space requirements approx. LxWxH:
- 3,9 x 1,5 x 3,4 m
Description
This radial drilling machine has an electric sliding table!
Further features:
- Distance from spindle center to stand: 360 - 2000mm
- Distance from drill chuck to table top: 1270mm
- Distance from spindle to base plate: 1220 - 4520mm
- Drilling capacity in St 60: 63mm at feed rate 0.32
- Drilling capacity in GG 22: 80mm at feed rate 0.5
- Horizontal travel of the drilling head: 1640mm
- Vertical travel of the drill head: 980mm
- Distance from spindle nose to base plate: 430-1770mm
Equipment:
- Coolant pump (out of function)
- Support stand
- 1 electrically driven sliding table 1250 x 1000mm type TI 18 with digital display (interface to the machine)
- incl. machine vice
Not all revolutions are currently selectable.
i.D.
