Details

turning diameter:

65 mm

turning length:

120 mm

control:

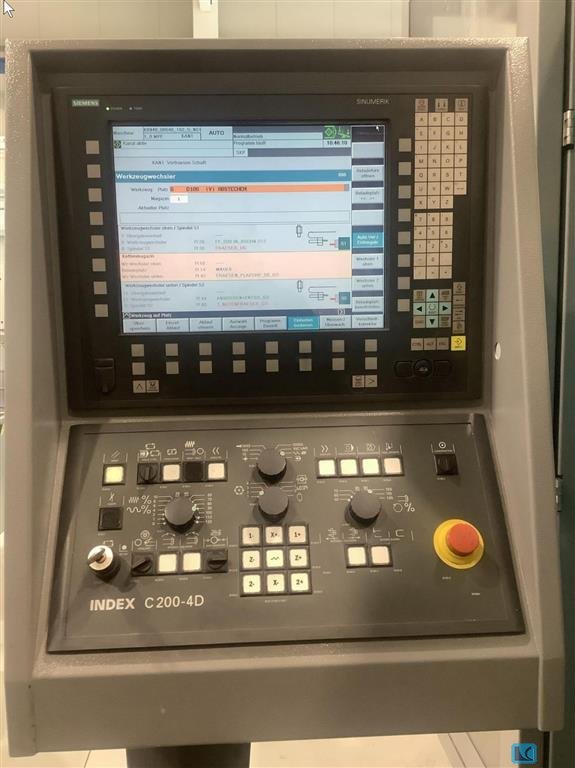

Index C200-4D SL

z-axis main spindle travel:

390 mm

z-axis subspindle travel:

390 mm

x-axis subspindle travel:

600 mm

Travel Y1:

± 80 mm

Travel y2:

± 80 mm

x-axis rapids:

45 m/min

y-axis rapids:

15 m/min

z-axis rapid travel:

45 m/min

Spindle 1 RPM:

5000 1/min

Spindle 1 Power:

35,5/27,5 kW

Spindle 1 Torque:

170 /125 Nm

Spindle 2 RPM:

5000 1/min

Spindle 2 power:

35,5/27,5 kW

Spindle 2 torque:

170/125 Nm

c-axis:

0,00014 °

bar material dia.:

65 mm

spindle nose:

AD 140

spindle bore:

85 mm

Milling spindle 1 RPM:

18000 1/min

Milling spindle 1 power:

11 kW

Milling Spindle1 torque:

19 Nm

Milling spindle 2 RPM:

18000 1/min

Milling Spindle 2 power:

11 kW

Milling spindle 2 torque:

19 Nm

B-axes swivel angle:

230 °

B-axes torque:

440 Nm

B-axes angle resolution:

0,001 °

Milling spindle 1 & 2 tool magazine:

80 HSK A40

Milling spindle 2 tool magazine static tools :

6 x VDI 25

internal coolant system feed:

Knoll 80 bar / Ecofluid

weight of the machine ca.:

16,3 t

dimensions of the machine ca.:

3,73x2,92x2,58 m

Accerories

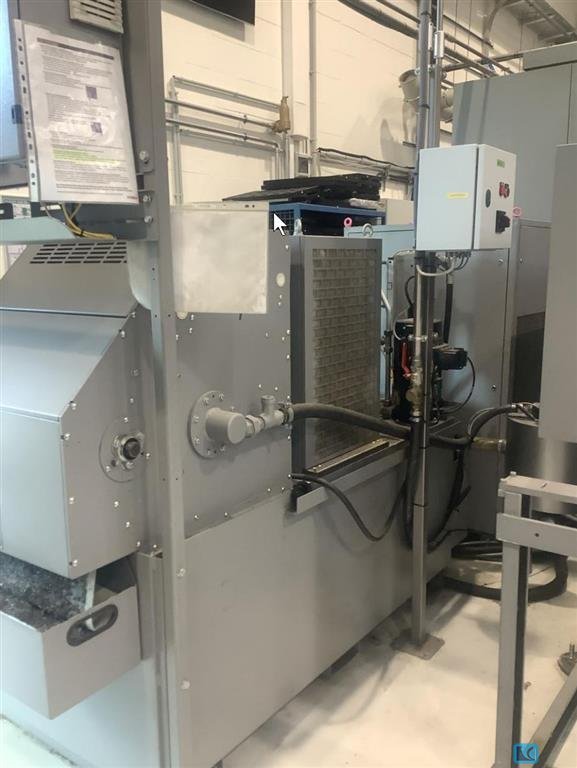

Chip conveyor



Spindle 1 Chuck:

SMW HFKN 165-46 mm

Spindle 2 Chuck:

SMW HFKN 165-46 mm

Collet chuck main spindle:

Hainbuch Spanntop

Collet chuck subspindle:

Hainbuch Spanntop

Barfeeder Interface:

Unimag

Short bar loader:

IRCO ILS RBK 10016

Parts catcher for main- and sub-spindle



Conveyor for partsdisposal



Air Filter:

Büchel

Description

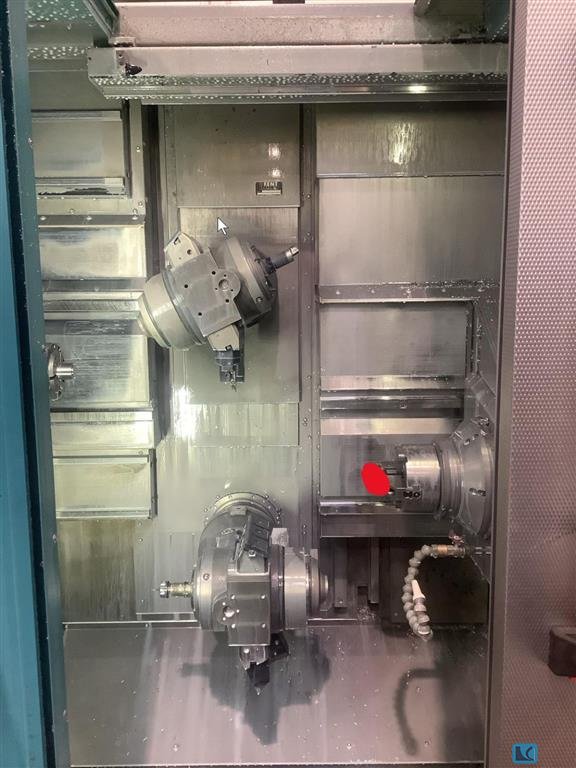

High performance heavy duty turning and milling center with 2 multi axis milling heads and two spindles.
Both milling heads are full 5-axis.
The z-axes are installed in the spindle heads
The x2 axis is installed in the spindle head of the subspindle
Milling1 head has x/y/b -axes
Milling head 2 has y/b-axes

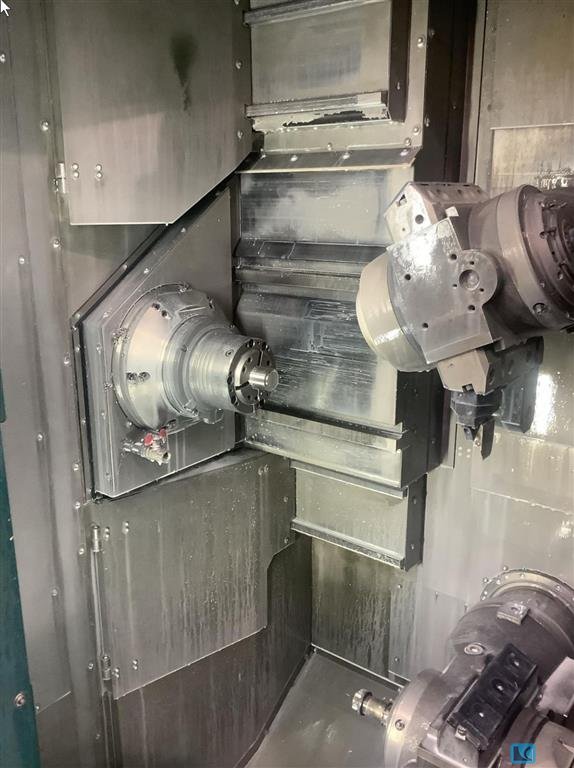

Both milling heads have B-(Swivel-)axis 230°
The machine is equipped with an IRCO short barfeeder and parts gripper for finished parts.
Max. dim for finished parts: Ø 65 mm, length 120 mm, weight 5 kg.
Rest piece length 200 mm
All linear- axes are equipped with linear scales.
Coolant through main and subspindle.
Tool breakage control from drill Ø 1mm
All existing tool from machine are part of delivery

Machine is in excellenten Condition!
