CNC Turning- and Milling Center
MORI SEIKI NZ 2000 T3Y2
- Stock number:
- 1070-100702
- Year / Condition:
- 2011
- Control unit:
- CNC (MSX-701 IV (MAPPS 4))
- Country of origin:
- Japan
- Freight basis:
- EXW (Incoterms 2010) free loaded on truck
- Item location:
- South Germany
- Delivery time:
- July 2026
Picture / documents / videos
Technical specs
Details
- standard turning dia.:
- 200
- turning length:
- max. 810 mm

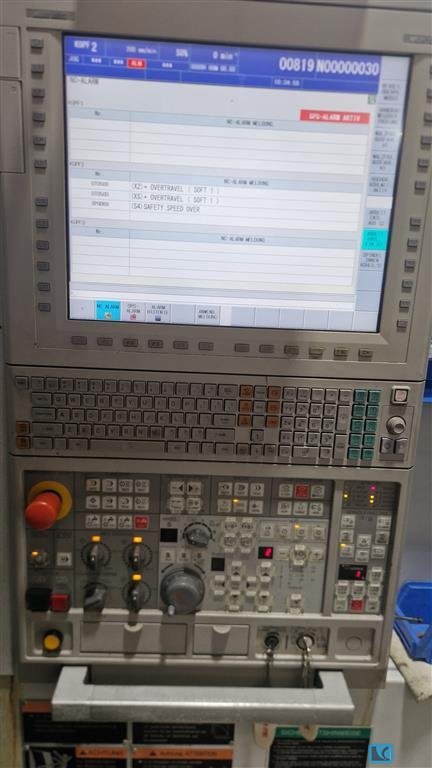

- control:
- MSX-701 MAPPS IV
- greates pass round over bed:
- 800 mm
- Max. distance between centres:
- 1130 mm
- max. turning diameter:
- 320 mm
- max. workpiecediameter:
- 300 mm
- bar material dia.:
- 65 mm
- Traverse X-Axis 1:
- 210
- Traverse X-Axis 2:
- 210 mm
- Traverse X-Axis 3:
- 210 mm
- Traverse Y-Axis 1:
- 110 (+65/-45) mm
- Traverse Y-Axis 2:
- 110 (+45,/-65) mm
- Traverse Z-Axis 1:
- 300 mm
- Traverse Z-Axis 3:
- 300 mm
- Traverse Z-Axis 2:
- 810 mm
- Traverse B-Axis:
- 870 mm
- turning speed range - spindle:
- 5.000 1/min
- Number of spindle speed ranges:
- 2 .
- spindle nose:
- JIS A2-6
- spindle bore:
- 73 mm
- spindle bearing diameter:
- 120 mm
- C-Axis:
- 0,001 °
- turning speed range - spindle:
- 5.000 1/min
- spindle nose:
- JIS A2-6
- spindle bore:
- 73 mm
- bar material dia. max:
- 65/52 mm
- spindle bearing diameter:
- 120 mm
- C-Axis:
- 0,001 °
- Number of Turrets:
- 3 .
- Number of tool stations:
- 16 x 3=48 pos
- Schank height for square tool:
- 20 mm
- Diameter of boring bar:
- 32 mm
- turret changing time (4-stations):
- 0,18 sec
- Number of driven tools:
- 16 x 3=48 pos
- max. spindle speed driven tools:
- 6.000 U/min.
- Rotary tool machining ability:
- M16 / Ø16 .
- rapid traverse X-axis:
- 30 m/min
- rapid traverse Y-axis:
- 20 m/min
- rapid traverse Z-axis:
- 50 m/min
- drive capacity - spindle motor:
- 25 / 22 kW
- power capacity - driven tools:
- 7,5 / 5,5 kW
- total power requirement:
- 92,7 kVA
- weight of the machine ca.:
- 9,4 t
- dimensions of the machine ca.:
- 4,0 x 2,8 x 2,4 m
Accerories
- Chip conveyor
- Coolantsystem
- C-axis in main and sub spindle
- part counter
- total counter
- tool setting
- Overhead partsgripper with conveyor belt.
- Spindle 1 Chuck:
- SMW KNCS-N 210 / 52 mm

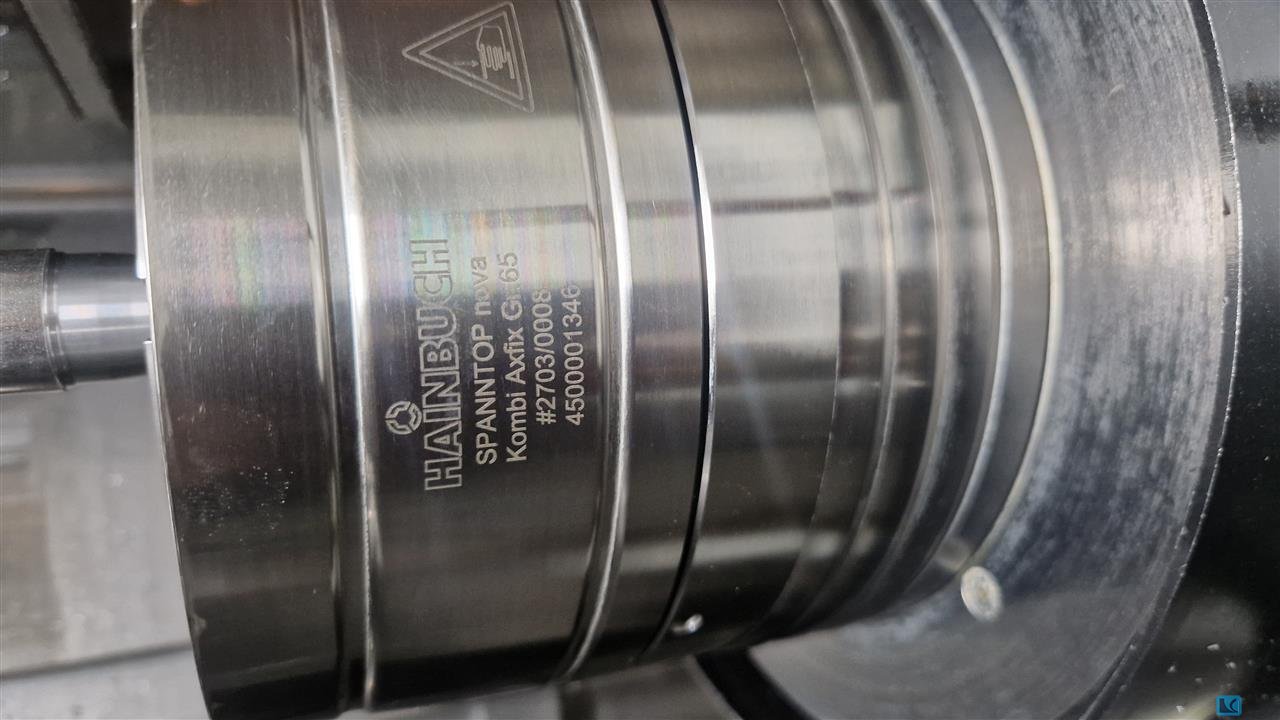

- Spindle 2 Collet Chuck:
- Hainbuch Spanntop nova Kombi Axfix 65
- Robot interface
Description
CNC Turning- and Milling Center
MORI SEIKI NZ 2000 T3Y2

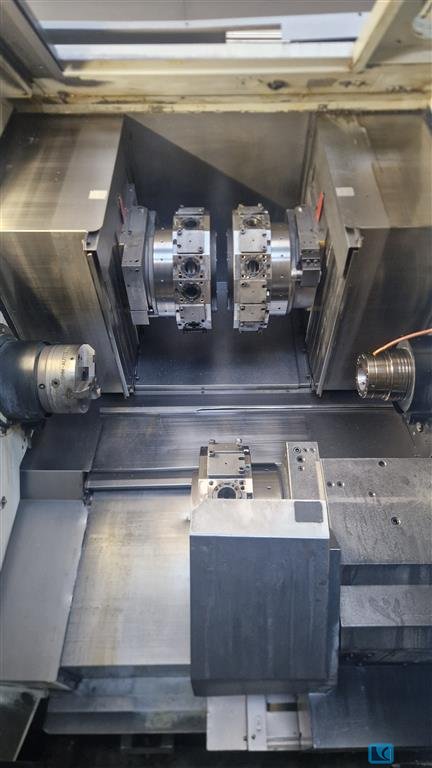

The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets.
The robot cell has been diemanteled, it is now a stand alone machine.
A bar feeder can be added.
