Details

turning diameter:

640 / 400 mm

turning length:

1500 mm

control:

Siemens 840 D Powerline

Travel turret No.1 (milling spindle) x/y/z:

550 / 180 (±90) / 1585 mm

Swivle angle milling spindle (B-axis):

±120° interpol. °

Rapid traverse feeds turret 1 (milling head) x/y/z:

40/24/60 m/min

RPM milling spindle:

12000 1/min

power capacity - milling spindle:

12 / 23 kW

Torque of milling spindle:

100 Nm

Tool magazine for milling spindle (turret 1):

120 HSK-A 63

Tool change time tool/tool, milling spindle:

1,6 s

Spindle 1 RPM:

4000 1/min

Spindle 1 power:

36/ 45 kW

Spindle 1 Torque:

730 Nm

Spindle 1 max. bar diameter:

90

Spindle 2 RPM:

4000 1/min

Spindle 2 power:

36 / 45 kW

Spindle 2 torque:

730 Nm

Spindle 2 max. bar diameter:

90

c-axis:

0,001 °

Travel turret 2 x:

225 mm

Travel Turret 2 z:

1595 mm

RPM of rotary tools turret 2:

4000 1/min

no. of tools in turret 2:

12 VDI 40

high-pressure pump:

20 bar

total power requirement:

110 kVA

weight of the machine ca.:

24 t

dimensions of the machine ca.:

9,3 x 4,6 x 3,1 m

Accerories

Chip conveyor



Automatic door



Description

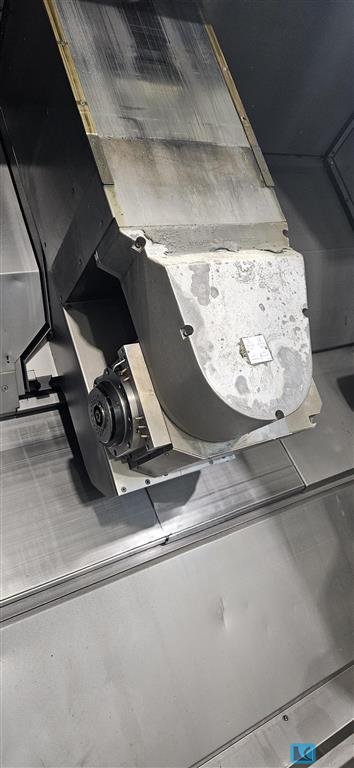

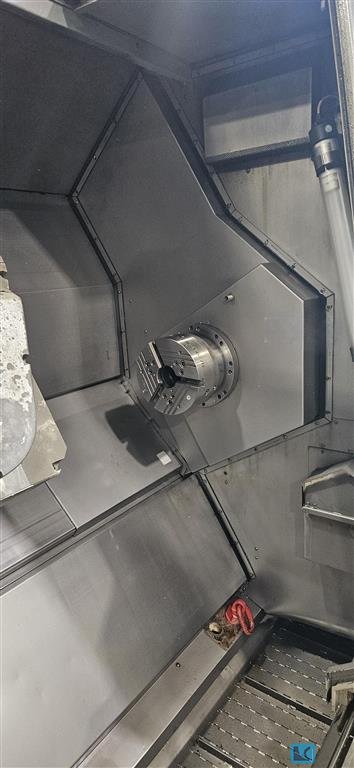

High performance turning and milling center with milling head (X, Y, Z, B-Axis), tool magazine with 120 pos. HSK-A 63.
Excellent for manufacturing excentric parts.
Coolant system with 1000 l tank and coolant system 4 kW.
Both spindles have differencial pressure clamping system
Steayrest for lower turret dia 8-101 mm.

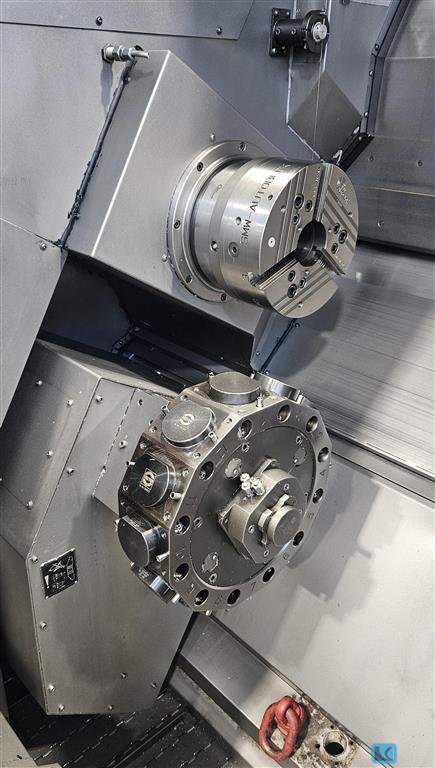

Parts gripper for turret No. 2 with 3-jaw chuck for parts with max. dia. 140 mm.
Conveyor belt for finished parts.
Preparation for 3D-probe
Toolmonitor Artis
Machine can be shown under power.
