Details

x-travel:

1600 mm

y-travel:

760 mm

z-travel:

760 mm

table-size:

1800x760 mm

max. table load:

1500 kg

T-slot (width-distance-quantity):

18x125x5 mm

distance spindle center to column:

780 mm

distance spindle center to table:

100-860 mm

rapid traverse in x-y-z axis:

20/20/20 m

milling feed range:

1-10.000 mm/min

10000 1/min

spindle drive:

15/20.4 kW

positioning accuracy:

+/- 0,012 mm

repeating accuracy:

+/- 0,010 mm

tool taper:

50 BT

max. tool weight:

20 kg

tool length:

350 mm

Tool diameter:

opt. 110/200 (angrenzend leer)) mm

dimensions:

4500x4300x3350 mm

weight of the machine ca.:

13,5 t

total power requirement:

40 kva

Accerories

CNC controller:

FANUC 0I MF plus

complete cooling system



24 station arm type tool magazine and 24 sets pull



rigid tapping



chip conveyor with chip bucket



water gun





heat exchanger



automatic lubrication system



CE-design



technical documentation in German language



pneumatic unit



Spindle oil cooler



Cutting air blast



Automatically power off



MPG hand wheel



signal lamp



Description

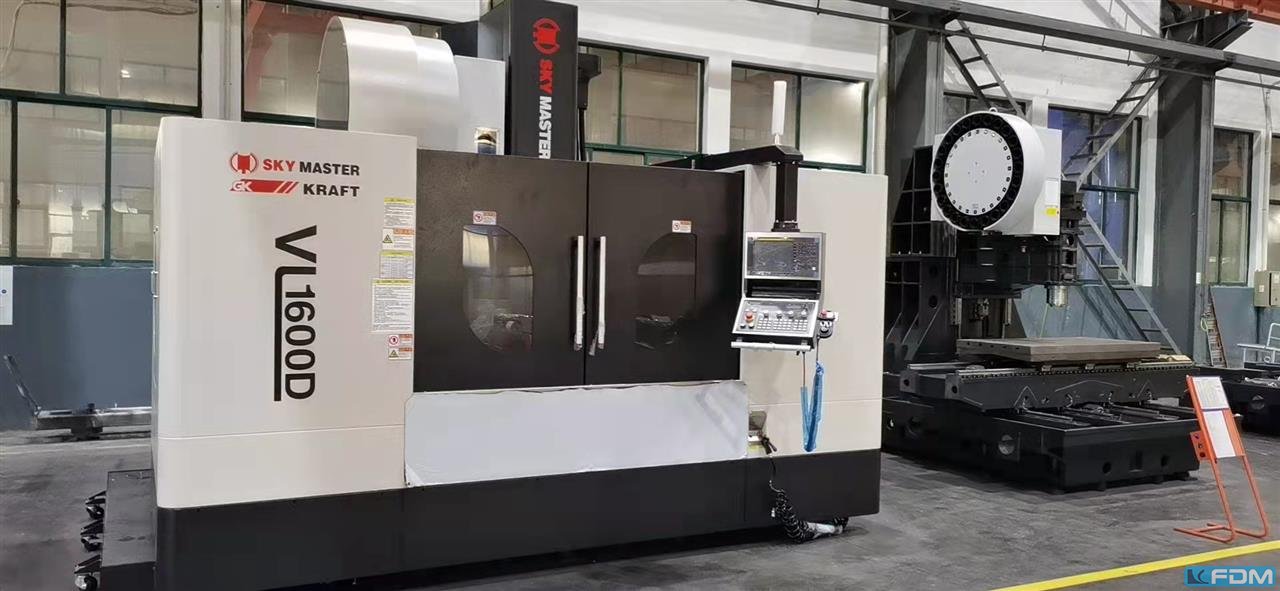

Brand-new CNC vertical machining center with CNC control Siemens 828D with Shopmill.

Incl. the following standard accessories:

CNC control Siemens 828D with SHOPMILL including 2-year warranty
1 piece coolant system
1 piece automatic 20-fold tool changer (Model VL-700), Type „ARM TYPE ATC“
1 piece automatic 24-fold tool changer (Model VL-900, VL-1100, VB-1000, VB-1200, VB-1600), Type „ARM TYPE ATC“
1 piece Halogen Machine Lamp
1 piece alarm / indicator lamp
rigid tapping
1 set of tools
1 piece chip conveyor (chain)
1 piece tool set (water gun, air gun)
1 set foundation blocks and fixture screws
heat exchanger for electric cabinet
automatic lubrication system
full enclosure guard
automatic power off
Spindle speed of 8000 U / min (Model VL-700, VL-900, VL-1100, VB-1000)
Spindle speed of 6000 U / min (Model VB-1200, VB-1600)
linear guide (VL-Serie) from THK or Rexroth
1 set of operating manual with spare parts list in German language
400V, 50cps, 3 phs
CE version incl. CE Declaration of Conformity
belt drive with 10.000 U/min
door interlock
8,4” Screen
spindle chiller
coolant through spindle center
tool setter (Blum)

Warranty: 12 months

More information can be found in the Appendix.

linear scales
CNC controls from
tool measuring system
workpiece measurement system
CNC-rotary table
4th5th axis
