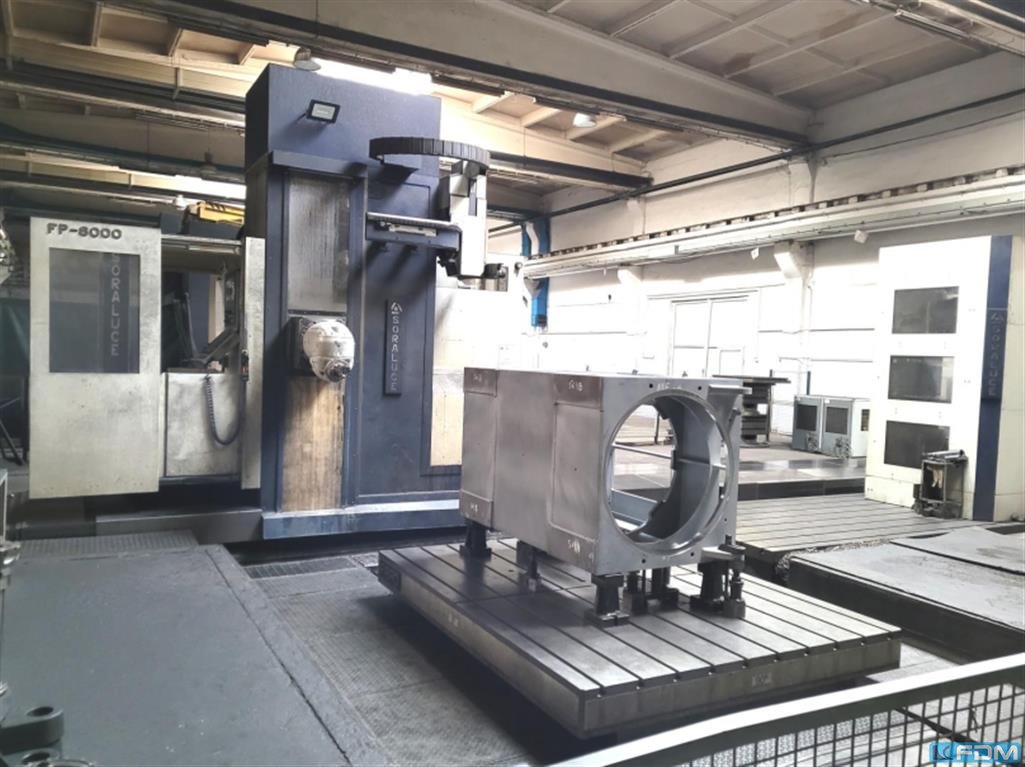

Milling machines - Travelling column milling machine - SORALUCE FP 8000

Travelling column milling machine


Stock number:
Year / Condition:
Control unit:
Country of origin:
Freight basis:
Item location:
ex stock
Delivery time:
immediatly available

Picture / documents / videos

Technical specs


8.000 mm
1.500 mm
2.600 mm
NC –Rotary sliding table, Fabr. FIBRO:
clamping surface :
3.000 x 2.500 mm
V-Axis (translational movement):
2.000 mm
max. workpiece weight:
40.000 kg
clamping table:
- mm
clamping surface :
4.500 x 2.000 mm
max. workpiece weight:
10.000  kg/m²
X-, Y- and Z-axis, stepless:
2 - 20.000  mm/min
rapid in X / Y / Z:
35 m/min
Orthogonal Milling head H41:
swivelling area front/back level:
1°/1° 360 x 1°/ +/- 135° °
power 100% ED:
32 kW
Speed, stepless:
40 - 4.000 1/min
max. torque:
900 Nm
tool taper:
SK 50 – DIN 69871-AD
Fixed spindle extension :
length :
950 mm
manual tool change:
Werkzeugklemmung automatisch
Speed, stepless:
40 - 4.000 min-1
tool taper:
SK 50 – DIN 69871-AD
Spindle extension suitable for finishing works:
Boring and facing head D'Andrea, UT5:
Electronic boring and facing head, mod. UT5-630:
which is controlled by the U axis of the machine. :
Use for boring and drilling, threading, radius production :
radius production by interpolation with other axes of the machine.:
Diameter of the faceplate, lateral flattened:
630 mm
stroke tool slide:
200 mm
max. boring diameter :
1.250 mm
max. speed:
250 mm
max. feed power:
500 daN
Automatic Tool Changer ATC:
Number of tool places :
40 Plätze
diameter of tools max.:
125/250 mm
workpiece length:
400 mm
weight of tools max.:
20 kg
Changing positions:
electrical supply data:
Total power:
80 kW
3 x 400 V
operating frequency:
50 Hz
current intensivity:
144 A
Measurement, weight:
- m
Machine footprint :
14,5 x 6,0  m
Total Machine height:
ca. 4,90 m
weight of the machine ca.:
40.000 kg


Guideways, drive and measuring systems
· All axis drives with digital drives Fabr. HEIDENHAIN · Direct measuring systems for X, Y and Z axes Fabr. HEIDENHAIN · X-, Y- and Z-axis guidance by means of high-precision linear guides for maximum precision and dynamics · Precision ball screws with preloaded nuts in X, Y and Z axes

Coolant system with chip conveyor
· Coolant outlet at the front of the milling head via manually swiveling nozzles. · Internal coolant supply through the spindle center · Tank volume approx. 1,500 l · Normal coolant supply 25 l/min 5 bar · High pressure pump for internal coolant 20 l/min 15 bar · Coolant tank incl. magnetic separator and paper belt filter · Hinged belt chip conveyor along the X - axis of the machine, · 1 cross conveyor on the right side
Equipment and Accessories
· Machine bed, column and vertical saddle as cast iron construction, heat-treated for stress-relieve · Milling slide as cast iron construction, heat-treated for stress-relieve · Universal milling head, positioning via Hirth toothing, front plane 1°, rear plane 1° - changeable automatically *Milling head was overhauled by the manufacturer* · Facing head D'Andrea UT 5 - changeable automatically · spindle extension L = 950 mm - changeable automatically · oil cooling unit for cooling of milling spindle motor and milling head · spindle drive 32 kW · spindle speed max. 4.000 min-1 · Axis drives by means of precision ball screw spindles and digital servo motors · 3-D measuring touch probe system with radio transmission · CNC control HEIDENHAIN iTNC 530 incl. digital drive technology · Portable electric handwheel HEIDENHAIN HR 410 · Travelling operator platform · Automatic tool changer with 40 magazine positions, change position horizontal/vertical · Coolant system with external shower ring and IKZ through the spindle, magnetic separator and paper belt filter · 1 pc. chip conveyor lengthwise in the working area, 1 pcs. cross conveyor on the right side · Precision linear guides in all axes · Precision ball screws in all axes · Direct measuring system in all axes · Hydraulic counterbalance in the vertical axis · Telescopic steel cover of the X-axis · Milling slides closed at the top and bottom of the vertical axis with rolling belts · FIBRO rotary transfer table, clamping surface 3.000 x 2.500 mm, · max. 40.000 kg workpiece weight. · 1 pc. panel field 4.500 x 2.000 x 300 mm · 1 pc. pick-up station for automatic milling head change. Milling head, spindle extension and D'Andrea facing head are automatically changed in and out via CNC program · Air conditioning for electrical cabinet · hydraulic system · workspace lighting · Painting RAL 7035 grey white/RAL 5011 steel blue · Operating hours: Machine ON approx. 31,000 h, program run approx. 12,000 h
