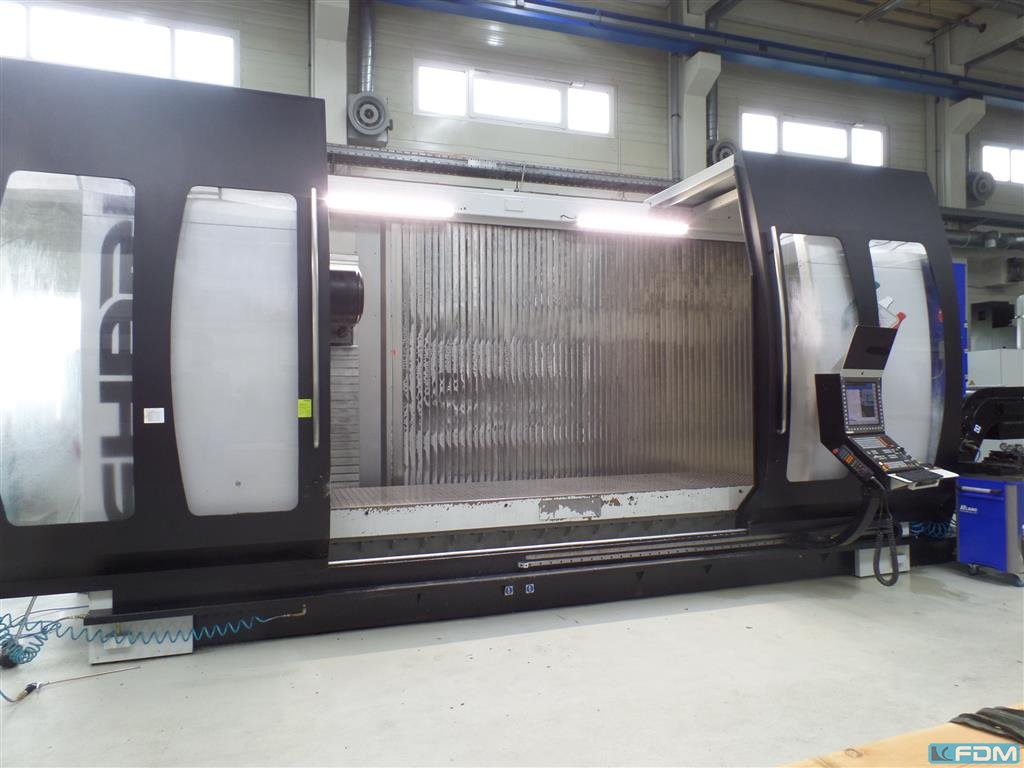

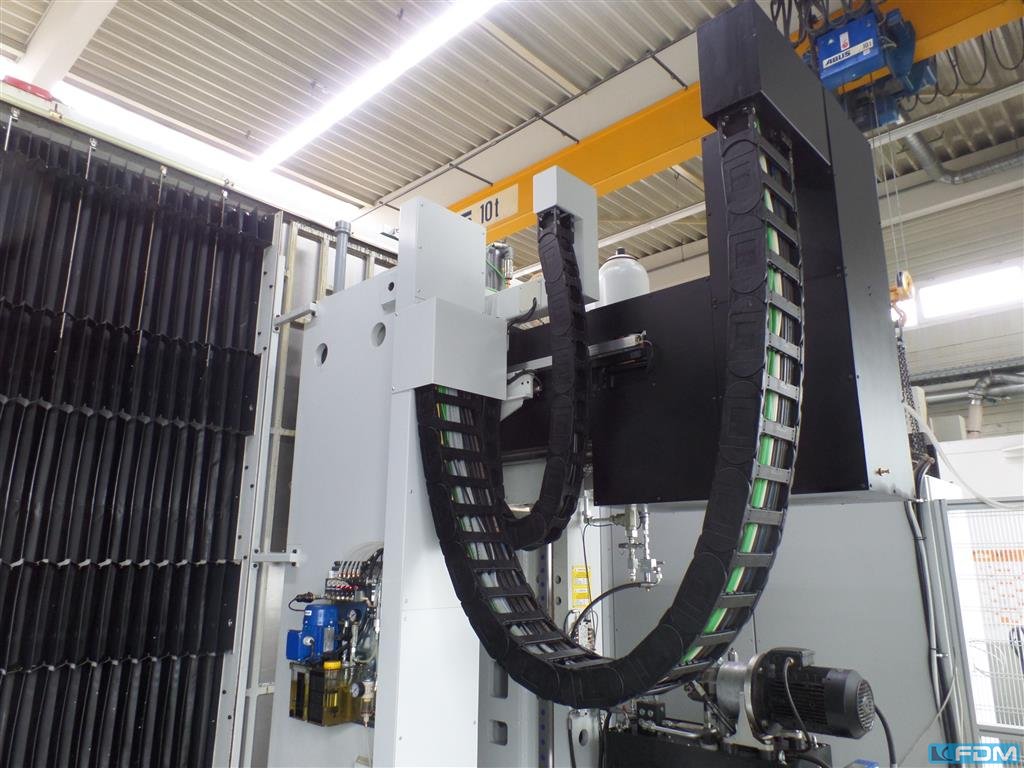

Details

x-travel:

3.500 mm

y-travel:

1.083 mm

z-travel:

1.074 mm

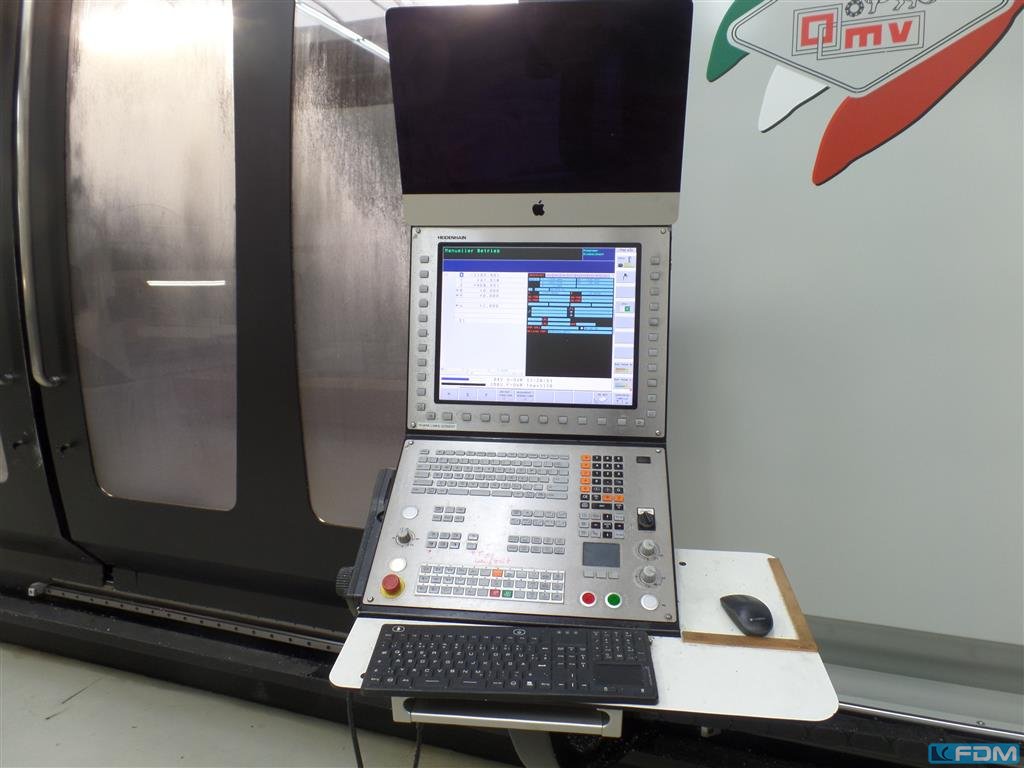

cnc control :

HEIDENHAIN iTNC 530 HSCI

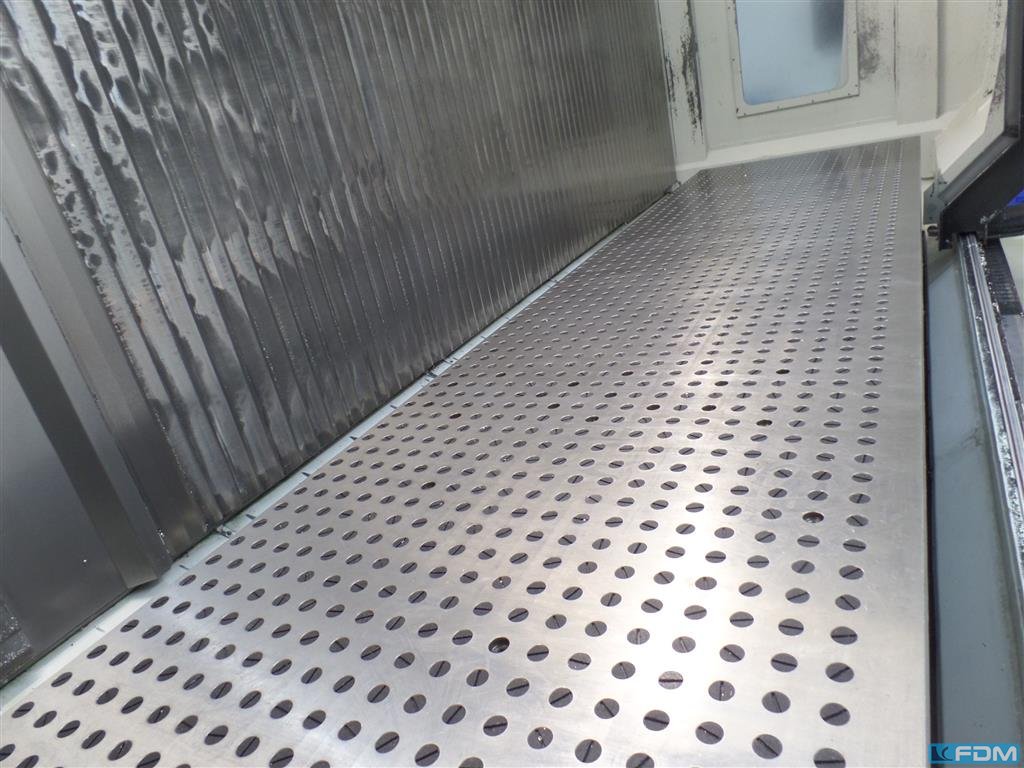

clamping table:

-

clamping surface :

4.000 x 1.000  mm

Thread bore with fitting:

-

feeds::

-

X-, Y- and Z-axis, stepless:

2- 30.000 mm/min

rapid in X / Y / Z:

30  m/min

Max. feed force of axis:

10.000 N

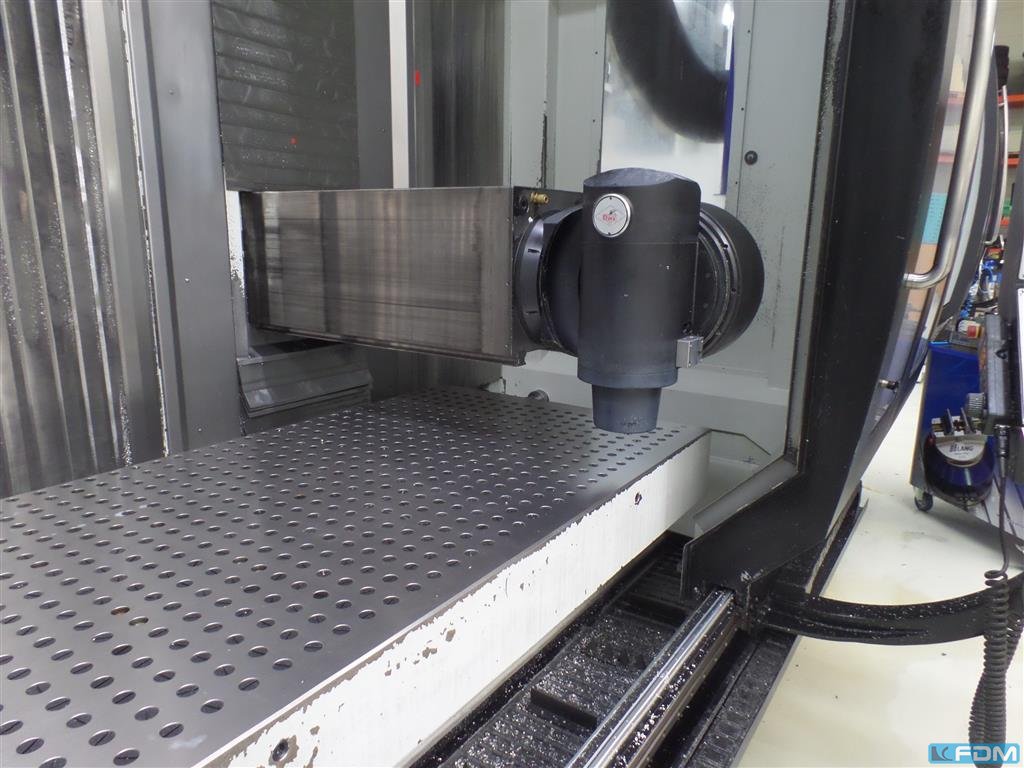

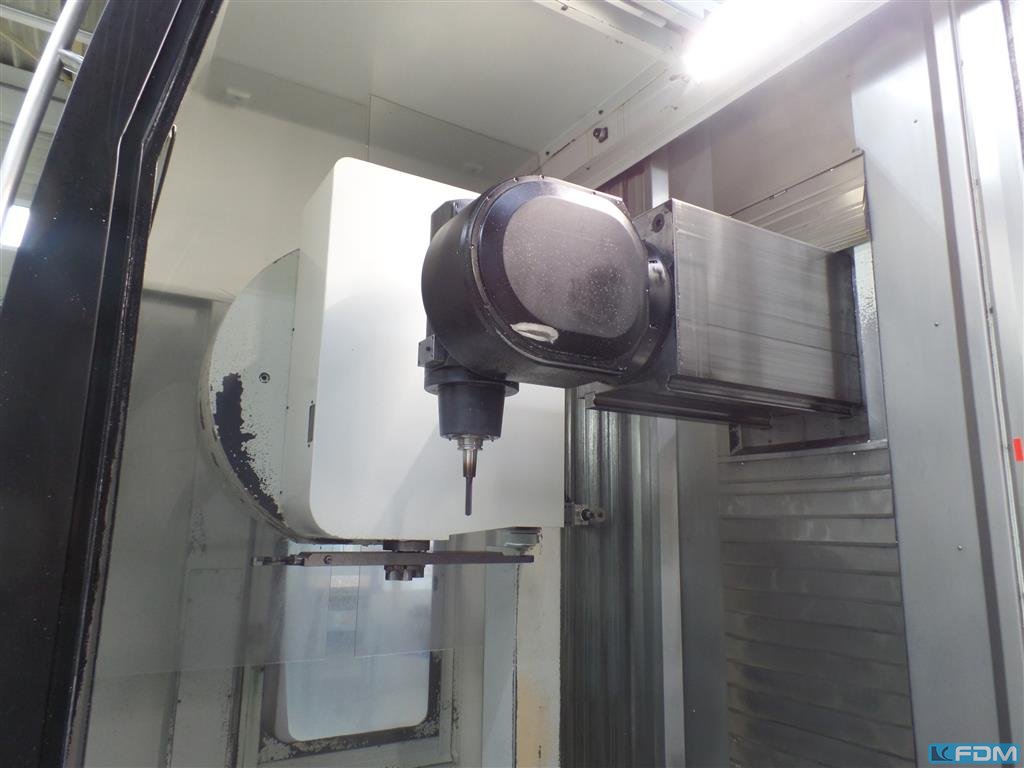

2-axis milling head TUB-E92 with power on Torque-Motors :

-

power 100% ED:

29 kW

Speed, stepless:

0-18.000 1/min

max. torque:

92 Nm

Turning speed axis A/C:

60 min-1

tool taper :

HSK 63A – DIN 69893

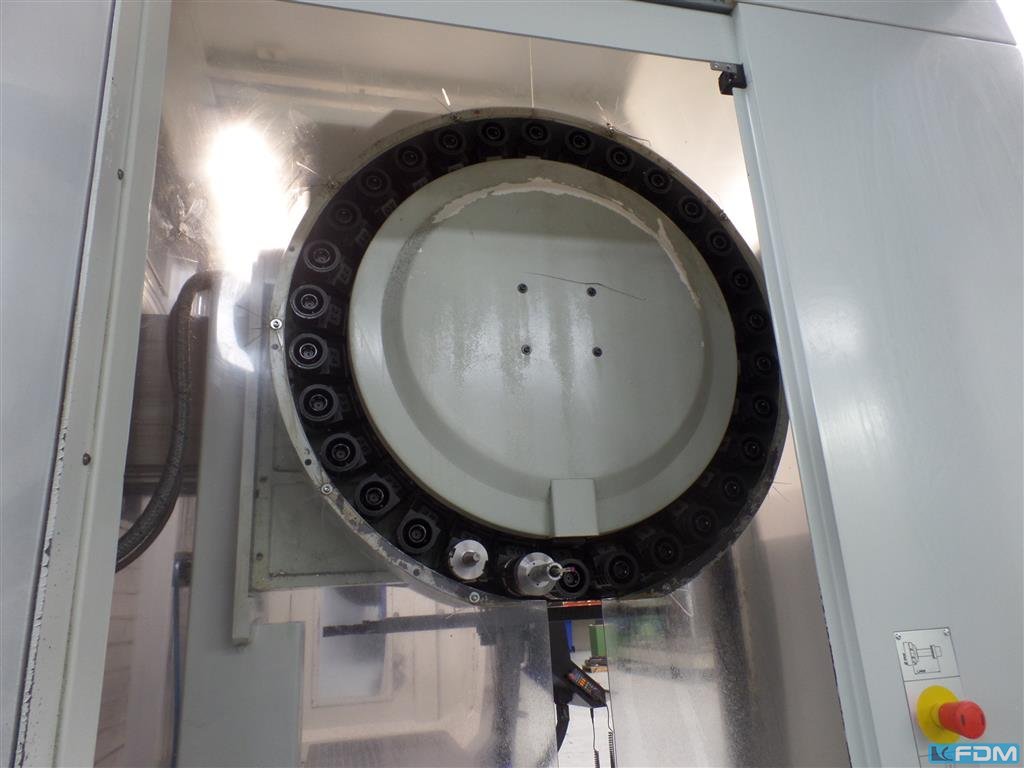

Automatic Tool Changer ATC:

-

numbers of tools in magazin:

30

diameter of tools max.:

90 mm

workpiece length:

320 mm

workpiece weight max.:

8 kg

Changing positions:

vertikal

total power requirement:

29 kW

weight of the machine ca.:

28 t

dimensions of the machine ca.:

8,3 x 6,7 x 3,6  m

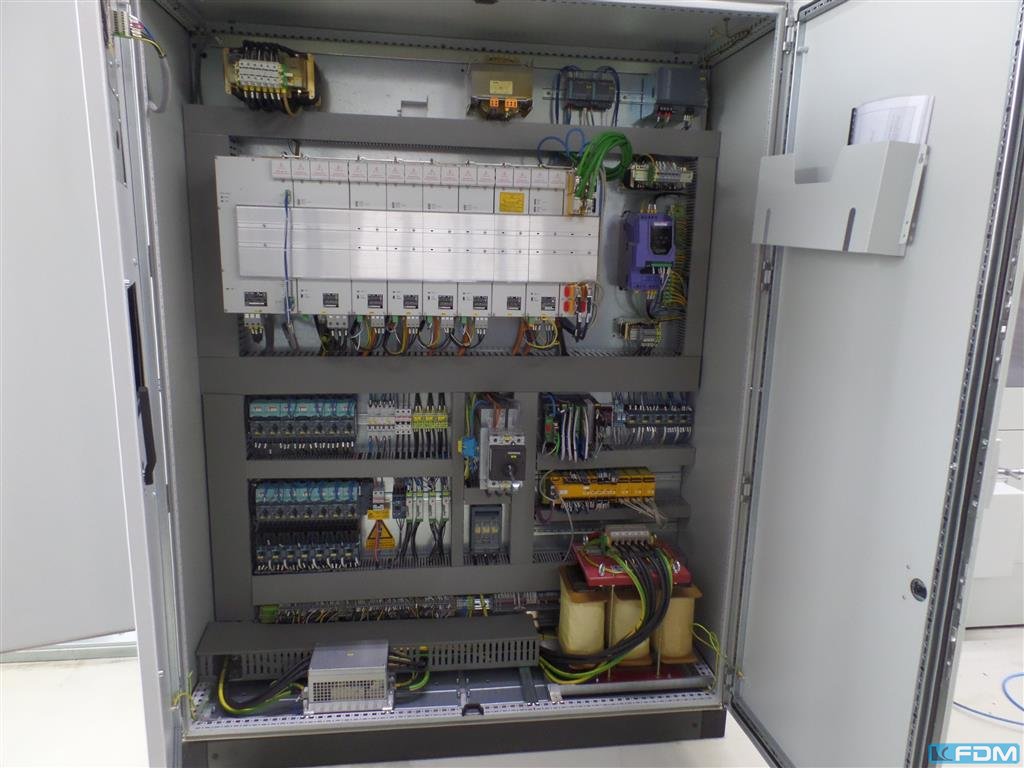

electrical supply data:

-

Electric capacity:

120 A

voltage:

400 V

operating frequency:

50 Hz

Accerories

electrionical hand wheel



coolant equipment with chip conveyor
