Details

Saw blade diameter:

400 mm

cutting diameter:

140 mm

hole of sawblade:

50 mm

saw blade rpm:

6 / 12 / 24 / 48 U/min

cutting range 90 degrees: round:

Ø 140 mm

cutting range 90 degrees: square:

130 x 130 mm

cutting range 90 degrees: flat:

370 x 30 / 315 x 70 / 265 x 95 mm

Table dimensions:

Ø 700 mm

table rotating:

360 Grad

clamping capacity:

8 - 30 bar

electrics - voltage/frequency:

400 / 50 V/Hz

air-pressure connection:

6 - 8 bar

total power requirement:

3,6 kW

weight of the machine approx.:

1170 kg

dimensions of machine:

T: 1,5 x B: 1,0 x H: 2,35 m

Description

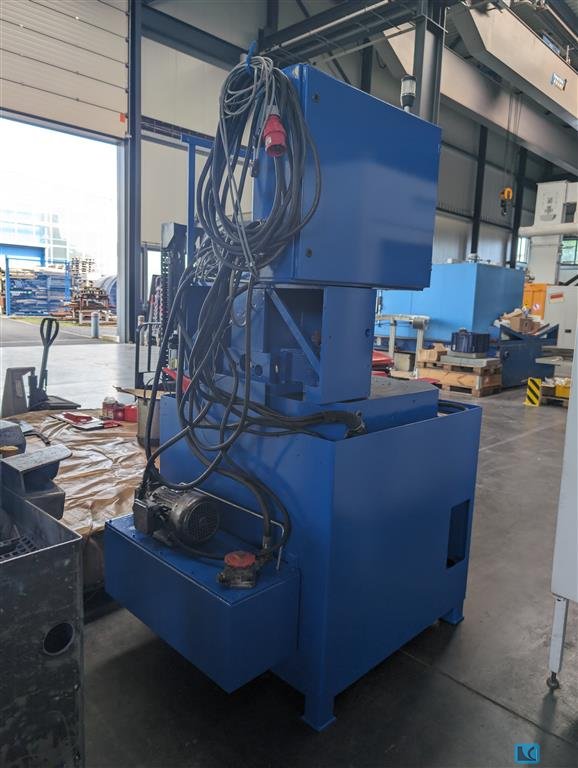

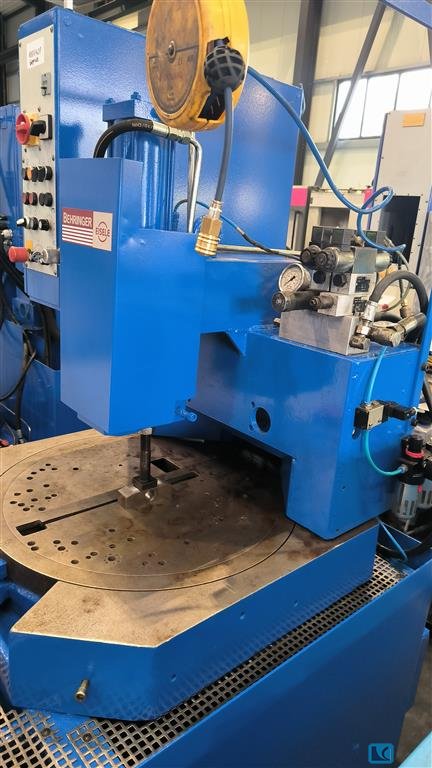

SEMI-AUTOMATIC CIRCULAR SAW - PROFILE CIRCULAR SAWING MACHINE

Profile circular saw with two-hand control (underfloor saw)
for sawing materials: steel as solid material, pipes and profiles, taking into account the cutting area.
Cutting speed depends on the material to be sawn
Mitre cut 30° to 90°
Operation Control panel and two-hand operation
Material clamping (opening width) adjustable with return stroke
Saw blade feed speed adjustable
Without coolant system
