Details

Saw blade diameter:

450 mm

cutting diameter:

150 mm

hole of sawblade:

50 mm

saw blade diameter:

400 - 450 mm

saw blade rpm:

6 / 12 / 24 / 45 U/min

cutting range 90 degrees: square:

140 x 140 mm

cutting range 90 degrees: round:

150 mm

cutting range 90 degrees: flat:

400 x 30 / 345 x 70 / 300 x 95 mm

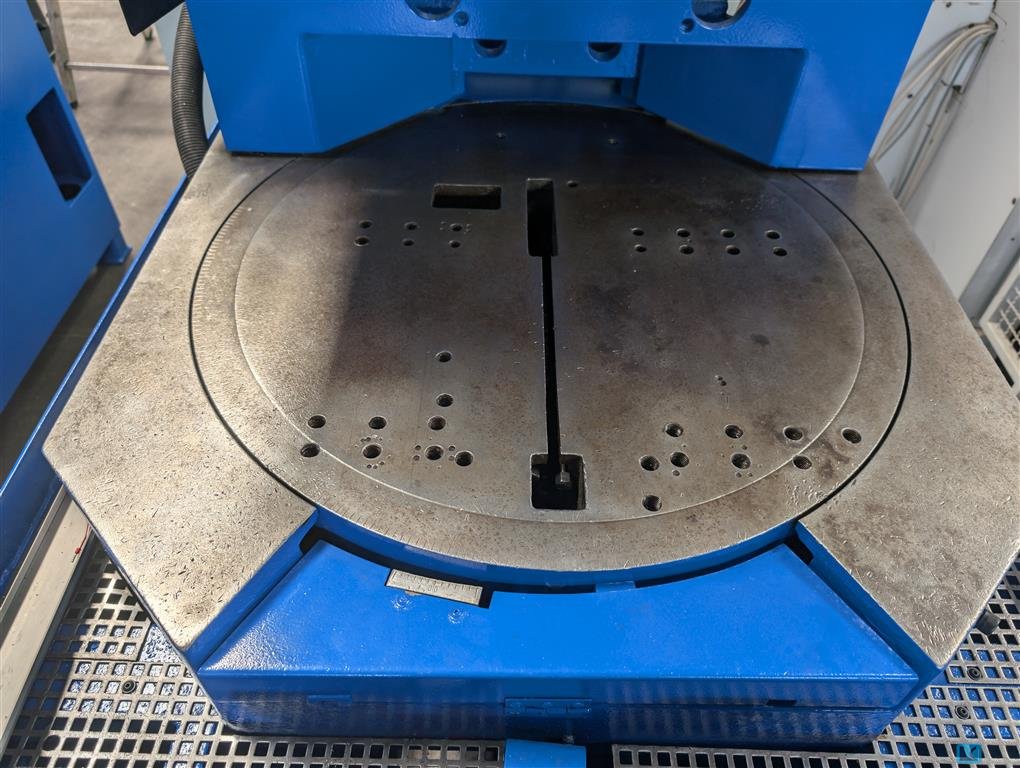

table-size:

Ø 700 mm

table rotating:

360 Grad

clamping capacity:

30 bar

electrics - voltage/frequency:

400 / 50 V/Hz

total power requirement:

3,6 kW

weight of the machine approx.:

1600 kg

dimensions of machine:

1,5 x 1,0 x 2,35 m

Description

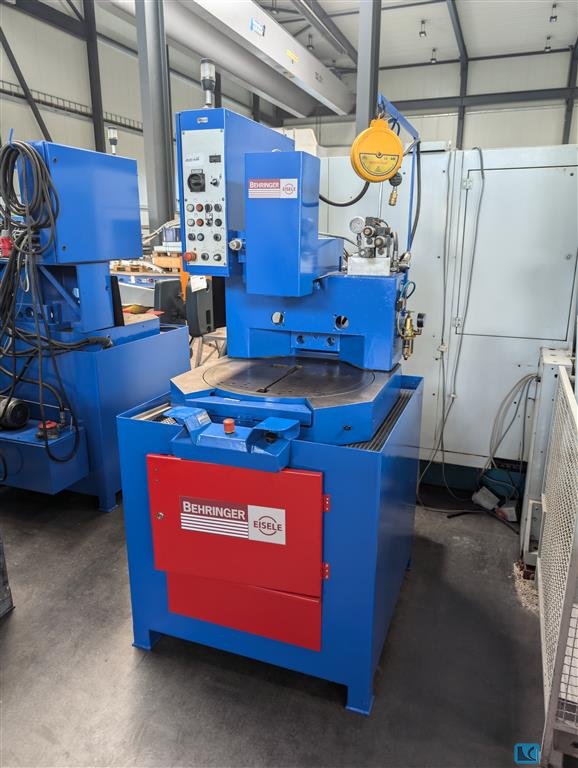

SEMI-AUTOMATIC CIRCULAR SAW - PROFILE CIRCULAR SAWING MACHINE - UNDERFLOOR SAW
for sawing materials: steel as solid material, pipes and profiles, taking into account the cutting area.
Cutting speed depends on the material to be sawn

Circular saw with hydraulic material clamping (clamping pressure adjustable)
miter +30° to - 90°

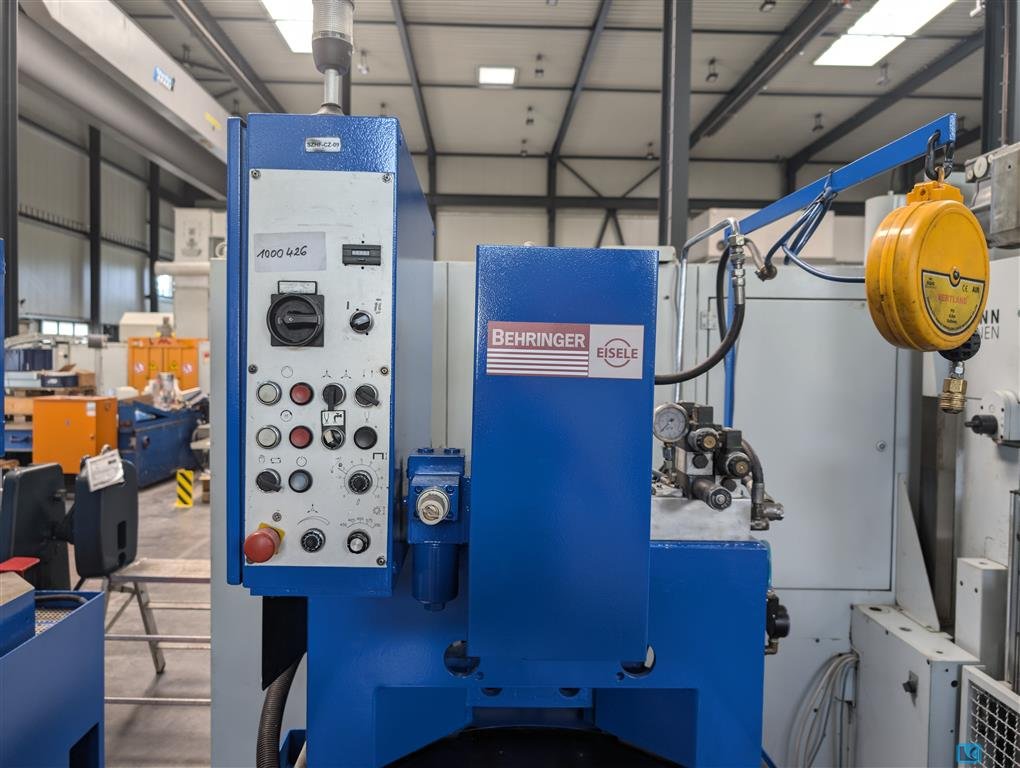

Equipped with electro-hydraulic control
Hydraulic pump 2.2 kW; 23 l/min.
Coolant system integrated in the machine base
Piece counter
