Details

batch weight:

-

total volume:

600 l

external diameter:

1682 mm

Effective volume:

415 l

revolution per minute:

1000 - 1500 U/min

total power requirement:

4 kW

weight of the machine ca.:

1600 kg

Machine height:

1404 mm

dimension machine approx.LxWxH:

2,5 x 2,0 x 2,2 m

Description

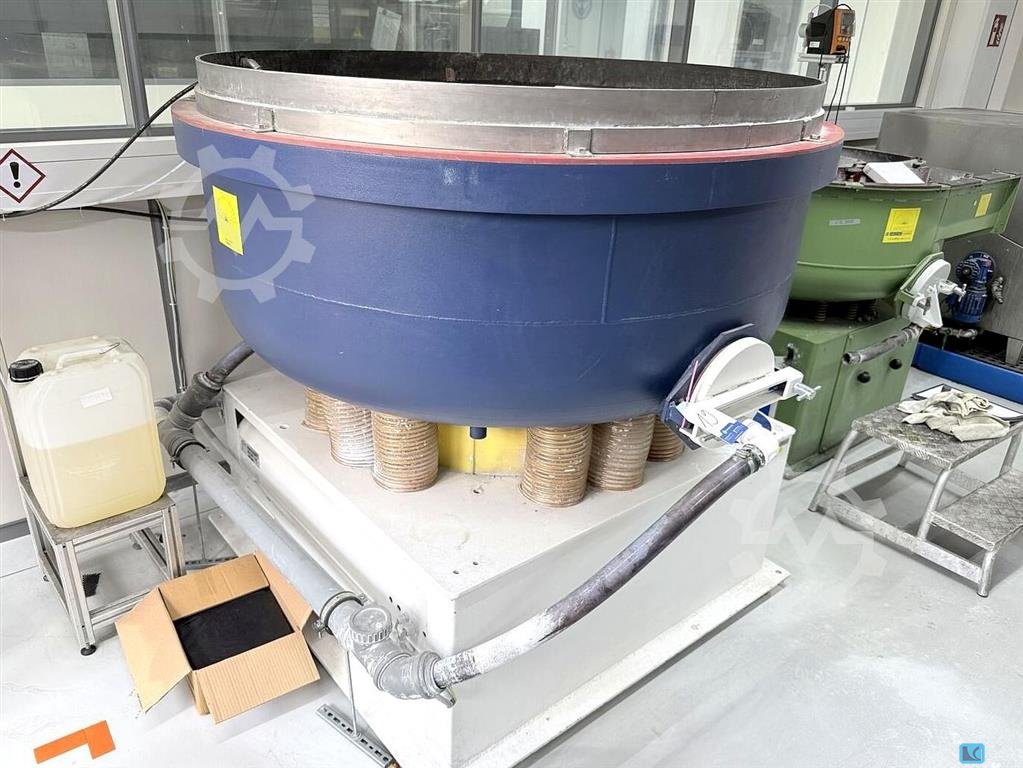

The Walther Trowal CM 605 is an industrial circular vibratory finishing machine from the Circlon series, designed for the surface treatment of metal and other suitable workpieces.
The machine is particularly suitable for deburring, edge rounding, coarse and fine grinding, degreasing, and polishing of workpieces.

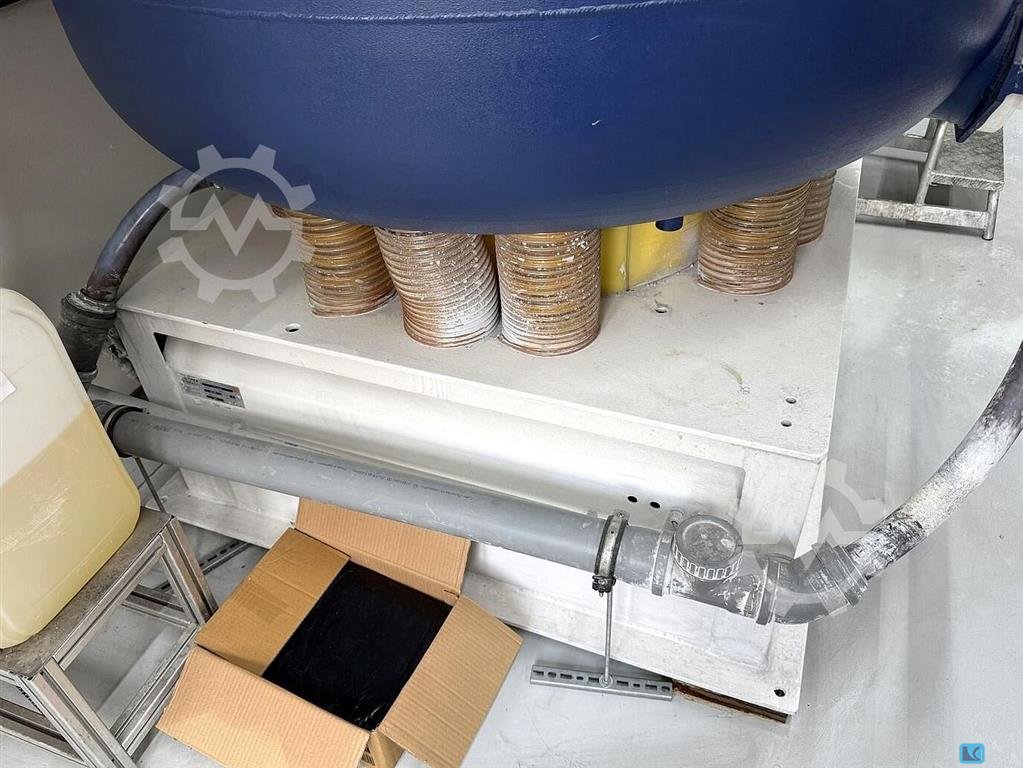

The finishing process takes place in a ring-shaped processing bowl lined with polyurethane. An unbalance motor generates vibrations, creating a uniform circulating movement of the grinding media and workpieces.

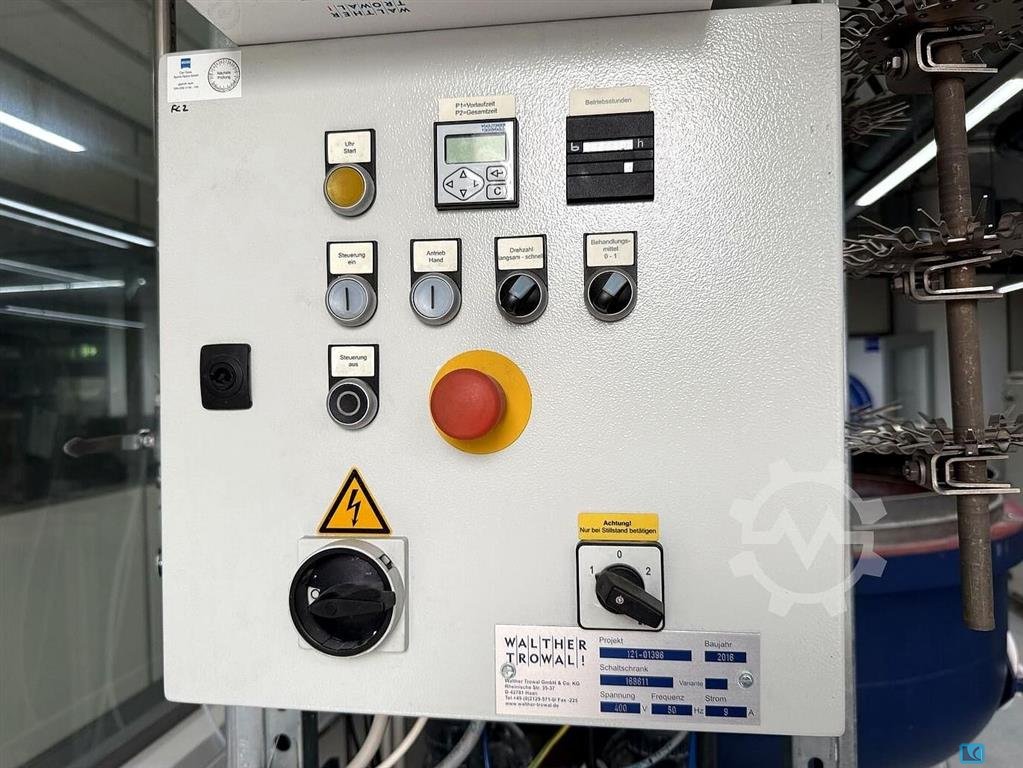

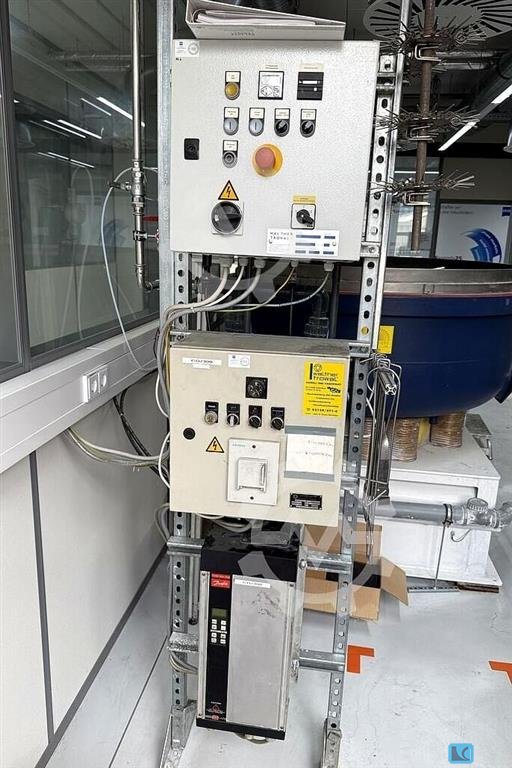

The machine is equipped with an electrical control system featuring manual operation, timed processing cycles, and two selectable drive speeds.
