Details

batch weight:

-

total volume:

600 l

external diameter:

1716 mm

Effective volume:

345 l

Work tank width:

1616 mm

max. workpiece size:

270 mm

revolution per minute:

980 - 1460 U/min

total power requirement:

6 kW

weight of the machine ca.:

1600 kg

dimension machine approx.LxWxH:

2,4 x 1,7 x 1,44 m

height:

3,42 m

Description

Aapplication area: deburring, grinding,radiusing, general parts cleaning, de-scaling, de-greasing and polishing of punched, cast, forged, forged and sawn parts as well as machined (cutting operation milling, turning etc.) parts.
For the application of sensitive small parts up to massive , robust big parts.

technical details:
- working tank width / height : 440/600mm

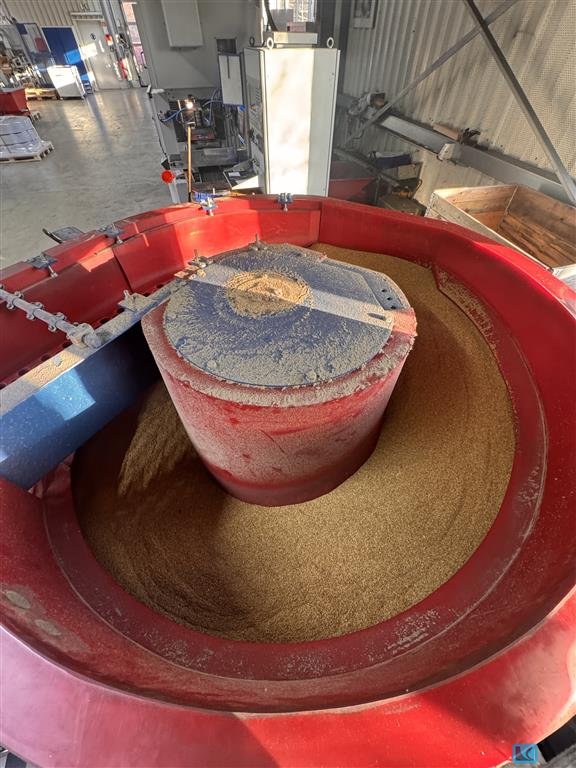

- abrasive body removal plug Ø 200mm, height 500mm
- with waste water run out on the bottom

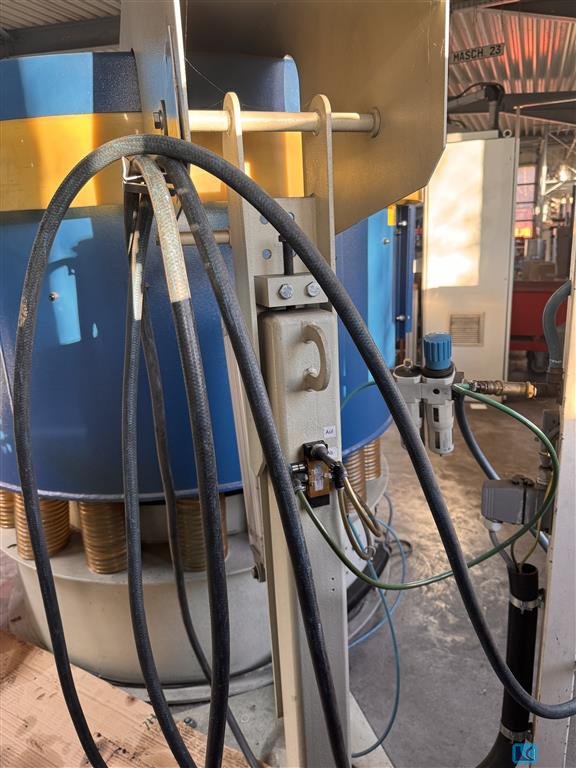

- air pressure and water connection in the upper part of the tank 2x 3/8 " with hose connection
- cover: open/close electric pneumatic , jib length arm 1200mm, cover Ø 1700 x 250mm (clamping plate in the picture not including delivery scope!)
- operational time pre adjustable
- without separator unit

equipment:

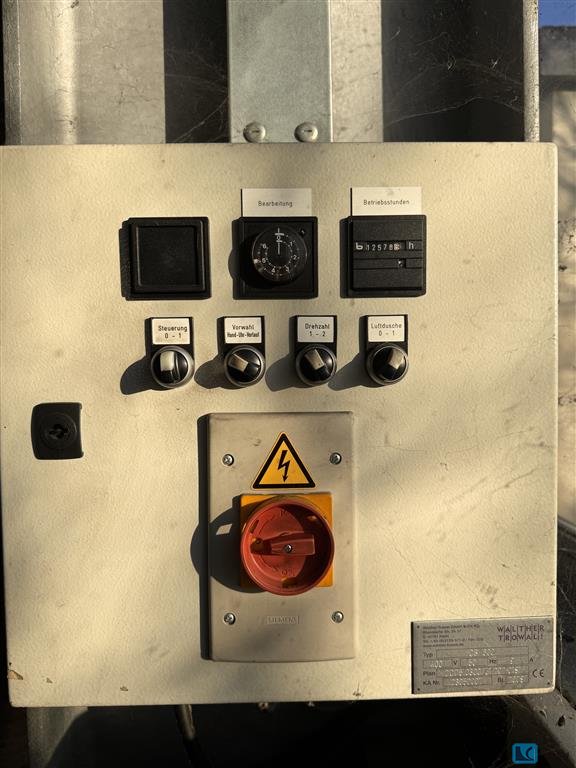

- control panel

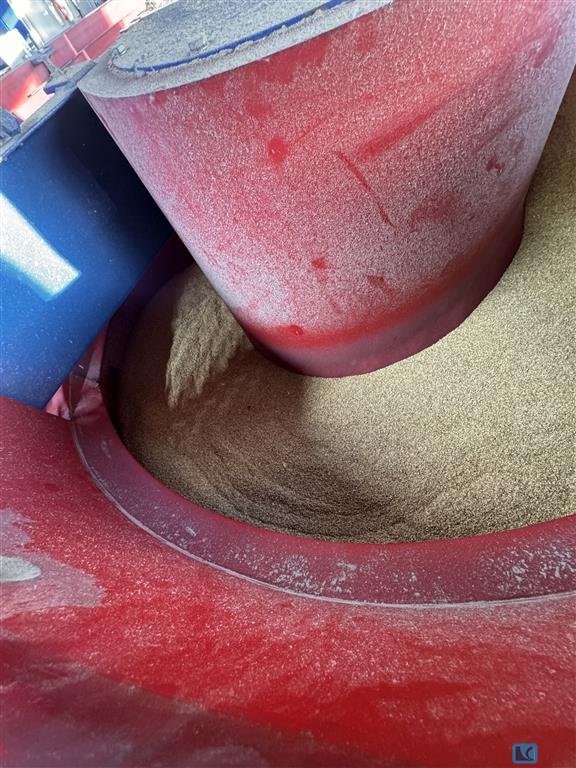

Internal space has been newly coated by a specialist.
Clamping plate is not included in the delivery scope.

Machine can be demonstrated under power.
i.D.
