Details

x-travel:

800 mm

y-travel:

950 mm

z-travel:

1020 mm

control:

Sinumerik 840D sl MDynamics Operate

turning speeds:

10.000 1/min

Spindle power:

26/20 kW

max. torque on the spindle:

340/262 Nm

tool taper:

HSK-A 100

tool change unit:

120 (2x60) Pos.

Pallet changer 2x:

630 x 630 mm

table load capacity:

800 kg

weight of the machine ca.:

20 t

dimensions of the machine ca.:

3,3 x 6,15 x 3,2 m

Description

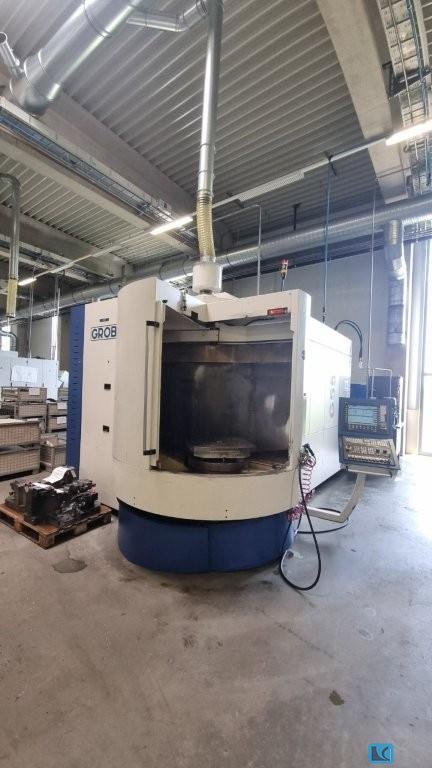

6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis),
Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don’t accumulate on pallet, they can fall free into the chip conveyor
CNC controlled U-axis enables radial movement of tool for variable spindling diamenter.
twin pallet changer 630 x 630 mm
6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis
special hydraulic pump for fixture
coolant through spindle (10-80bar), one channel with proportional valve for pressures 10-200 bar,
electromech. tool-length measuring device GROB,
BLUM laser for tool measuring,
tool coding,
chip conveyor,
3D touch probe M&H,
el. handwheel Siemens HT8
coolant gun,
coolant shower,
air gun,
oilskimmer,
automatic door
Remote diagnosis
A 6th axis MAPAL Tooltronic U-axis system comes with the machine with two heads:
1. LAT125-HSK100
2. LAT160-HSK100
