Details

x-travel:

1530 mm

y-travel:

530 mm

z-travel:

465 mm

side by side, right side fixed table X =:

925 mm

side by side left side 2 axis table X =:

780 mm

control:

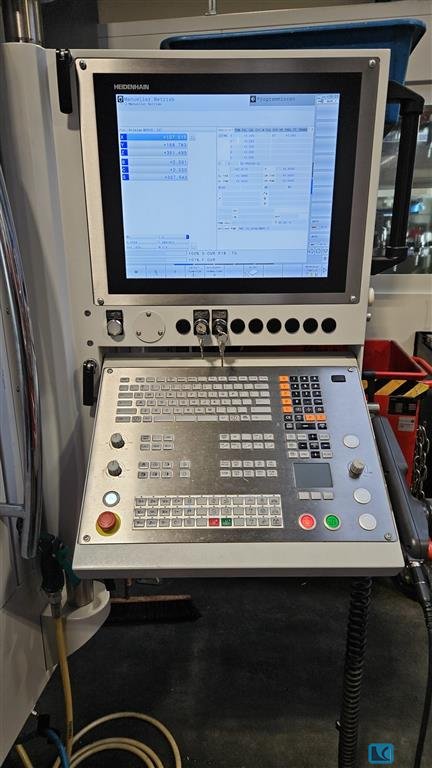

Heidenhain TNC 640

tool magazin::

122 SK 40

spindle turning speed - stepless:

12.000 1/min

Spindle Torque:

120 Nm

power capacity:

22 kW

Fixed Table Dimensions:

920 x 540 mm

Table load fixed table:

2000 kg

Max. parts size on fixed table:

900 x 500 x 400 mm

Diameter of integrated 2-axis rotary table:

650 mm

Table load rotary table:

500 kg

B-axis swivel angle:

-90°/+110° ° / deg

Max. parts size on rotary table:

600 x 500 x 400 mm

Max. Parts size over both tables:

1500 x 500 x 400 mm

internal coolant system feed:

70 bar bar

weight of the machine ca.:

10,5 t

dimensions of the machine ca.:

3,65 x 2,53 x 2,81 m

Accerories

pendant hand wheel:

HR 510 FS

Rotoclear window



Automatic machine switch off after prog. cycle end



Measuring probe for work piece:

Blum TC 52

Coolant gun



Description

The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new, in excelllent condition.
122 tool holdersr SK 40 come with the machine.
A special vice from Gressel for 5-axis machining for the rotary table also comes with the machine.
