Details

x-travel:

750 mm

y-travel:

600 mm

z-travel:

520 mm

table surface area:

D 700 x 500 mm

turning speeds:

30000 1/min

tool taper:

HSK E50

control:

HEIDENHAIN iTNC 530

tool change unit:

60 pos.

rapid traverse:

50 m/min

table load capacity - central/maximum:

350 kg

total power requirement:

50 kVA

weight of the machine ca.:

9 t

dimensions of the machine ca.:

3,2 x 2,65 x 2,8 m

Description

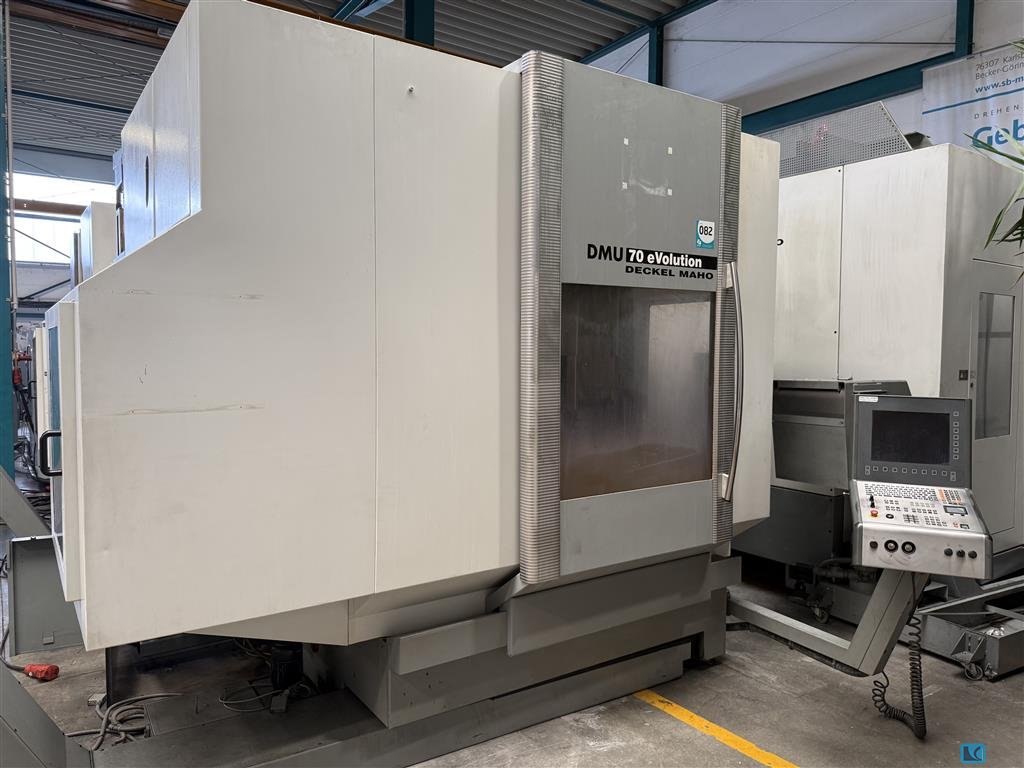

5-axis simultaneously HSC-machining center,
NC-round-swivelling table B-axis 180°, C-axis 360°,
chip conveyor,
prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe),
mode 4,
spindle chiller,
no internal coolant supply,

approx. 124.200 hours "machine on", approx. 60.600 hours "spindle on" in total
