Details

x-travel:

800 mm

y-travel:

700 mm

z-travel:

600 mm

table load capacity:

800 kg

control:

SIEMENS 840D shopmill

turning speeds:

12.000 1/min

tool adaptor:

HSK 63

rapid traverse:

50 m/min

tool change unit:

30 Pos.

electr. connected load with add. coolant:

56 kVA

weight of the machine ca.:

9,5 t

transport measurements machine:

4 x 2,5 x 2,75 m

Description

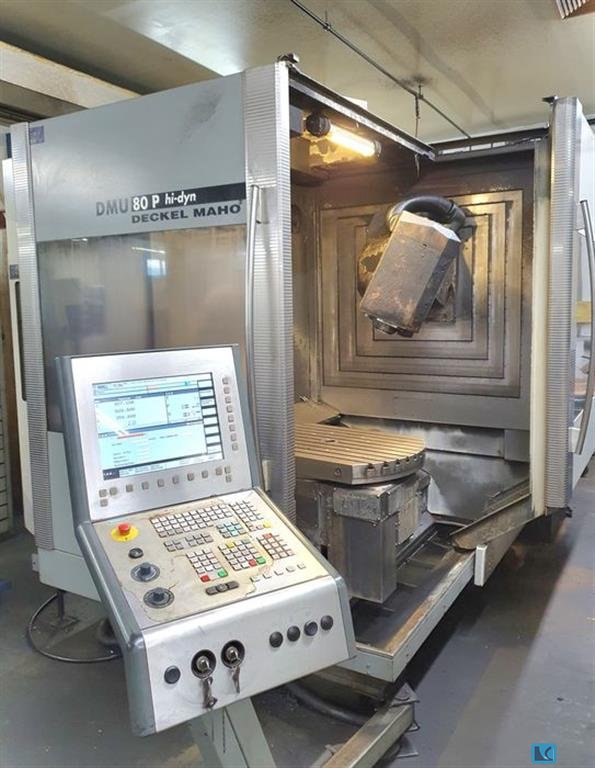

5 Axis simultaneously machining center,

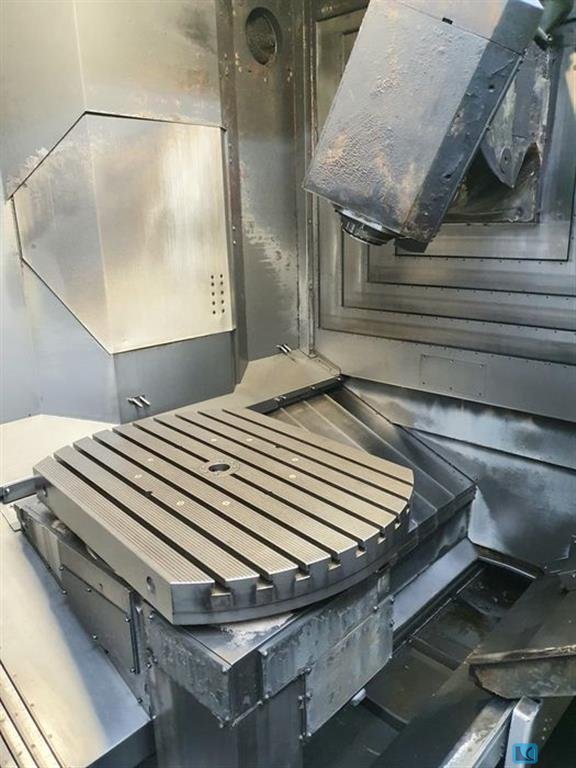

Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm,
internal cooling device 40 bar, 600l
prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe),
prepared for el. handwheel (without handwheel),
mode 4,


approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)
