Details

x-travel:

600 mm

y-travel:

500 mm

z-travel:

500 mm

turning speeds:

14.000 1/min

max. torque on the spindle:

100 / 74 Nm

tool taper:

SK 40

control:

HEIDENHAIN iTNC 530

tool change unit:

60 pos.

table surface area:

600 x 500 mm

table load:

400 kg

spindle:

19 / 15 kW

total power requirement:

27 kVA

weight of the machine ca.:

10 t

dimensions of the machine ca.:

3,5 x 2,97 x 2,8 m

Description

5- axis simultaneously machining center,
with round-swivelling table -5° to +110°,
C-axis 360°,
chipconveyor,
3D-touch probe,

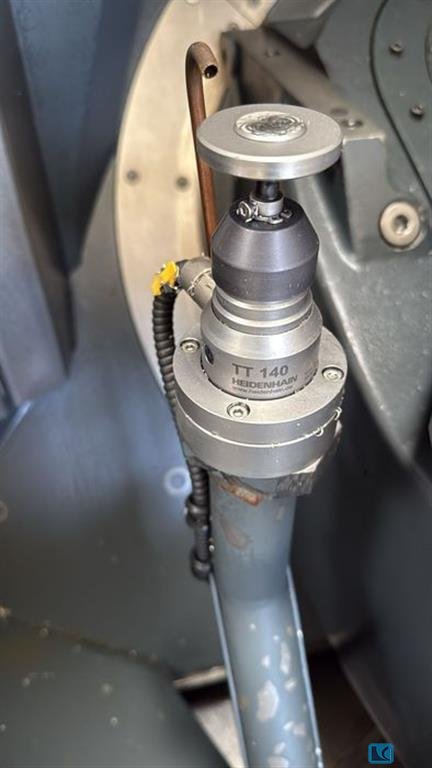

table touchprobe TT 140,

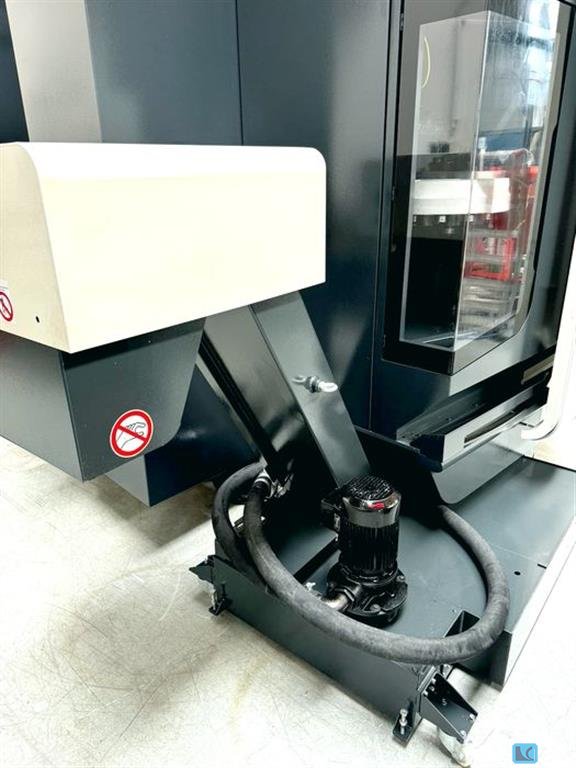

internal coolant supply 40bar,600 l,
oilmist suction,
mode 4,
el. handwheel,

approx 43.500h "machine on", approx. 22.500h "program run"
Spindle change in 2022
