Details

x-travel:

500 mm

y-travel:

450 mm

z-travel:

400 mm

turning speeds:

20 -10.000 1/min

control:

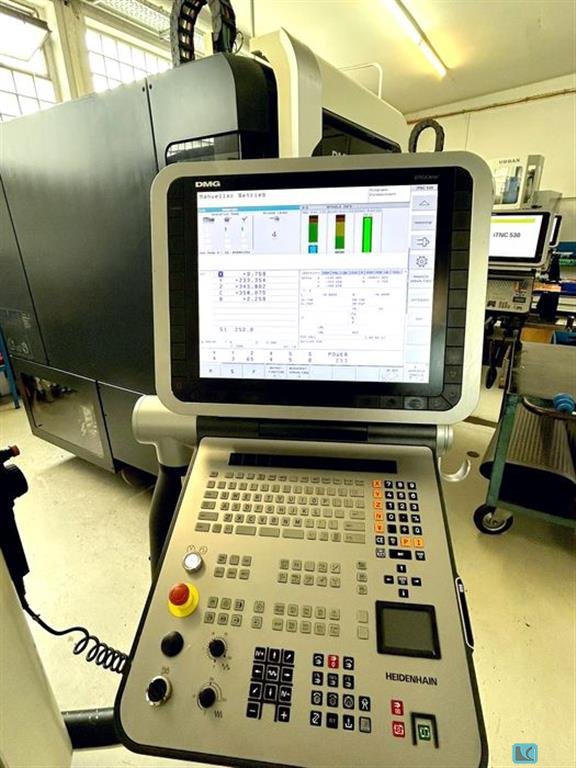

HEIDENHAIN iTNC 530 HSCI

tool change unit:

16 Pos.

tool taper:

SK 40

rapid traverse:

24 m/min

spindle:

13 / 9 kW

Round-swivelling table:

630 x 500 mm

table load:

200 kg

weight of the machine ca.:

4,5 t

dimensions of the machine ca.:

2 x 2,3 x 2,2 m

Description

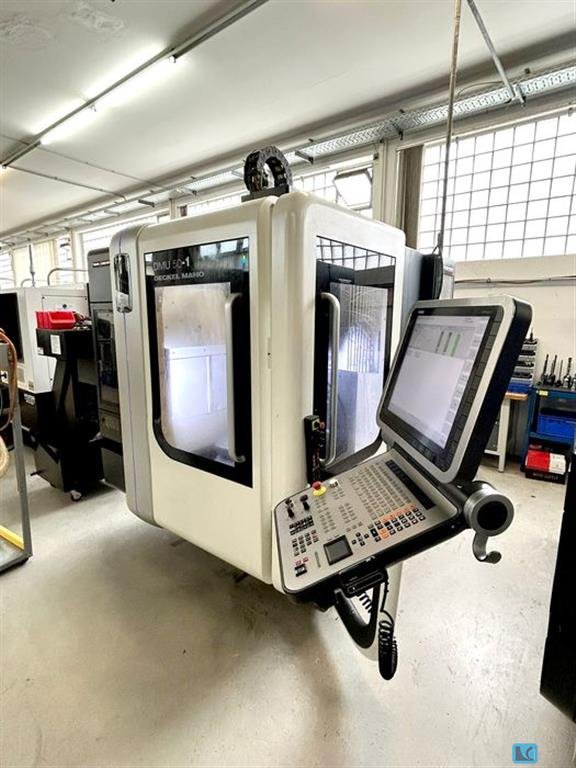

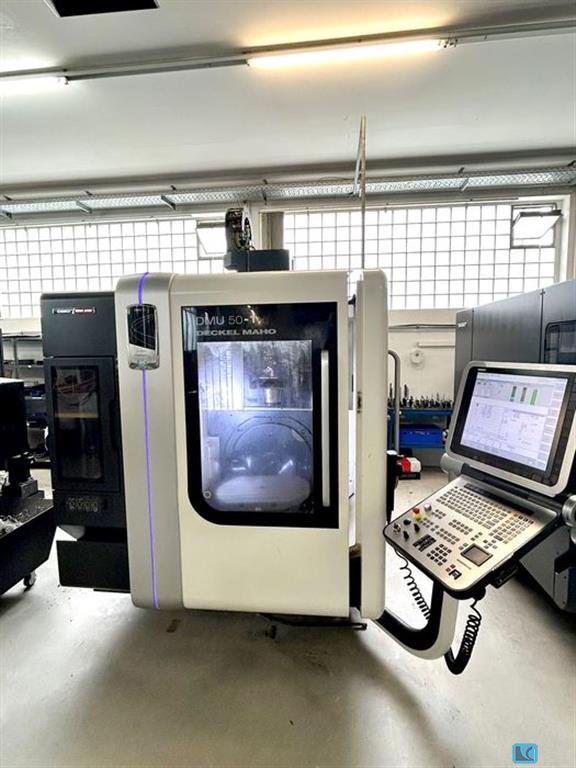

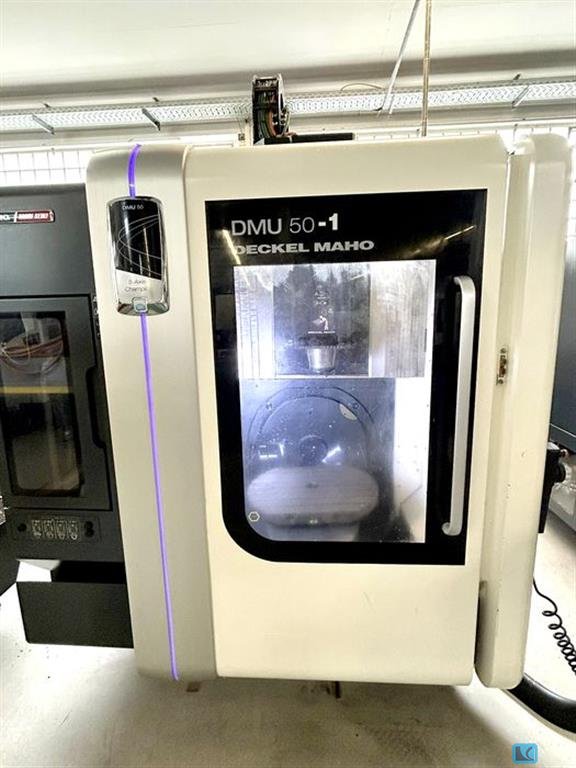

5-axis simultaneously machining center,

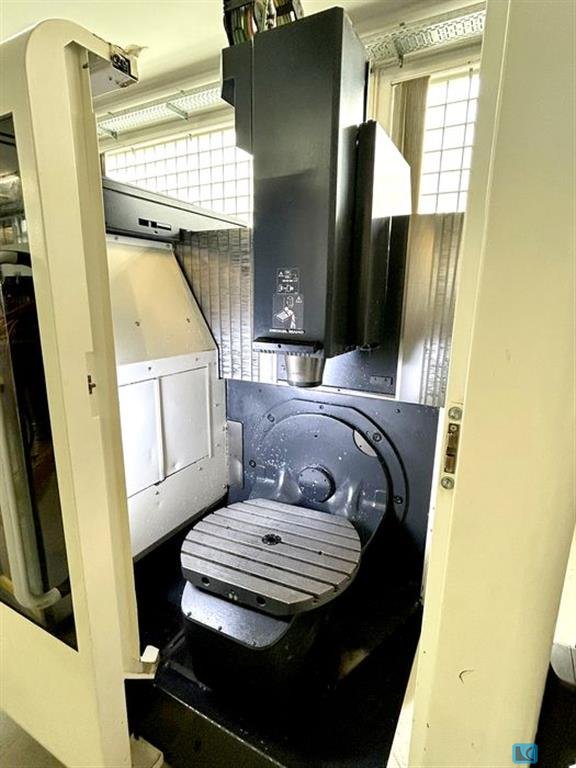

NC-round-swivelling table B -5 / +110°, C360°,
direct measuring system,
el. handwheel,
infrared touchprobe TS 649,
mode 4,
internal airblast,
2nd cabin-door,
3D quickset - software (no hardware),

approx. 44.000 h "machine on", approx. 10.000 h "spindle on"
