Details

x-travel:

800 mm

y-travel:

550 mm

z-travel:

500 mm

table surface area:

(B x T )1000x550 mm

spindle turning speed - stepless:

0 - 5000 U/min

feed speeds - directly programable:

2- 6000 mm/min

rapid traverse:

6,0 m/min

quill stroke:

80mm mm

Tool bore:

SK40

total power requirement:

12 kW

weight of the machine ca.:

3,9 t

dimensions of the machine ca.:

(LxBxH) 2200x2800x2400 mmxmmxmm

Description

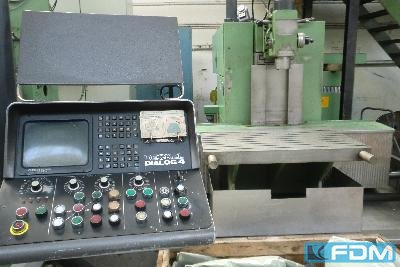

Deckel FP5 NC Universal Milling Machines - CNC

- Swivelable left or right) 90 ° & Tilting Vertical Spilndle Head
- Rigid Fixed Table: 1100 x 550 mm (Max. Load 450 kg)
- High RPM on Both vertical and Horizontal Spindles
- Powerful 9,0 kw AC drives for Main Spindle
- Equipped with Electronic handwheel and handheld rapid travel attachement
- Dialog 4 - 3D Path Control System.
- Seperate Power cabin, Chip tray
