Details

x-travel:

930 mm

y-travel:

400 mm

z-travel:

406 mm

turning speeds:

9-6750 1/min

table::

1370 x 254

quill stroke:

127 mm

quill feed:

(3) 0,04; 0,08; 0,15 mm/U

bore capacity in steel:

32 mm

feed range:

19 - 890 (x) mm/min

spindle cone:

SK 40

column arm:

200 - 680 mm

total power requirement:

4 kVA

weight of the machine ca.:

1,15 t

dimensions of the machine ca.:

1,5 x 1,45 x 2,2 m

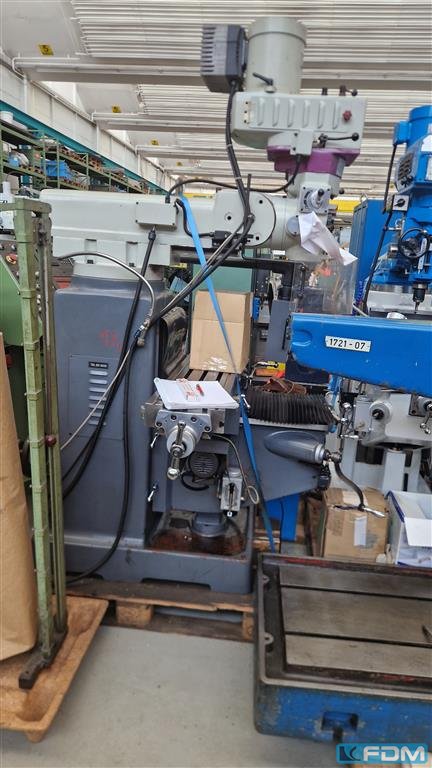

Description

3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with
Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)
