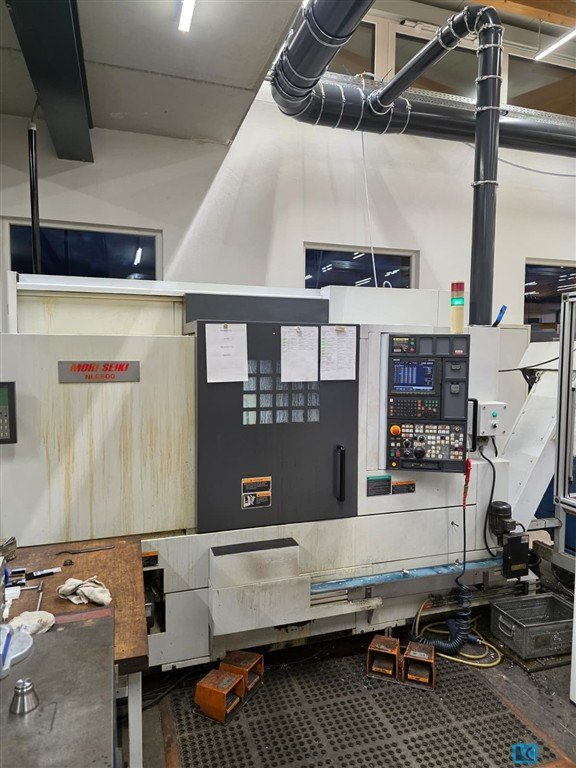

Details

turning diameter:

356 mm

turning length:

700 mm

y-axis:

±60  mm

spindle drive:

18 kW

counterspindle motor:

15 kW

Direct drive for driven tools:

5,5 kW

Motor starting torque:

640 Nm

Main spindle mount:

A2-8

counter spindle mount:

A2-6

Rod passage:

80 mm

main spindle speeds::

4.000  U/min

Drehzahl angetriebene Werkzeuge :

6.000  U/min

rapid traverse speed:

30 m/min auf X- und Z-Achse

machine weight ab.:

5.800  kg

Description

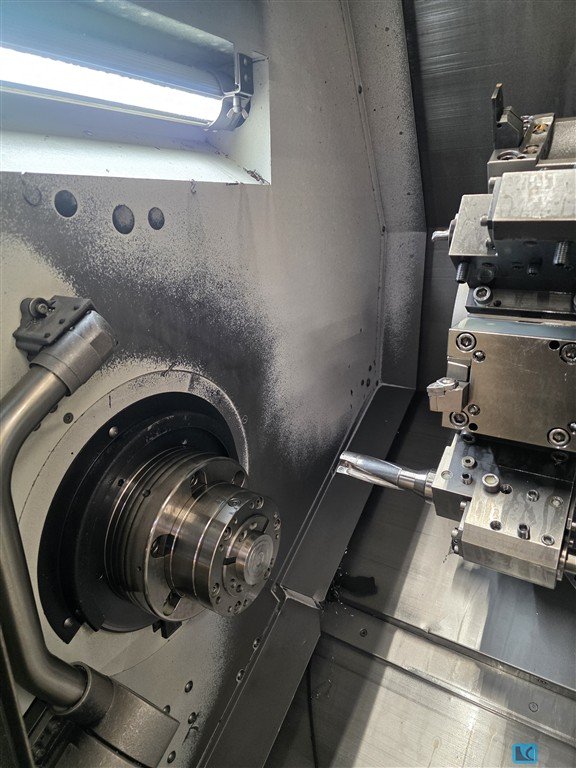

12-station turret, all positions driven
C-axis on both spindles
Belt-driven and infinitely variable drive on all motors
Prismatic guideways on all axes
Oil cooler for both spindles, manufacturer Daikin
Automatic, dialog-guided programming system MAPPS
Automatic monitoring of tool load and tool wear
Two Renishaw measuring arms for automatic tool measurement
Interfaces: USB, PCMCIA card, and RS-232 port
Interface for bar feeder
Automatic parts catcher
Dual foot pedal for independent opening and closing of the chucks on main and sub-spindle
Side-mounted chip conveyor with hinged belt
Electrical transformer
Documentation included: spare parts list, electrical schematics, programming and operating manuals

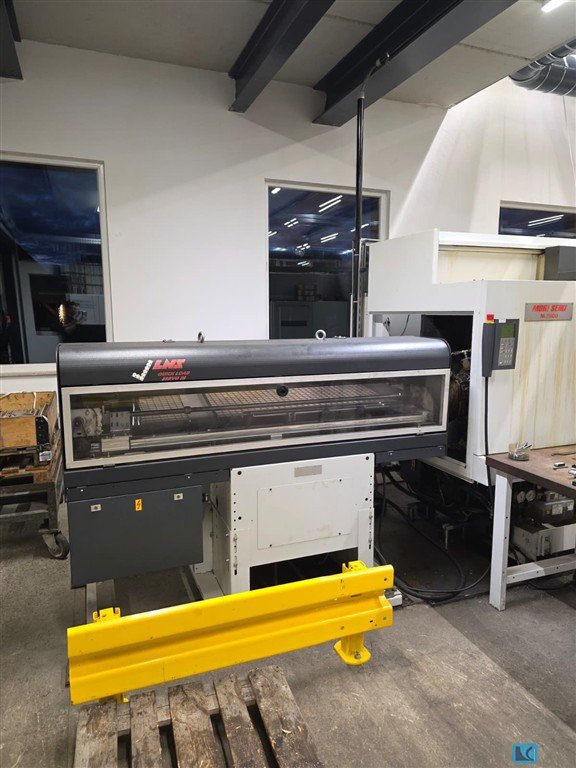

Bar feeder LNS Servo 3
Tool holder system BMT 65
Condition: wear consistent with age
For sale due to conversion to Siemens control system
