Details

x-travel:

750 mm

y-travel:

600 mm

z-travel:

520 mm

Description

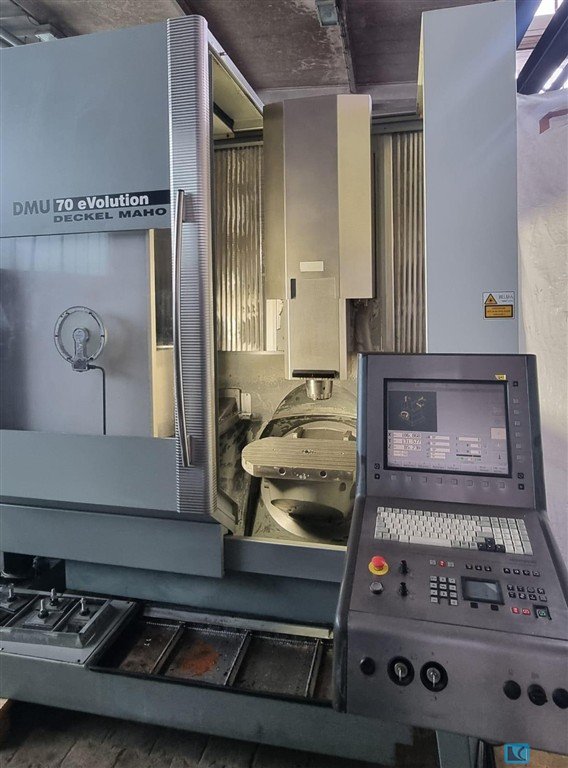

5-Axis Universal Machining Center
DECKEL MAHO DMU 70 EVO
Year of manufacture: 2002
Control: MillPlus iT Heidenhain
Machine hours: 33,289.6 h
Spindle hours: 10,533.5 h
Main spindle:
·Speed range: 20 – 18,000 rpm
·Drive power: 35 / 25 kW
·Max. torque: 130 / 87 Nm
NC tilting rotary table:
·Table clamping surface: 700 × 500 mm
·B-axis swivel range: 180°
·C-axis rotation: 360°
·Max. table load: 350 kg
·Centering bore: 30 H6 mm
·T-slots: 7 × 14 H7 × 63 mm
·Table speed range: 21.5 rpm
Tool magazine:
·Number of tool positions: 32
·Max. tool length: 315 mm
·Max. tool diameter: 105 mm
·Max. tool diameter with free adjacent pocket: 130 mm
·Max. tool weight: 6 kg
