Vertical Turning Machine
Gildemeister CTV 250
- Stock number:
- 3402-250601
- Year / Condition:
- 2004
- Control unit:

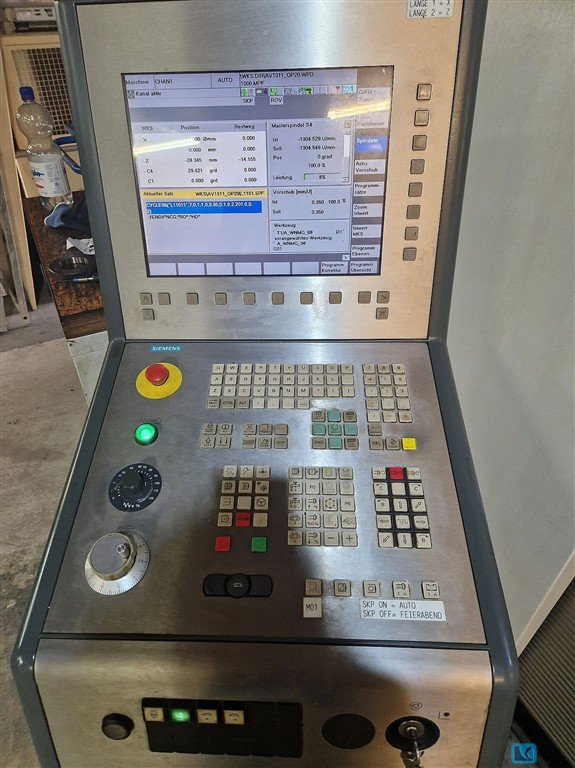

- CNC (840 D Siemens Power Line)
- Country of origin:
- Germany
- Freight basis:
- Item location:
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter:
- 250 mm
- swing diameter:
- 300 mm
- turning speeds:
- 5000 U/min
- spindle drive:
- 20 kW
- chucking diameter:
- 250 mm
- travel -x axis:
- 650 mm
- travel -y axis:
- +/-50 mm
- travel -z axis:
- 300 mm
- turret (x-stations):
- 12
- tool holder:
- VDI 40
- toolpiece turning speed range:
- 4000 U/min
- work piece power:
- ma. 11,7 kW
- weight of the machine ca.:
- 8 t
- dimensions of the machine ca.:
- ca. 6,5 x 4,5 x 3 m
Description
Touch probes
Driven tools,
C-axis

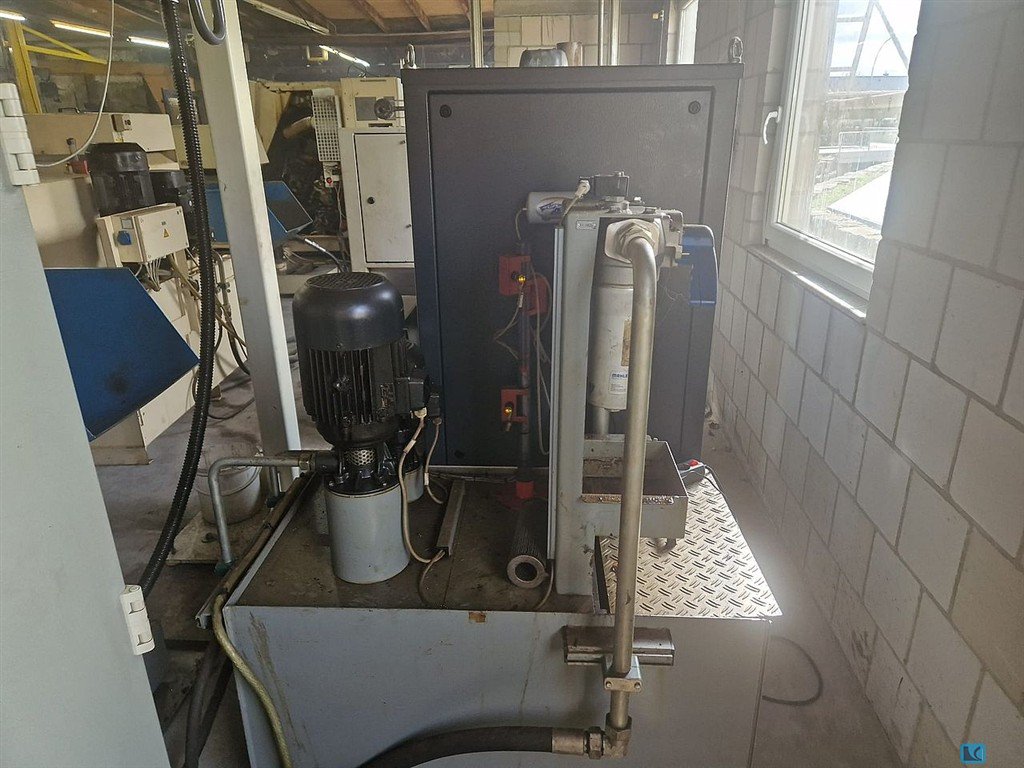

High-pressure pump 20 bar, 500 l double duplex filter
Immersion cooler for cooling lubricant
Electronic extraction system from LTA
Drip tray under the complete machine

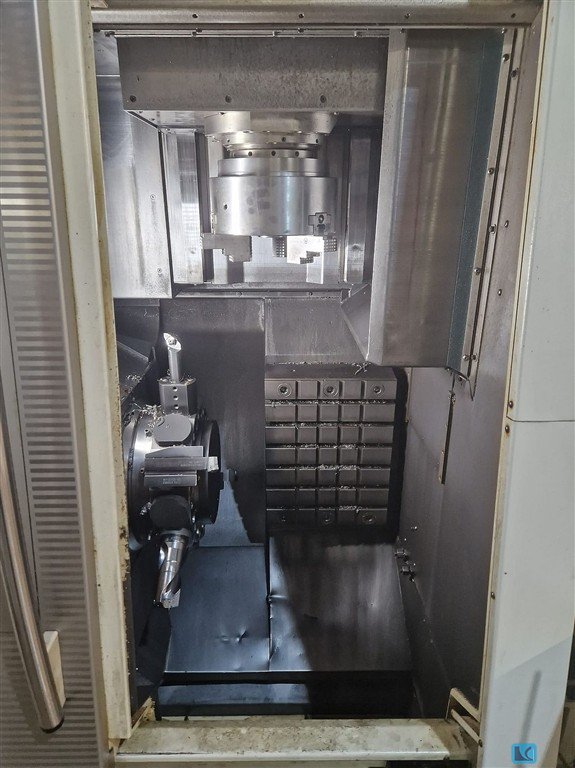

3 jaw chucks from KITAGAWA B210
EWAB pallet conveyor loading station on the right
Chip conveyor
