Details

turning diameter:

670 mm

turning length:

3000 mm

control:

840

z-axis:

3150/3000 mm

y-axis:

-125/+175 mm

x-axis:

700/260 X+ mm

c-axis:

0,001 °

main gear-box motor:

60/40 kW

spindle turning speed range:

2600/3300 U/min

spindle diameter in front bearing:

160 mm

Spindle bore:

115 mm

lower slide:

2 x 12, VDI 40 mm

upper slide:

25 kW

no. of tools in the magazine:

90 Stück

workpiece length:

900 mm

tool taper:

HSK 100 / VDI 40

rapid traverse::

15/20 m/min

total power requirement:

140 kW

weight of the machine ca.:

35 t

dimensions of the machine ca.:

13 x 4,5 x 3,6 m

Description

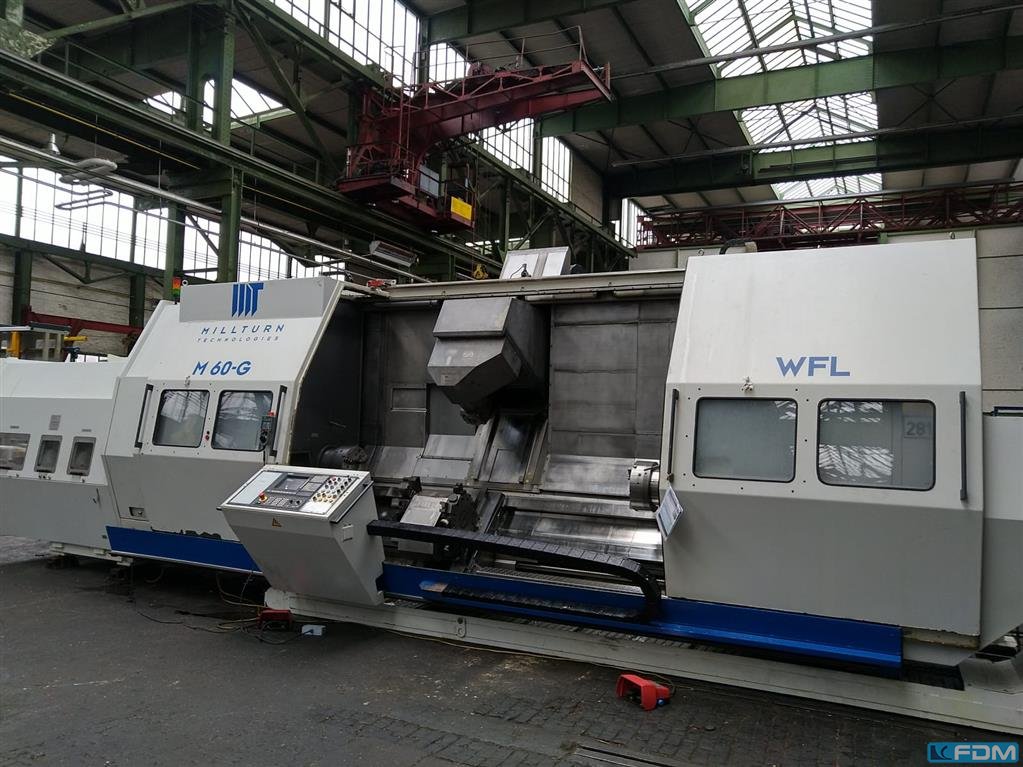

CNC TURNMILL center with opposed spindles and 2 saddles, used for Alu operation only
- SIEMENS 840 C control for 8 axis
- Left/Right spindle with C-axis, KNCS 400 mm power chuck
- Lower saddle with 2 x 12-fold revoving heads
- Turning.- boring,- milling unit on top saddle, HSK 100 tool taper, 25 kW drive motor, 10-4000 r/min, B and Y axis
- Coolant device with 80 bar and rotating filtering, coolant liquid cooler, oil mist exhauster
- MARPOSS Workpiece measurring device
- Chip convyor, complete splash housing with sliding doors
