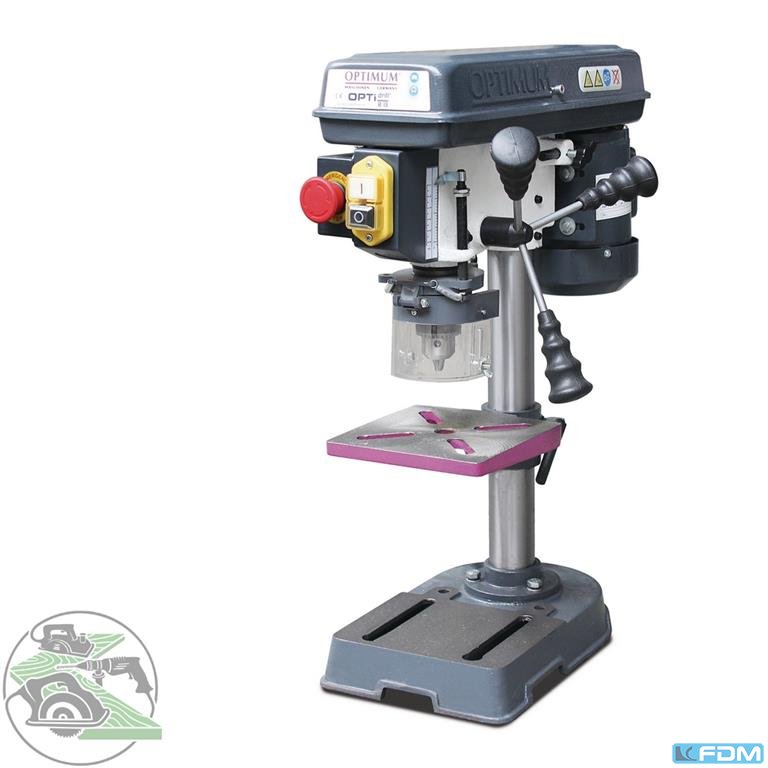

Table drilling machine
Typ B 13
- Stock number:
- 2004-42479
- Year / Condition:
- *
- Control unit:
- conventional
- Country of origin:
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Description
- Precision machined drill table,
Tiltable by 45 °
- Guaranteed concentricity better
measured as 0.03 mm in the drill quill
- drilling depth stop
- Cover with safety switch
- Separate emergency stop impact switch
- T-nuts for vise fixing
Technical specifications:
Dimensions and weights
Length approx. 420 mm
Width / depth about 220 mm
Height about 580 mm
Weight approx. 19 kg
Drilling capacity
Drilling capacity steel (S235JR) 13 mm
Continuous drilling capacity steel (S235JR) 12 mm
Drilling
Working surface length 160 mm
Working surface width 160 mm
T-slots size 14 mm
Distance spindle - drilling table max. 240 mm
Speed ??range
Speed ??range 520 - 2620 min¯¹
Number of speed ranges 5
Electrical data
Supply voltage 230V
Phase (s) 1 Ph
Current type AC
Mains frequency 50 Hz
machine base
Distance spindle - machine foot max. 325 mm
Working surface length 135 mm
Working surface width 175 mm
Engines)
Drive power spindle motor 0.3 kW
spindle
Quill stroke 50 mm
Spindle mount fixed - B16
Projection 104 mm
Delivery:
- Gear chuck
- T-nuts
- Precision machined drill table,
Tiltable by 45 °
- Guaranteed concentricity better
measured as 0.03 mm in the drill quill
- drilling depth stop
- Cover with safety switch
- Separate emergency stop impact switch
- T-nuts for vise fixing
Technical specifications:
Dimensions and weights
Length approx. 420 mm
Width / depth about 220 mm
Height about 580 mm
Weight approx. 19 kg
Drilling capacity
Drilling capacity steel (S235JR) 13 mm
Continuous drilling capacity steel (S235JR) 12 mm
Drilling
Working surface length 160 mm
Working surface width 160 mm
T-slots size 14 mm
Distance spindle - drilling table max. 240 mm
Speed ??range
Speed ??range 520 - 2620 min¯¹
Number of speed ranges 5
Electrical data
Supply voltage 230V
Phase (s) 1 Ph
Current type AC
Mains frequency 50 Hz
machine base
Distance spindle - machine foot max. 325 mm
Working surface length 135 mm
Working surface width 175 mm
Engines)
Drive power spindle motor 0.3 kW
spindle
Quill stroke 50 mm
Spindle mount fixed - B16
Projection 104 mm
Delivery:
- Gear chuck
- T-nuts
