Description

- NEW -

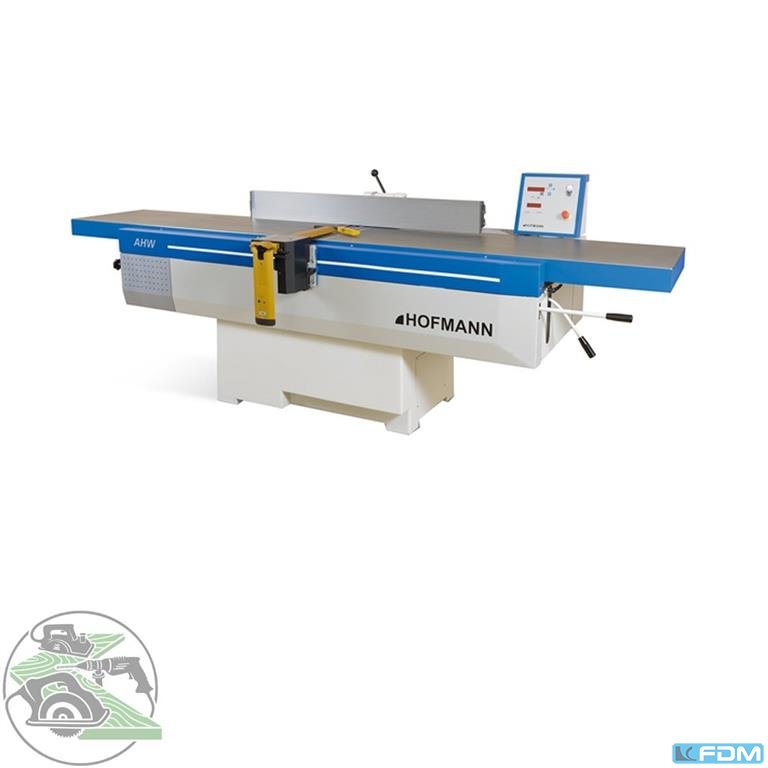

Manufactured by Hofmann
Type AHW 512

Basic equipment:

- Proven cast iron design, among others, planed heavily ribbed cast iron tables , very fine
- Toothed steel lips , replaceable ( used to reduce noise )
- Hollow / pointed joint adjustment with display , operation of loading table
- Trimming fence across the entire width adjustable, with reduced resistance
Mounted roller guide . Up to 45 ° tiltable to the degree scale ,
with one hand. Scale for workpiece thickness at the stop ,
Integrated auxiliary stop
- Planing guard '' TX '' GL , hinged cover
- Bracket for Tripod feed
- Pushbutton circuit for automatic meter wave run-up
& Automatic brake; blade shaft lock for the
safe blade change
- Electrical equipment according to VDE / EN 60204 with main switch as
Emergency stop switch, emergency stop switch , motor protection switch and coil protection ,
Undervoltage protection, contact for controlling the exhaust, brake device
: Solid steel blade shaft with 4 Tersa knives
- Accessories: 1 set of knives installed , operating tools , grease gun , instructions
- CE - compliant, BG- wood dust test No. 081038

Specifications:
Planing width 500 mm
Feed table length 1500 mm *
Outfeed table length 1500 mm *
Table height 840 mm
Chip removal max.8 mm
Motor power 5.5 kW *
Speed ??5000 r / min.
Blade shaft circle Ø 125 mm
Suction D 140 mm
Mean air velocity 20 m / sec.
Minimum air flow 1108 m3 / h
Idle noise 77.0 db ( A)
Working sound level 88.0 db ( A)
Workplace-related dust emission value 0.37 mg/m3 air
Weight 920 kg
positioning depth max. (including stroke ) ** 1450 mm

* Information in the standard , expandable
** Space-saving installation Planer / thicknesser possible

ex works
