Tenoning machine
Typ ZAF 250 Vario
- Stock number:
- 2004-25533
- Year / Condition:
- *
- Control unit:
- conventional
- Country of origin:
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Description
- NEW -
Manufacturer Mafell
Type ZAF Vario
No. 991201
Masch.Nr. 1206238
Description:
- With the ZAF 250, all journal forms can be produced quickly and precisely, efficiently and precisely.
- Straight spigots, oblique pegs, corner and ridge leaves - with the compact ZAF 250 you are on
the safe side.

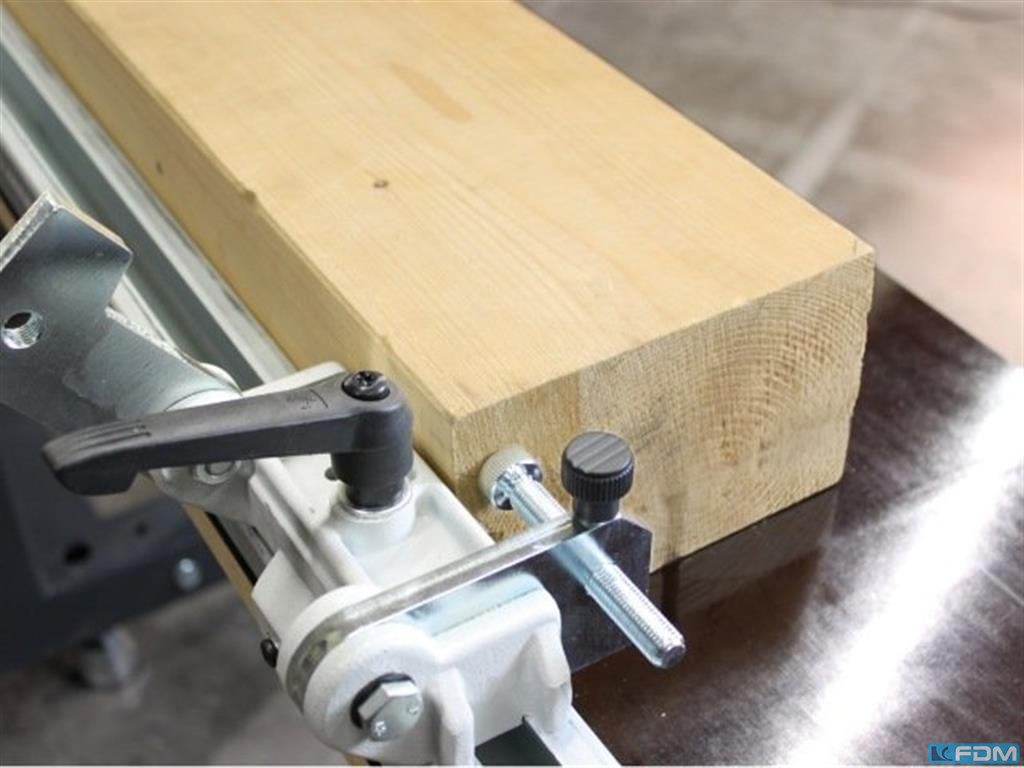

- An exact length scale is adjustable by stop.
- The milling tool, specially developed for the ZAF 250, can be used for a variety of different speeds
Length of the pins as well as for blade milling.
- The ZAF 250 Vario has precise adjustment possibilities and a clearly arranged control panel.
A built-in laser assists you in the exact positioning of the wood.
Result: Millimeter-precise milling in every wood!
- After setting the pin geometry, the milling head automatically moves the pin shape and
provides you with the required spigot - pruning, settling and chamfering.
- The ZAF 250 Vario has an adjustable feed rate for hardwood inserts.
Application:
- Pin and blade milled to 60 °
- material application, B .: Solid wood and Leimbinder
Delivery:
- 1 milling head, complete with reversing knife (202105)
Technical specifications:
- Maximum wood dimension (W x H) right angle 500 x 250 mm
- Maximum wood dimension (W x H) 60 ° 220 x 250 mm
- Length of support with scale 3000 mm
- Feed speed 0.9 - 2.2 m / min
- Installation area 1.5 x 4 m
- Nominal idling speed 6670 rpm
- Nominal consumption 6000 W
- Weight 392.1 kg
- Three-phase motor 400 V / 50 Hz
located in 97447 Gerolzhofen
- free loaded -
- NEW -
Manufacturer Mafell
Type ZAF Vario
No. 991201
Masch.Nr. 1206238
Description:
- With the ZAF 250, all journal forms can be produced quickly and precisely, efficiently and precisely.
- Straight spigots, oblique pegs, corner and ridge leaves - with the compact ZAF 250 you are on
the safe side.
- An exact length scale is adjustable by stop.
- The milling tool, specially developed for the ZAF 250, can be used for a variety of different speeds
Length of the pins as well as for blade milling.
- The ZAF 250 Vario has precise adjustment possibilities and a clearly arranged control panel.
A built-in laser assists you in the exact positioning of the wood.
Result: Millimeter-precise milling in every wood!
- After setting the pin geometry, the milling head automatically moves the pin shape and
provides you with the required spigot - pruning, settling and chamfering.
- The ZAF 250 Vario has an adjustable feed rate for hardwood inserts.
Application:
- Pin and blade milled to 60 °
- material application, B .: Solid wood and Leimbinder
Delivery:
- 1 milling head, complete with reversing knife (202105)
Technical specifications:
- Maximum wood dimension (W x H) right angle 500 x 250 mm
- Maximum wood dimension (W x H) 60 ° 220 x 250 mm
- Length of support with scale 3000 mm
- Feed speed 0.9 - 2.2 m / min
- Installation area 1.5 x 4 m
- Nominal idling speed 6670 rpm
- Nominal consumption 6000 W
- Weight 392.1 kg
- Three-phase motor 400 V / 50 Hz
located in 97447 Gerolzhofen
- free loaded -
