Bar Automatic Lathe - Multi Spindle SCHUETTE SF20 S DNT - TAR-Maschinen OHG - Vierkotten

Details

number of spindles:: 6
spindle passage:: 20 mm

Description

Article: cam-controlled multi-spindle automatic lathe
Manufacturer: Schütte
Type: SF20 S Dnt
Yob: 1999
Six-spindle automatic lathe with 6 main spindles
max. nominal diameter: D=20mm
Spindle drum hirth coupled,
CNC cross slide in positions 4,
CNC cross slide in positions 5,
pick up in position 6, sorting chute, 1x independent feed,
thread cutting couplings,
workpiece belt,
Coolant tank with hinged belt chip conveyor Ruez,
Oil/steel operation,

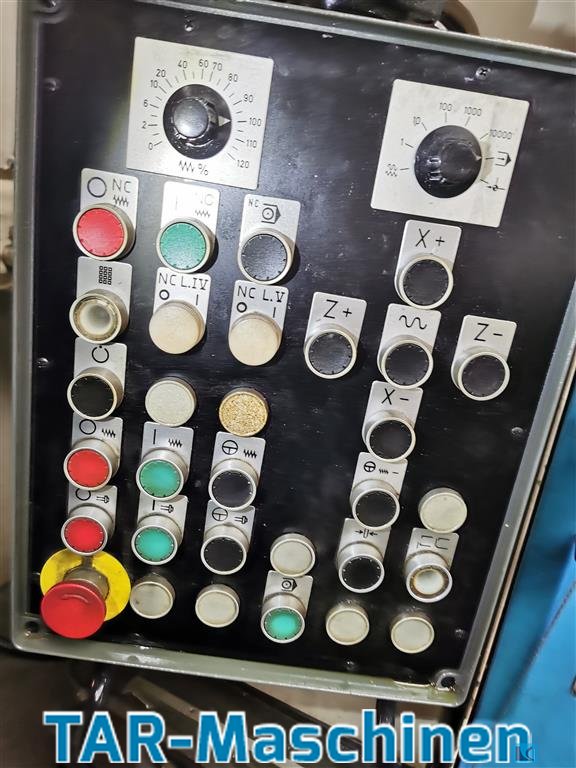

PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,

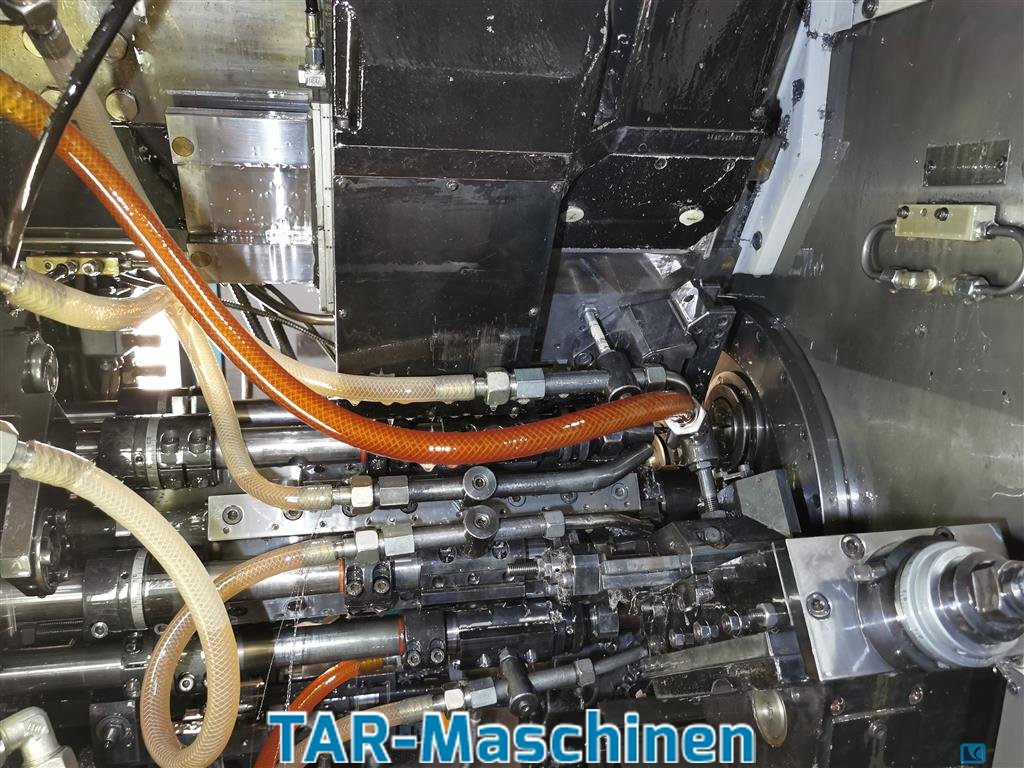

The scope of delivery regarding the tooling equipment could be different like pictures.
Interface for: IEMCA PRA bar loading magazine
(optional: IEMCA PRA40/31/ built in 1997 rear loader)
