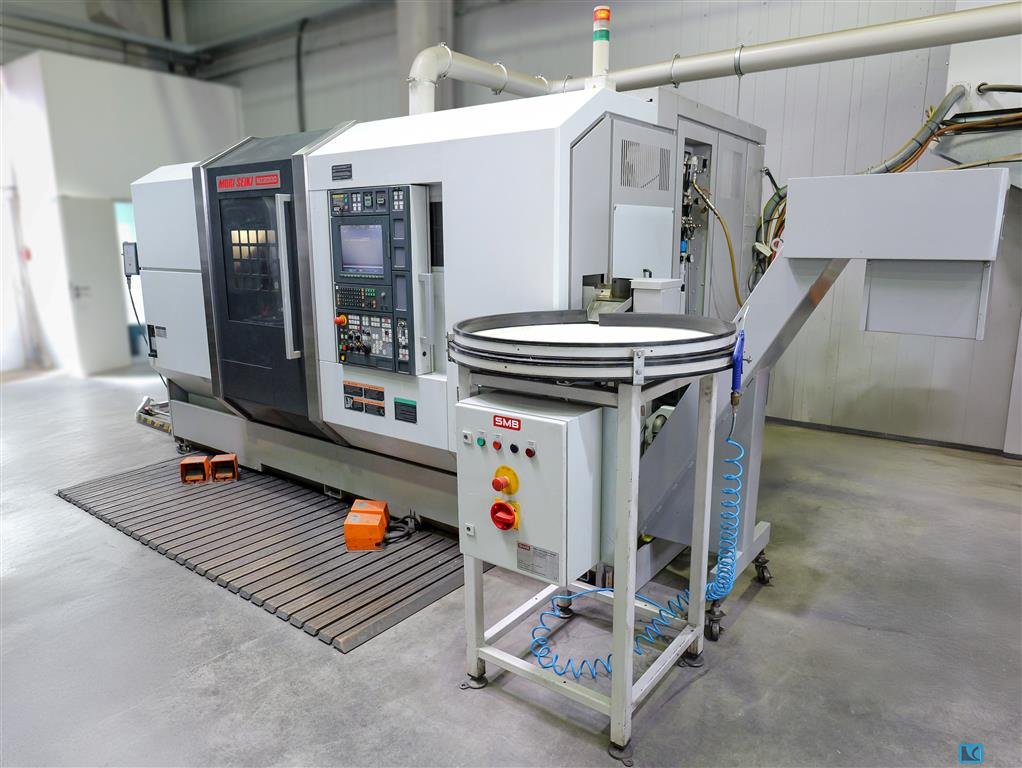

Details

swing over bed:

800 mm

Swing diameter over cross slide:

800 mm

max. turning diameter:

320 mm

Standard turning diameter:

200 mm

Distance between tips, max.:

1130 mm

turning length, max.:

810 mm

max. workpiece height:

300 mm

Travel x-axis, revolver 1:

210 mm

Travel x-axis, revolver 2:

210 mm

Travel y-axis:

110 (+64, -45) mm

Travel z-axis, Revolver 1:

810 mm

Travel z-axis, Revolver 2:

810 mm

Travel b-axis:

920 mm

spindle speed max.:

5.000 min-1

drive capacity (30 min / permanent operation):

25 / 22 kW

bar diameter, max:

65 mm

spindle bore:

73 mm

spindle diameter in front bearing:

120 mm

solution in C-axis:

0,001 ° Grad

Installation area, without chip conveyor:

3930 x 2721 mm

Installation area, with chip conveyor:

5120 x 2721 mm

Total height:

2320 mm

weight:

8300 kg

coolant tank capacity max.:

400 l

coolant capacity:

20 l/min

volume of hydraulic oil tank:

10 l

Coolant capacity:

4,2 l

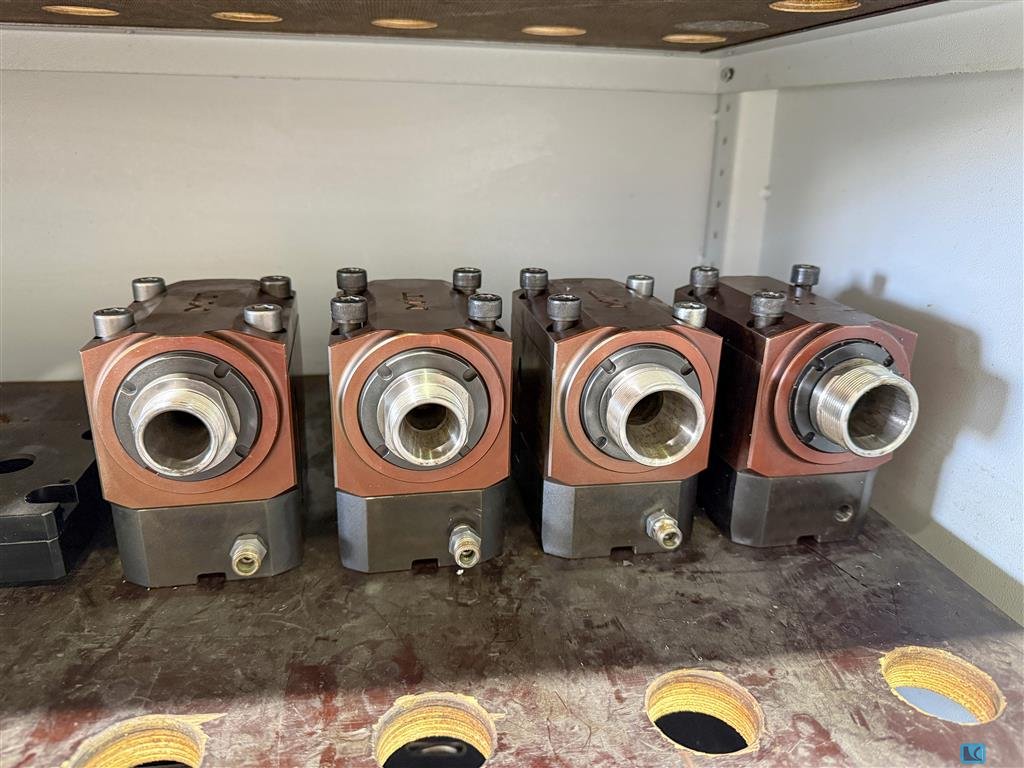

tool turret:

2

Tool stations per revolver:

16

Switching time 1 station:

0,18 s

power capacity (5 min / permanent):

7,5 / 5,5 kW

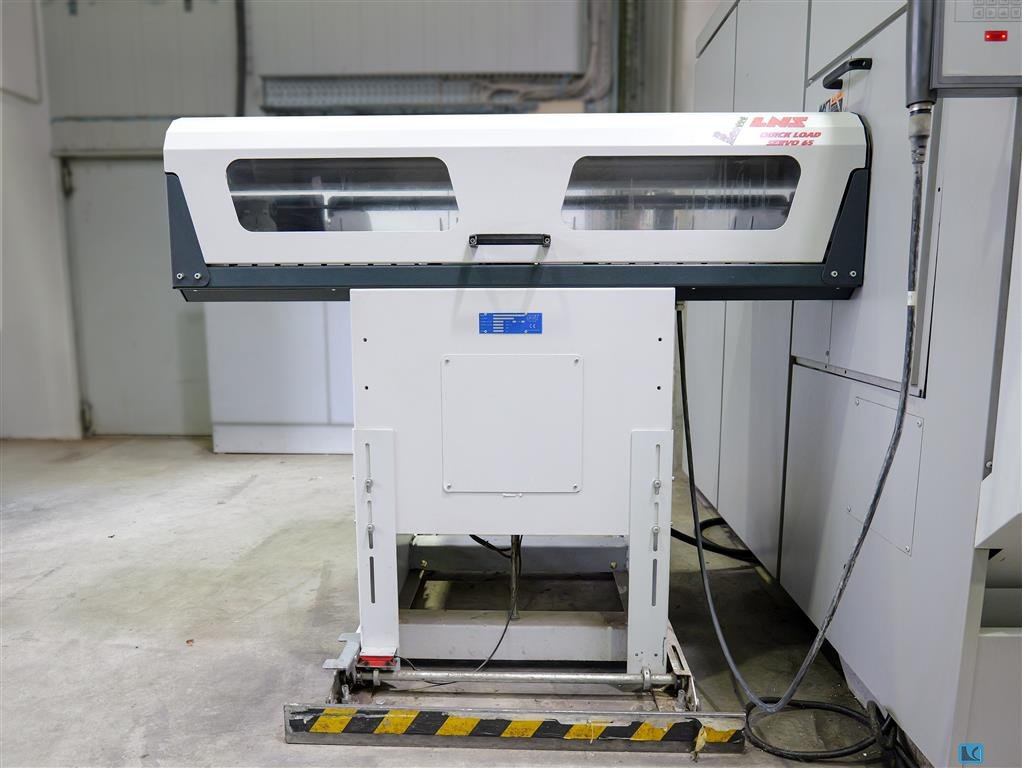

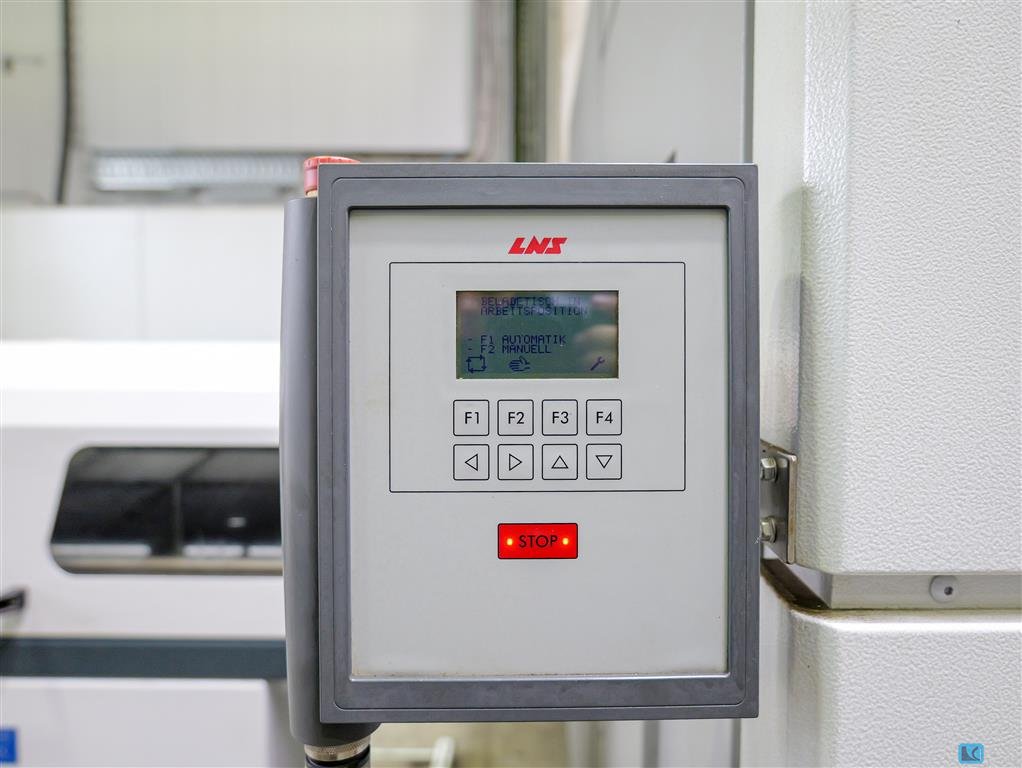

Bar feeding system:

LNS Quick Load Servo 65

Diameter range, round and hexagonal material:

6 - 65 mm

max. bar length:

350 - 1300 mm

Chip conveyor, ejector right
Coolant device with increased pressure 5 bar
Display of the total number of pieces
Workpiece counter with cycle stop command

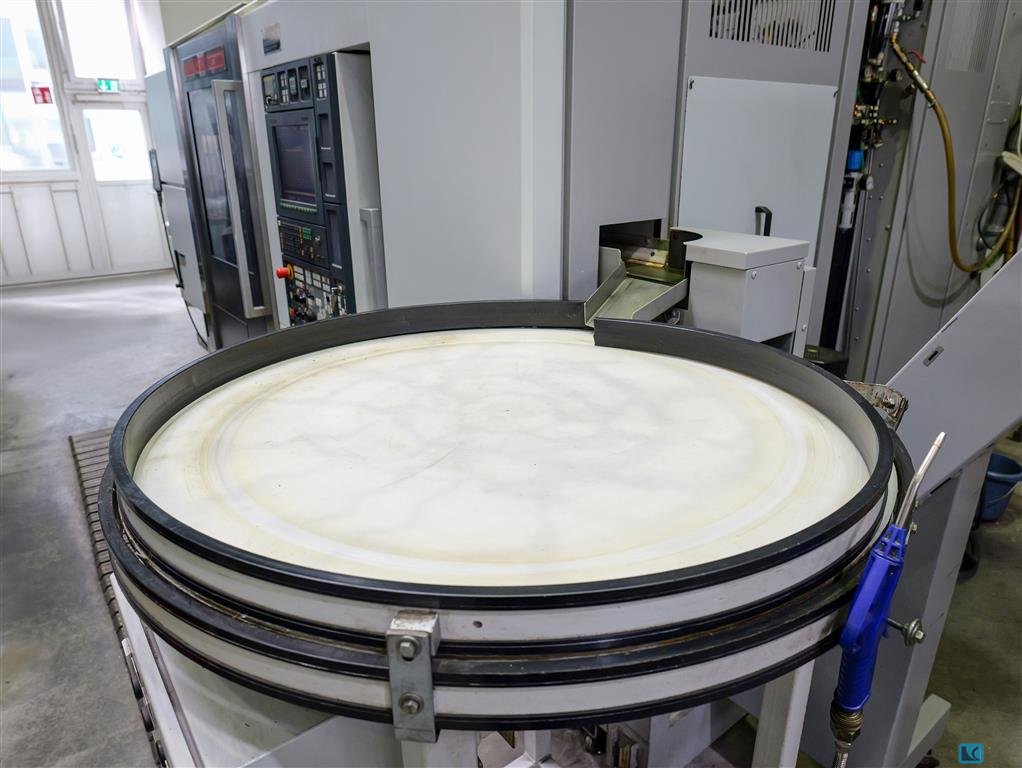

Integrated mobile workpiece unloading syste with gripper
Workpiece collection container for workpiece unloading system
