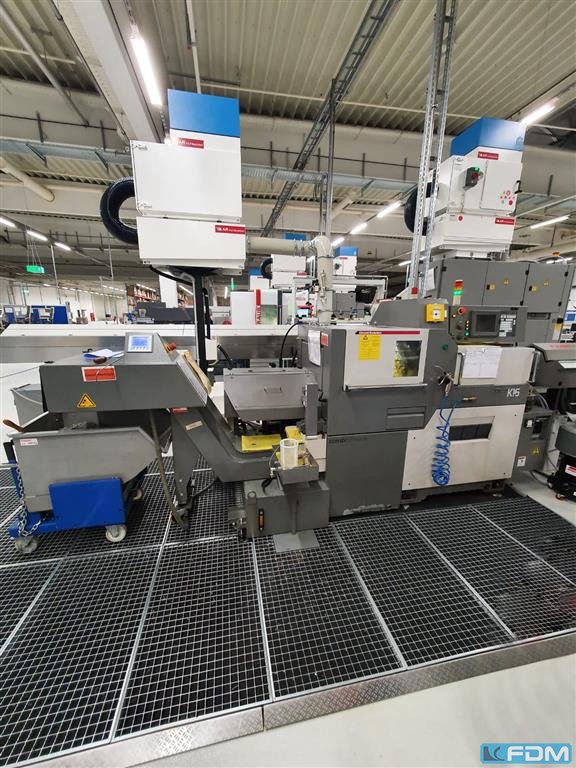

Details

turning diameter

16 mm

turning length

200 mm

total power requirement

8 kW

Spindle indexing C axis

0,001 °

Max. machining diameter (Main spindle)

16 mm

Max. machining length (Main spindle)

200 mm

Motor capacity (Main spindle)

3,7 kW

Spindle speed (Main spindle)

15.000 min-1

Max. machining diameter (tapping spindle)

16 mm

Max. machining length (tapping spindle)

80 mm

Motor capacity (tapping length)

1,1 kW

Spindle speed (tapping spindle)

10.000 min-1

Spindle indexing C axis

0,001 °

Spindle speed of driven tools on vertical holder

6000 min-1

Motor capacity driven tools

0,4 kW

Number of tools on vertical holder

4

turning tools on tool system

7

Number of drilling tools on the tool system (front)

4

Number of drilling tools on the tool system (rear side)

4

Tool holder, turning steels, shank cross section

10 mm

Rapid movement X1 and Y1 Axes

34 m/min

Rapid movement Z1 and Z2 axes

32 m/min

Clamping system main and counter spindle

138E

Separation at the loading magazine Pilgrim step below

5 mm

Dimensins of the machine (LxWxH)

1850 x 1610 x 1050 mm

Weight of the machine approx.

2050 kg

Control

MELDAS M70

Control unit

CNC

Maker of control unit

MELDAS M70
