Details

Number of sanding units:

4 st.

sanding width:

150 mm

Sanding height max.:

150 mm

Control:

ja

Dimensions (L/W/H):

2000x1500x2100 mm

weight:

650 kg

Description

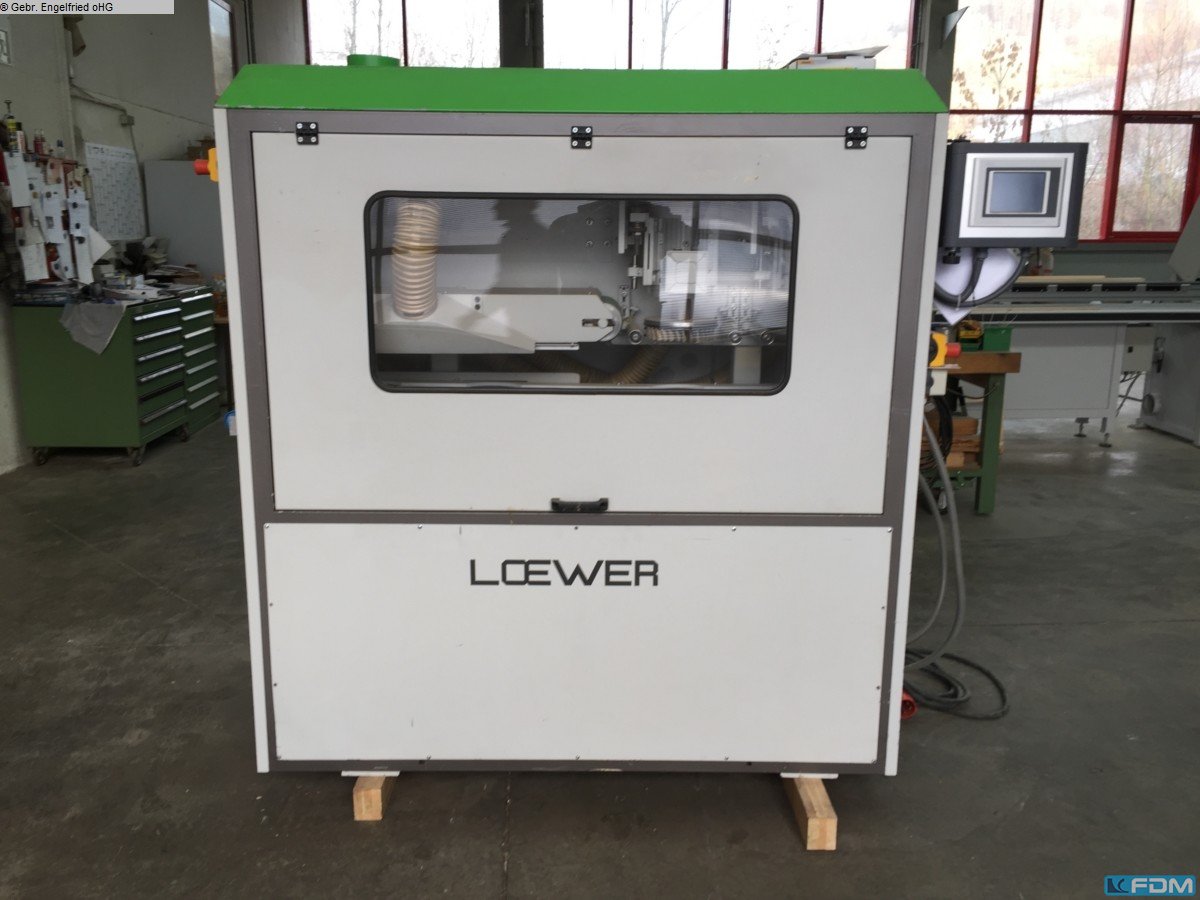

LÖWER - Finish Machine CrossMaster DDx2-200 with SPS Touch Panel 2

for the finish grinding and intermediate sanding of strips and bars of all
Kind with simultaneous processing from above and below.

Number of grinding units: 4 pcs.
Grinding width: 150 mm
Grinding height: 150 mm

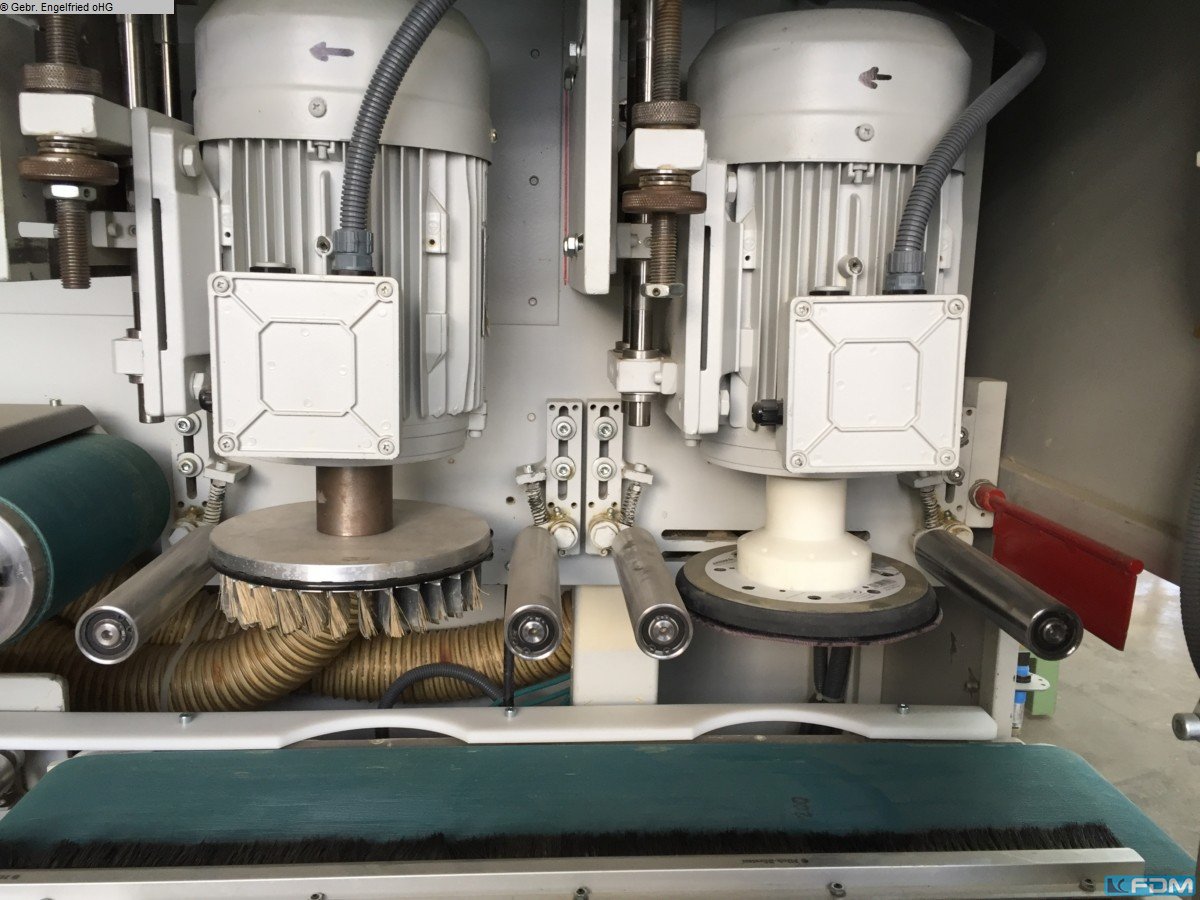

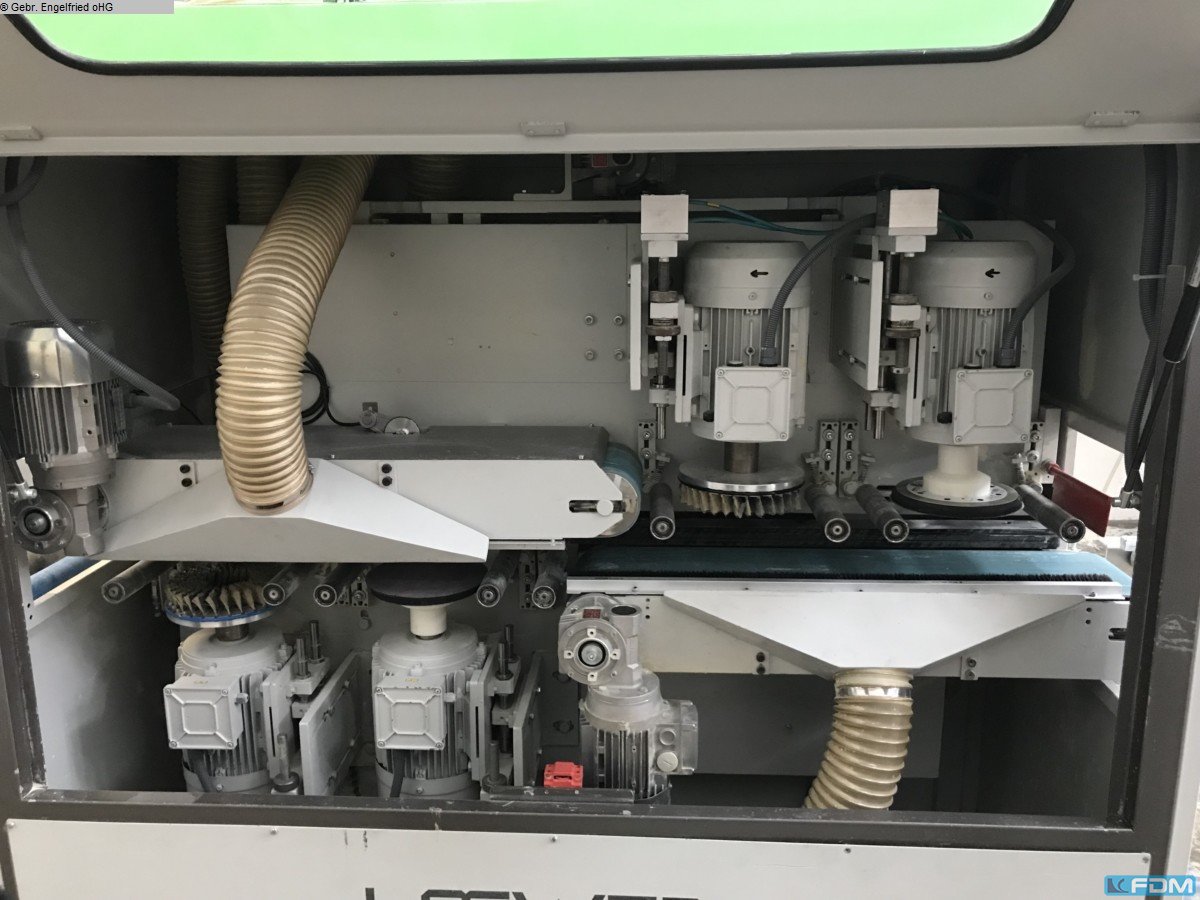

2 disc aggregates from top and 2 disc aggregates from bottom

Disc unit each 0.75kW with disc diameter 200mm
separately manuall adjustable in height, laterally movable,
grooved disc with retractable sanding discs

Feed over staggered transport tables above
and below with conveyor belt width 200mm and sprung
Pressure rollers, feed rate via gear motors stepless
adjustable 3- 15m / min

motorized height adjustment for setting the
Workpiece thickness via geared motor with display

All 4 sanding units individually switchable, stepless
Speed ??control of the discs via two frequency converters

Infeed contact with emergency stop interruption when thick

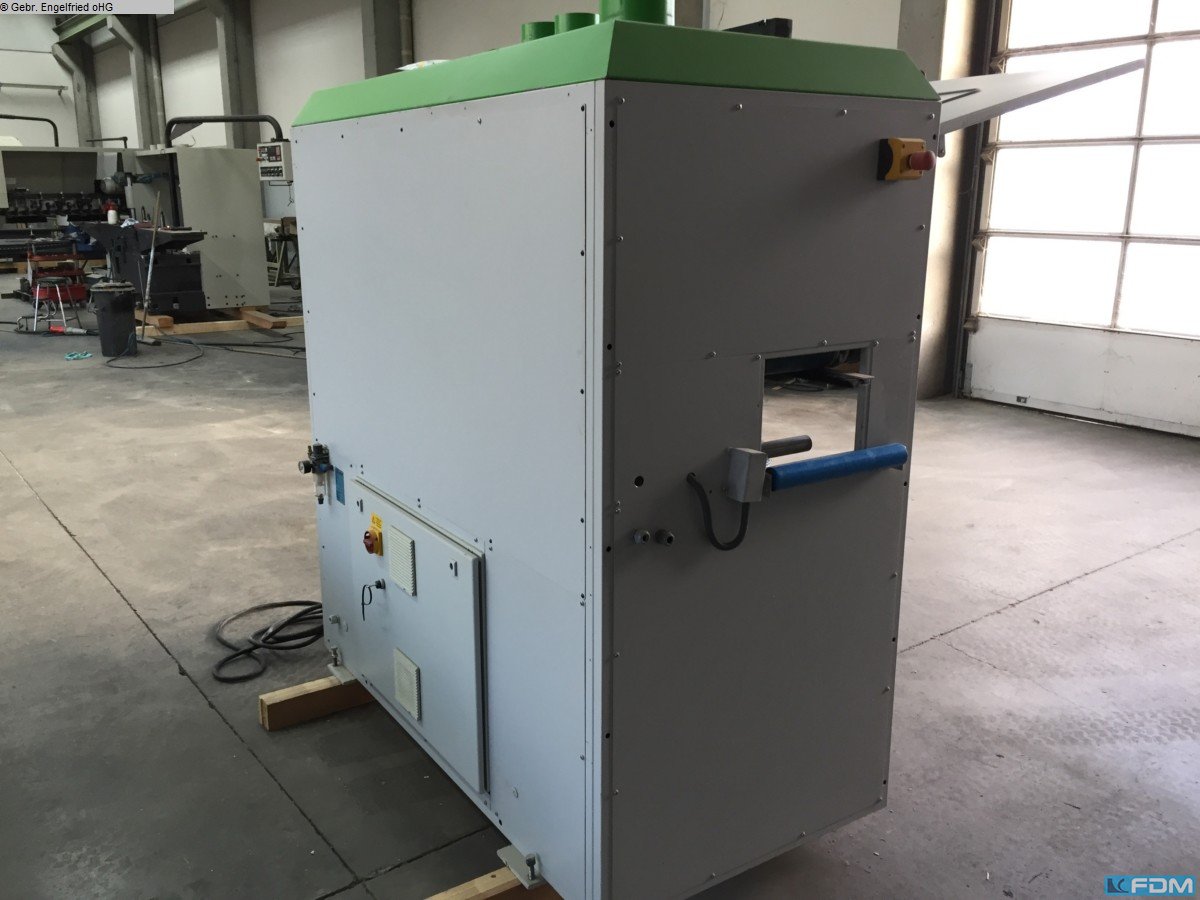

Workpieces, complete machine encapsulation with extraction nozzle
1 x 150mm, 2 x 100mm, operating voltage 400V, 50Hz, 3P, CE

execution
- Length x Width x Height (mm): 1750 x 890 x 1790
- Passage height 980mm
- shortest workpiece length 340mm


Additional equipment:

Additional suction channel on the left side

Power Panel 2
---------------
PLC with touch panel for display and operation

Disc units pneumatically suspended from work area

Adjustment via touchpanel of
- workpiece height
- Inserting / exposing upper discs in pairs
- Inserting / exposing lower discs in pairs
- Speed ??Disc 1 and 3 together (first discs)
as well as 2 and 4 together (second discs)
- Feed rate

Selector switch setup mode / control via barcode

Control option of external barcode reader from
- workpiece height
- Loop up
- Sand down
- Sanding on both sides
- only feed

Non-contact sensor at the machine inlet - program change only
possible after expiry of one of the selected feedrate
dependent time ("no workpiece in machine) (additional sensor
at machine exit - safety)

Non-contact sensor for activation of external barcode reader

Interface Ethernet, USB and CAN open available

1 machine on planks 2200x1200x2100mm
Gross weight: 620 kg Net weight: 600 kg

(technical data according to manufacturer - without guarantee!)
