Details

cut-off saw:

3 KW

Spindle diameter:

40 mm

Spindle length:

252 mm

Saw blade diameter:

400 mm

Motor output:

2 x 7,5 kW

Dimensions (L/W/H):

2500x1700x2100 mm

weight:

1700 kg

Description

!! In order to sell !!

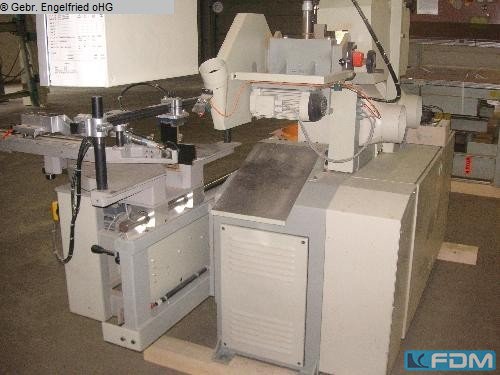

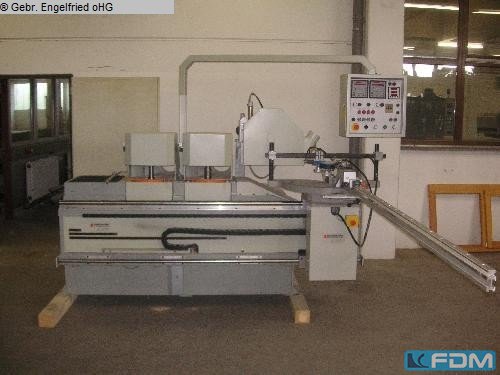

HABERKORN - slot machine FZS-2 electronics with stepless slot spindles
and automatic rolling table

Ablängsäge
**************
Spindle arrangement above
Three-phase motor 3 KW
Spindle diameter 30 mm
Speed ??2800 rpm
Saw blade diameter 400 mm
* automatic brake with speed monitoring
* Saw positioning stepless with Siko indicator
* Protection u. Extraction hood with extraction nozzle 100 mm diameter

2 slot spindles 40 mm diameter
***********************************************
Power 2 x 7.5 KW
Speed ??4200 rpm
Spindle diameter 40 mm
max. tool diameter approx. 360 mm
Effective length 252 mm
Option: 2 spindles with 50 mm D, usable length 300 mm

* Both slot spindles can be positioned via ball screw
* freely programmable, 49 programs, display with function keys
* Protection u. Extraction hood with extraction nozzle 180 mm D
* automatic brake with speed monitoring

Studio table
**************
* Swivel range +/- 65 °
* Automatically changing wood (programmable)
* pneumatic tensioner
* High precision electrical degree indication
* Automatic length compensation
* Counter-timber at every angle adjustment in the cutting plane

Additional equipment
*********************
infinitely variable roller table feed
Laser for workpiece position
Length stop LA 2000 with electrical indicator
Length 2500 mm

(technical data according to manufacturer - without guarantee!)
