Description

Line for alumium-tubes (one to fourfold seam) consisting of: Tube filling and closing machine and folding box cartoner

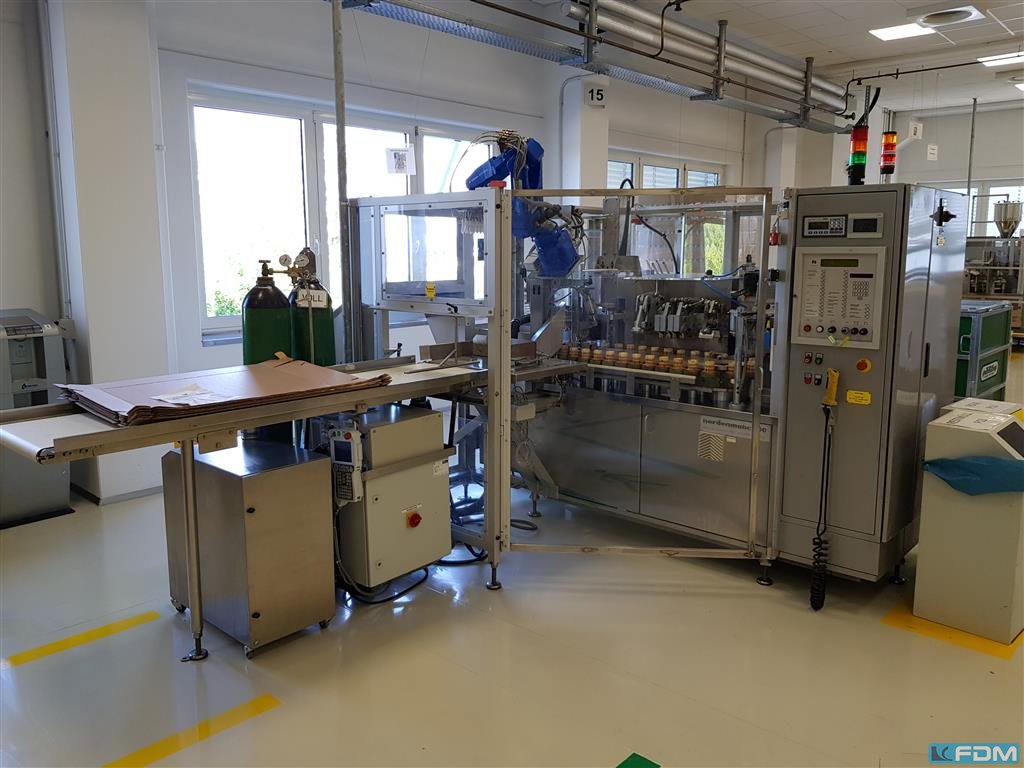

Tube filling and closing machine, make Norden, type Nordenmatic 700EM, model 1999
• Output 18-70 tubes/min
• Tube-diam. 10-50 mm according to change parts, with tube holder for tube-diam. 28 mm and length 165 mm
• Dosing 1-300 ml according to filling pump, with filling pump 15-165 ml, filling mouthpiece diam. 22 mm with product cut off and blow-off function
• Product container appr. 250 l

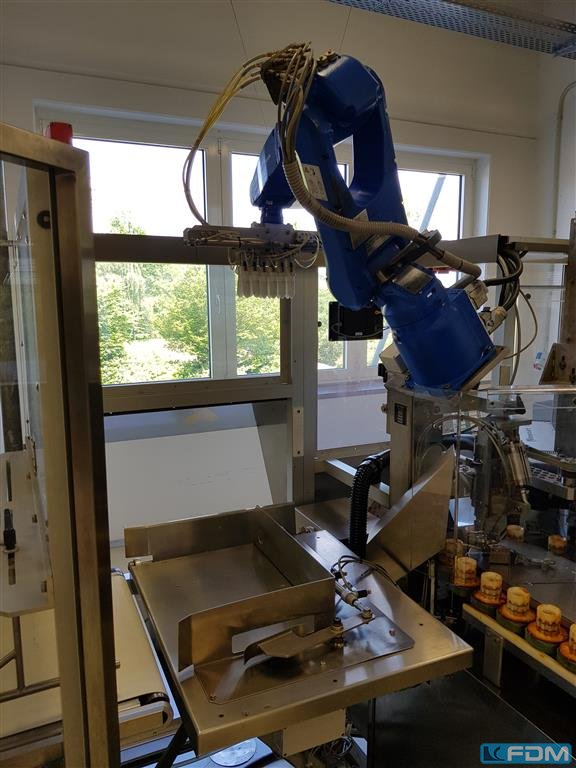

• Tube feeding robot, make Yasakawa, type Motoman MH5LF, model 2012, control FS 100, software FS 1.12.02A, programming handset Motoman
• Print mark control
• Tube coding device

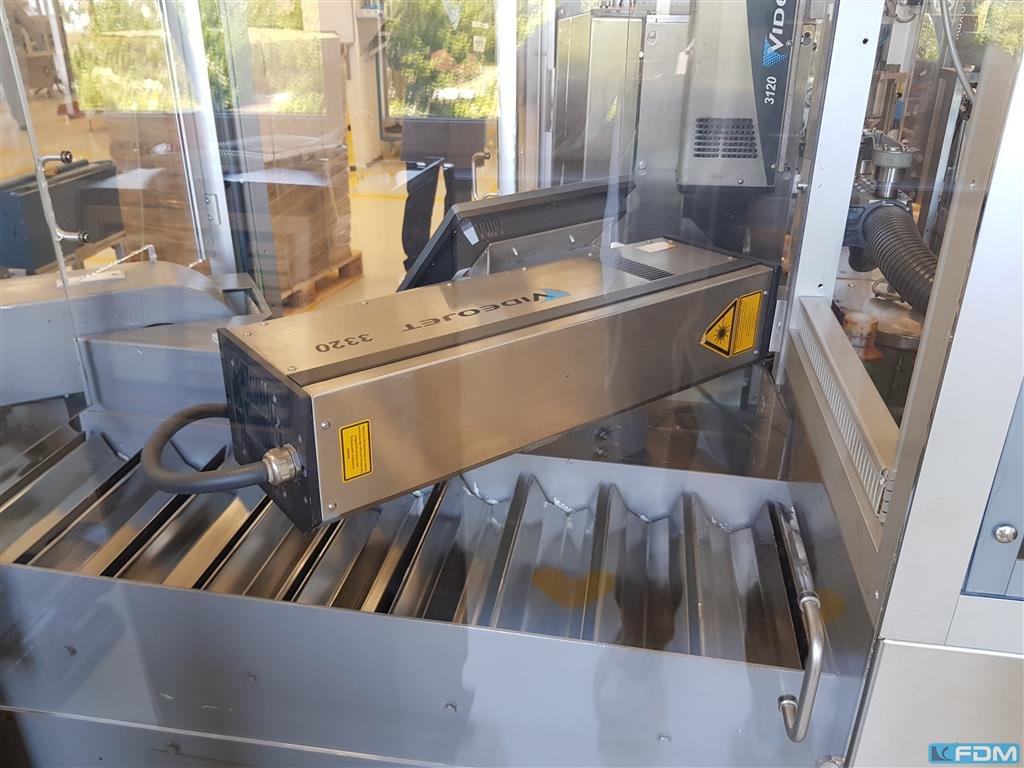

• Additionally laser printing system for tubes, make Videojet, model 2006, 1 laser for colour code, type 3320, 1 laser for batch code, type 3120, software Smart Graph version 6.x
• Print control by 2 cameras with separate display
• Tube hand over conveyor to cartoner
• Electric overhauled in 2009 by manufacturer
• Control Norden IPC

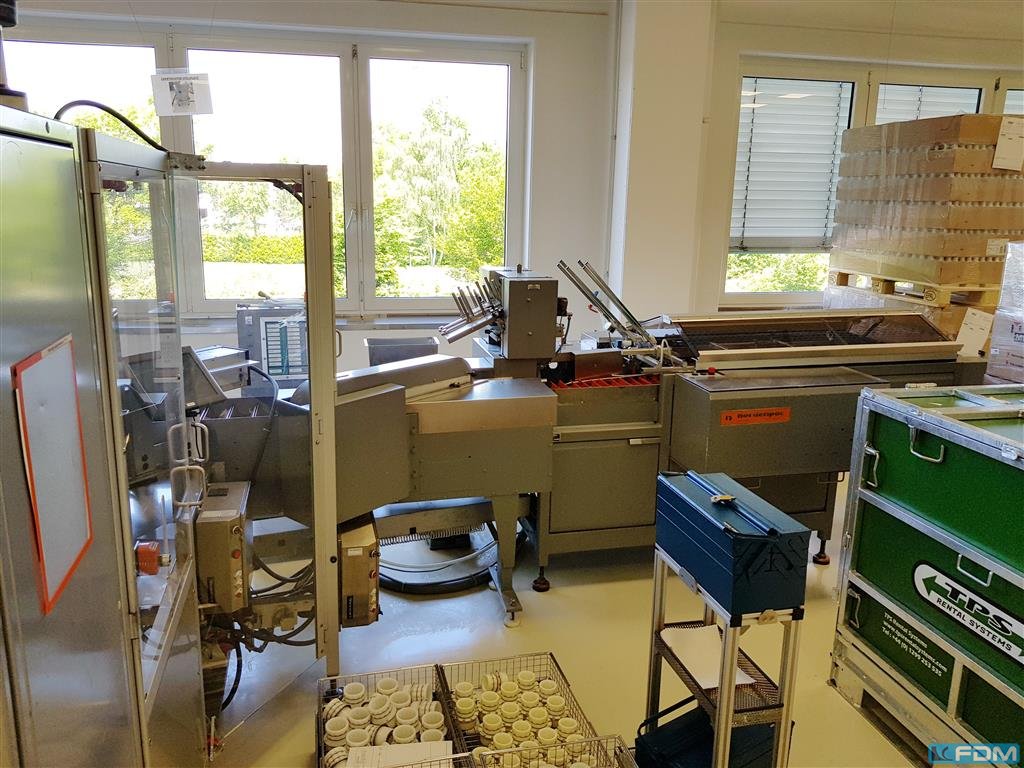

Folding box cartoner, make Norden, type Nordenpac 1000, model 1985
• Continuously operating, for reversed tuck-in flaps
• Formate area folding box width 20-70 mm, height 15-75 mm, length 70-220 mm
• Output max. 150 folding boxes/min
• Centrally adjustable product chain
• Leaflet folder/inserter, make GUK, type FA 21/4 SVA 21, Cartonac 81
• Single side colour embossing device 3-track
• Vacuum pump, make Becker (as new)
• Switch control

The entire line was in production until September 2020 and was maintained regularly by enduser and manufacturer, electr. connection 230/400V/50Hz
