Details

turning diameter over bed:

820 mm

turning diameter over slide rest:

430 mm

turning length:

3500 mm

spindle bore diameter:

ca. 130  mm

spindle speeds::

24

spindle turning speed range:

7,1 - 1400 U/min

feeds::

36

feeds: bed slide/longitudinal:

0,05 - 2,8 mm/U

feeds - cross:

0,025 - 1,4 mm/U

tailstock quill diameter:

100 mm

tailstock quill taper MT:

6

tailstock quill stroke:

280 mm

bed width:

560 mm

total power requirement:

ca 25 kW

weight of the machine ca.:

36 t

dimensions of the machine ca.:

6,5 x 1,8 x 1,4 m

Description

Equipment:

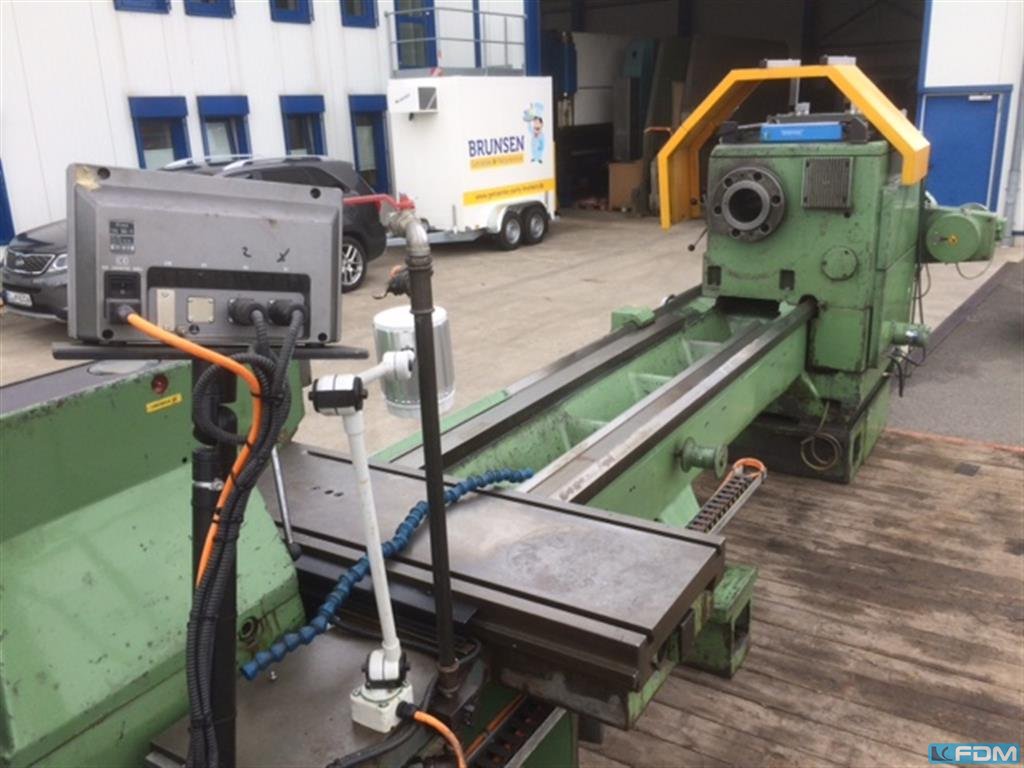

- HEIDENHAIN Digital display, 2-axis
- coolant system
