Details

:

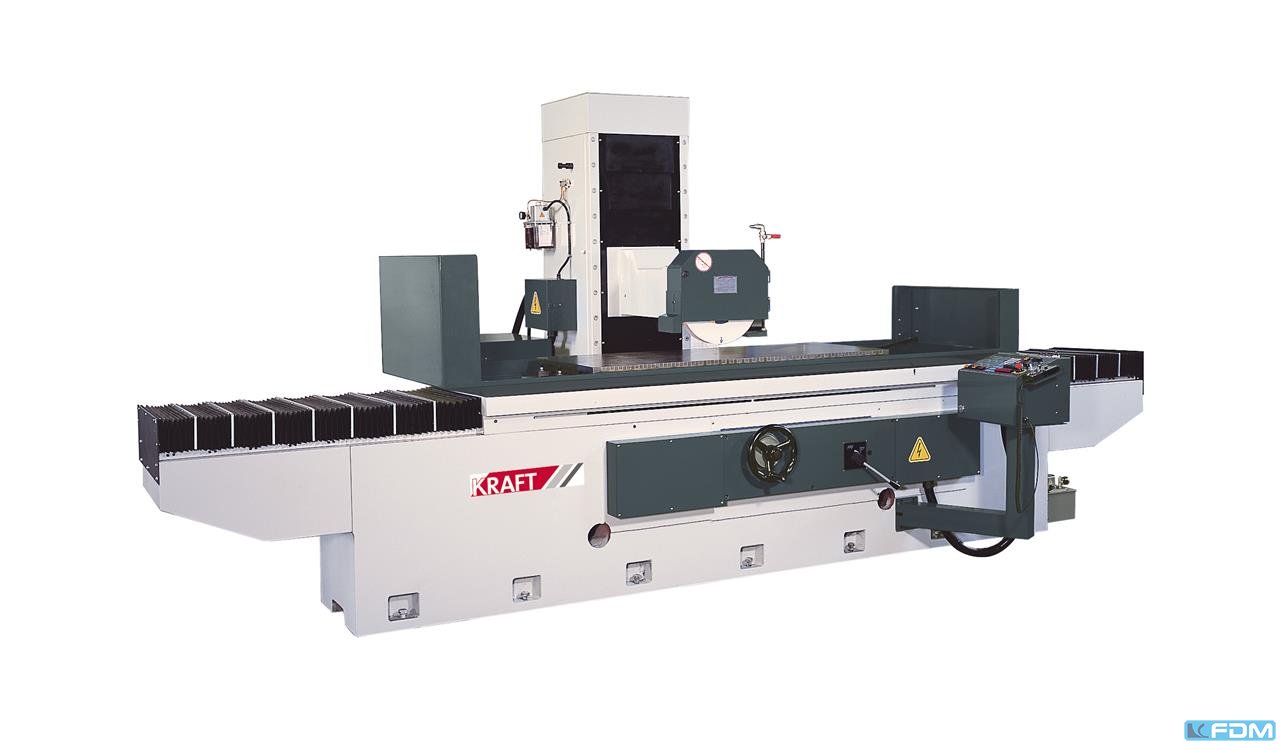

FS-NC-50AHR FS-NC-60AHR FS-NC-70AHR

grinding length:

1020/1520/2020 mm

grinding width:

500 mm600 mm700 mm

Distance spindle center to table:

600 (Option 800, 1000) mm

table surface area:

500x1000/500x1500/500x2000 mm600x1000/600x1500/600x2000 mm700x1000/700x1500/700x2000 mm

table load capacity:

800/1000/1000 kg1200/1400/1400 kg1500/1700/1700 kg

table speed -stepless-:

5-25 m/min

Auto. cross feed increment:

0,5~20 mm/min

rapid traverse cross:

900 mm/min

autom. vertical feed:

0,001~0,999 (Option) mm

grinding wheel speeds:

1450 U/min

dimensions of grinding wheel:

405x50x127 mm

spindle drive:

7,5 (Opt. 11) kW

weight of the machine ca.:

6000/7200/8400 kg6300/7500/8700 kg6600 /7800 /9000 kg

machine width/height:

4600x2300 mm4600x2450 mm4600x2550 mm

machine length:

4600/4800/6000 mm

Accerories

grinding wheel



grinding wheel flange



grinding wheel extractor





balancing mandrel



hydraulic unit



coolant system



levelling elements
