Details

x-travel:

1200 mm

y-travel:

1000 mm

z-travel:

1000 mm

distance spindle nose and table:

100-1100 mm

distance spindle center to table:

200-1200 mm

table height over floor:

1350 mm

pallet table size:

800x800 mm

max. workpiece weight:

1800x2 kg

table - indexing:

1° (optional 0,001°)

max. workpiece height:

1300x1250 mm

spindle speeds:

10000 1/min

spindle drive:

30/25 kW

spindle speed steps:

2

spindle nose:

50 SK/BT

rapid speed:

50 m/min

feeds:

1-20000 mm/U

tool taper:

50 SK/BT

Tool changer:

60 fach

tool diameter:

125 mm

weight of tools max.:

25 kg

workpiece length:

610 mm

number of pallets:

2

weight of the machine ca.:

26000 kg

Accerories

automatic tool changer:

60 fach

cnc rotary table:

1 °

inner coolant:

15 bar

chip conveyor - auger



chip conveyor with chip bucket







CE-design



CE-certificate



Servo motors:

vom Steuerungshersteller

CNC controller:

Siemens/Fanuc/Heidenhain

Spindle oil cooler



fully enclosed



signal lamp



halogen lamp



MPG hand wheel





Description

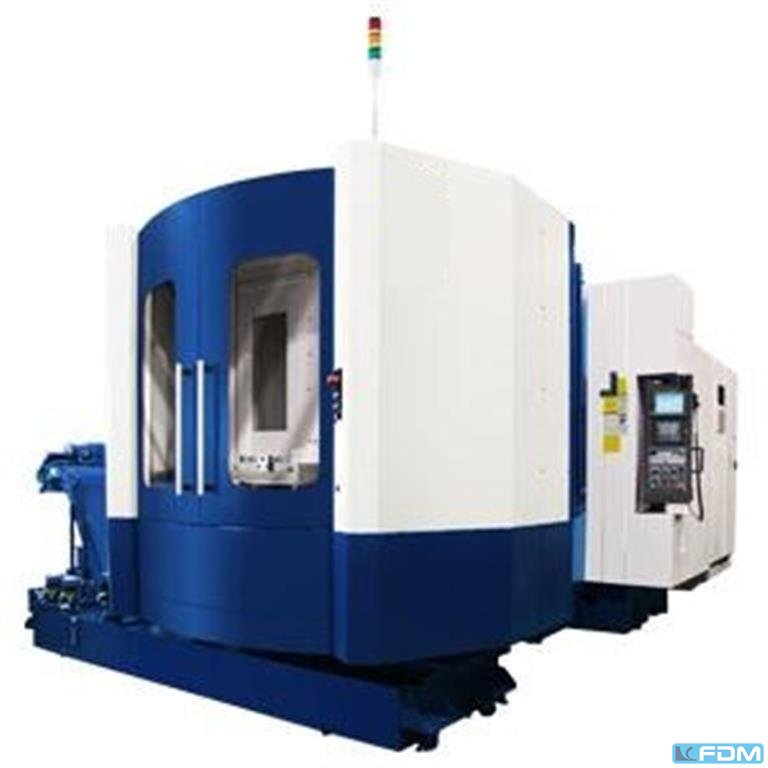

Brand new horizontal machining center with:

CONTAINS:

1. Control system Fanuc Oi-MF (10.4" Screen)
2. Working table size: 400 x 400 mm
3. Max. workpiece dimension: DIA. 630 x H 800 mm
4. Max. table load capacity: 400 kgs x 2 pallets
5. Spindle center to table surface: 80 ~ 660 mm
6. Table center to spindle nose: 70 ~ 650 mm
7. X/Y/Z Stroke 610/580/580 mm
8. X/Y/Z Stroke rapid traverse: 60/60/60 m/min
9. Spindle motor 22/25 KW (built-in type)
10. Spindle speed 12000 RPM with spindle cooler
11. Spindle nose NT#40 (BT40)
12. ATC capacity 60 tools
13. Coolant unit (rear side of machine)
14. Coolant thru. spindle W/H high pressure pump (20bar) and filter system (A type)
15. Full splash cover
16. Rotart type APC unit x 2 working pallets (400x400mm)
17. 4th axis (B-axis) function index 1 degree positioning
18. Electric cabinet with heat exchanger
19. Transformer (power source 380V)
20. Rigid Tapping
21. Manual pulse generator
22. Chip conveyor H=1100 mm with trolley (integrated type)on the rear side
23. Auger type chip screws inside of machine bed
24. New design machine cover & color scheme
25. Fanuc warranty

OPTIONS:

1. CE Mark
2. Balance of 4th axis (B-axis) index 0.001 positioning
3. Coolant gun with on/off switch
4. Oil skimmer (disc type)
5. Manual guide I function

ATC
CTS
linear scales
CNC controls from
tool measuring system
workpiece measurement system
chip conveyor and trolley
automatic pallet changer APC
CNC-rotary table
