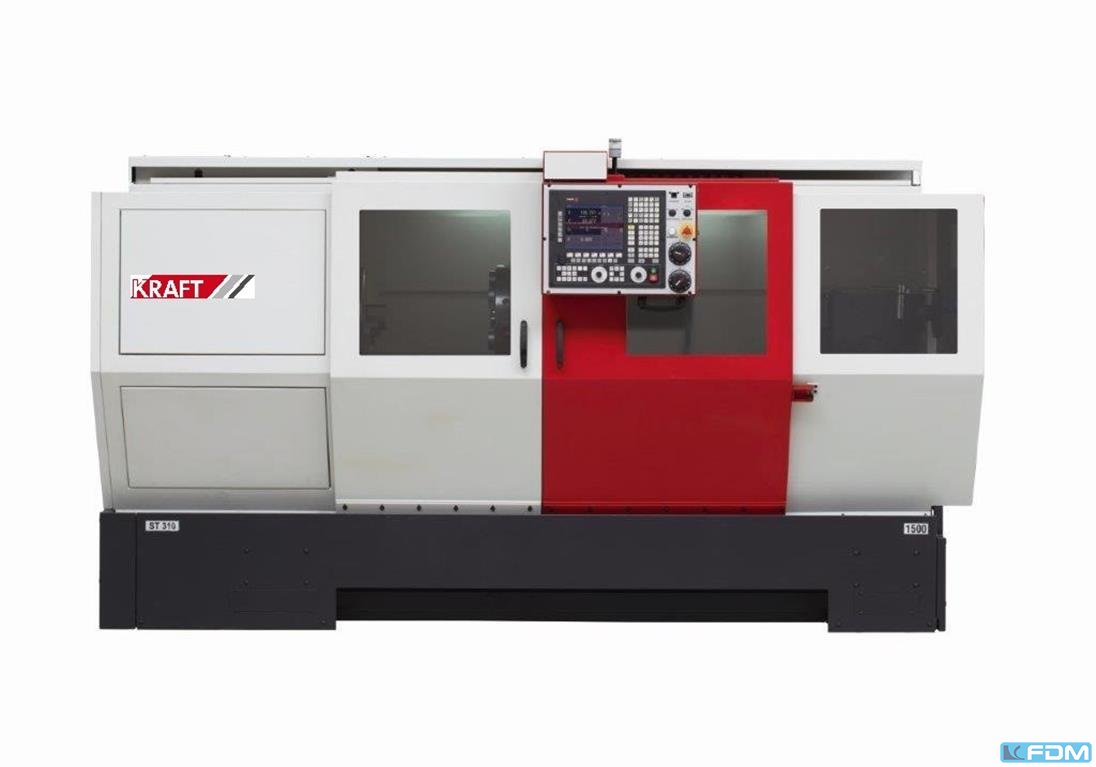

Lathes - CNC Lathe - KRAFT KT 360 Serie

CNC Lathe

KRAFT KT 360 Serie

Stock number:
1124-91043
Year / Condition:
2022
Control unit:
CNC (Fanuc/ Fagor/ Siemens)
Country of origin:
Spain
Freight basis:
ex stock, free on truck
Item location:
Spain
Delivery time:
ca. 3-4 months

Picture / documents / videos

Technical specs

Details

turning diameter:
360 mm
turning length:
750/1000 mm
control:
Fanuc/ Fagor/ Siemens
max. swing over slide:
300 mm
bed width:
250 mm
spindle taper:
As-5
spindle speeds:
0-4000 1/min.
spindle bore:
42 mm
transmission ratio:
tailstock quill diameter:
58 mm
tailstock quill stroke:
180 mm
taper of tailstock quill:
4 MK
max. length of work piece:
750/1000 mm
rapid traverse x/z:
15/12 m/min
power requirement:
7,5 kW
weight of the machine ca.:
1200/1490 kg

Accerories

automatic tool changer:
8-fach
chip pan

European electric

CE-design

levellig elements

center sleeve

dead center

Machine work light

signal lamp

coolant system

automatic lubrication system

electric handwheel:
x-/z-Achse
servo spindle motor

Machine semi-cover



Description

New CNC lathe KRAFT ST 180 Series with Fanuc/Fagor/Siemens control

Made in Europe

For more information please see the attached documents
