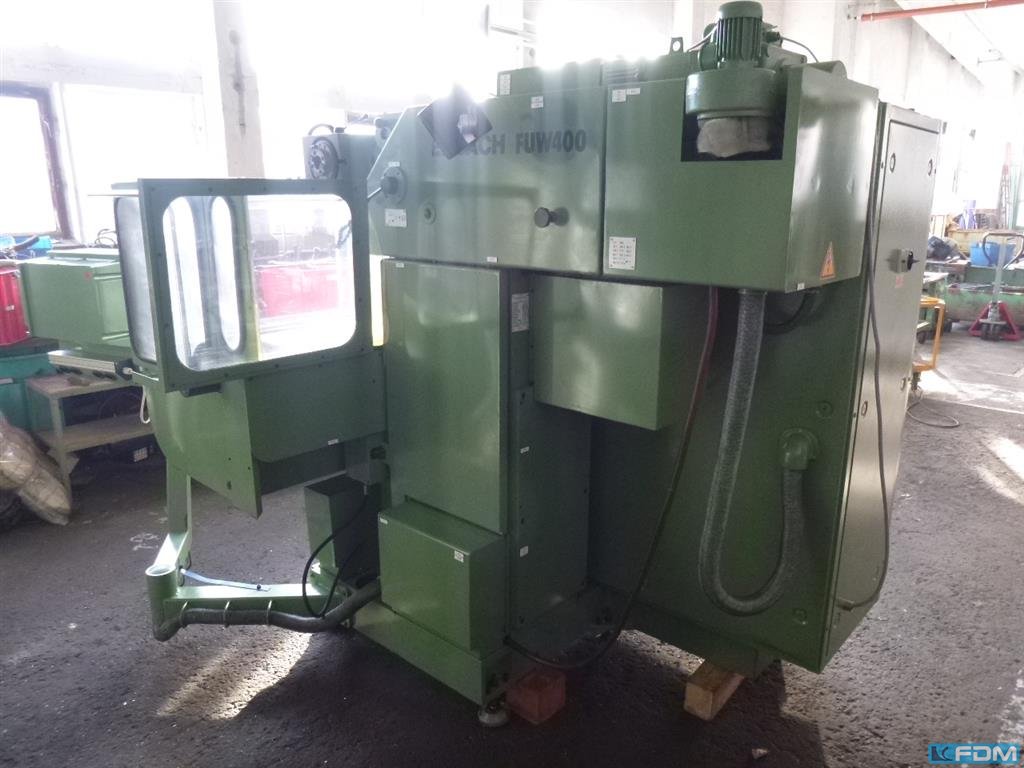

Tool Room Milling Machine - Universal
AUERBACH FUW 400
- Stock number:
- 1106-FR200
- Year / Condition:
- 1992
- Control unit:
- CNC (HEIDENHAIN TNC 335 )
- Country of origin:
- Germany
- Freight basis:
- ex store
- Item location:
- ex Store Jena
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 500 mm
- y-travel:
- 400 mm
- z-travel:
- 330 mm
- table-size:
- 400 x 710 mm
- spindle taper ISO:
- 40
- quill stroke:
- 100 mm
- control:
- HEIDENHAIN TNC 335
- table load:
- 180 kg
- no. of flutes:
- 8
- groove width:
- 14/45 mm
- tool taper:
- ISA 40
- speeds::
- 20 - 3000 /28- 4000 U/min
- feeds:
- infinitely variable1-1250 mm/min
- rapid traverse:
- 5000 mm/min
- total power requirement:
- 13 kW
- weight of the machine ca.:
- 2500 kg
- dimensions of the machine ca.:
- 2000 x 2800 x 2300 mm
Additional information
- Documents
Description
Zusatzinformationen
• Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355

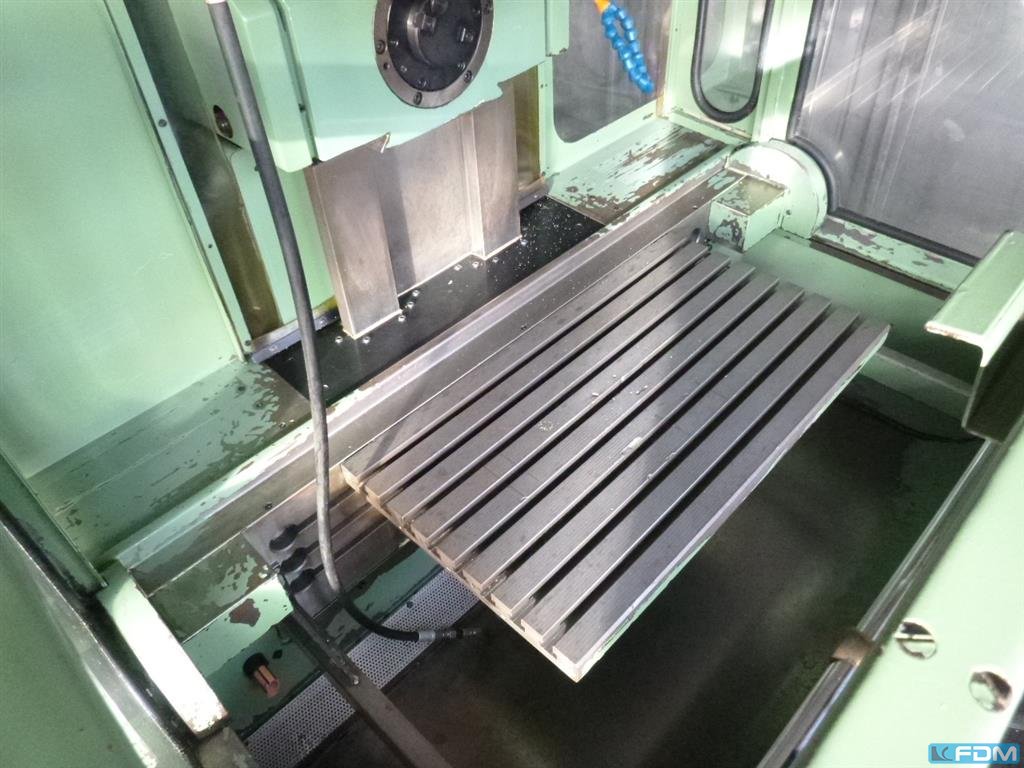

• Starrer Winkeltisch 710 x 400mm
• Spritzschutzverkleidung / Halbkabine
• Kopf nach Skala präzise drehbar über Kurbel
• Kopf komplett wegschwenkbar für horizontal Spindel
