Details

x-axis:

1000 mm

z-axis:

600 mm

diameter:

- mm

measuring range Y-axis:

972 mm

interface:

RS-232

tool taper:

-

weight:

40 kg

power consumption:

100 Watt

Floor Space WxD:

1,2 x 0,8 m

Description

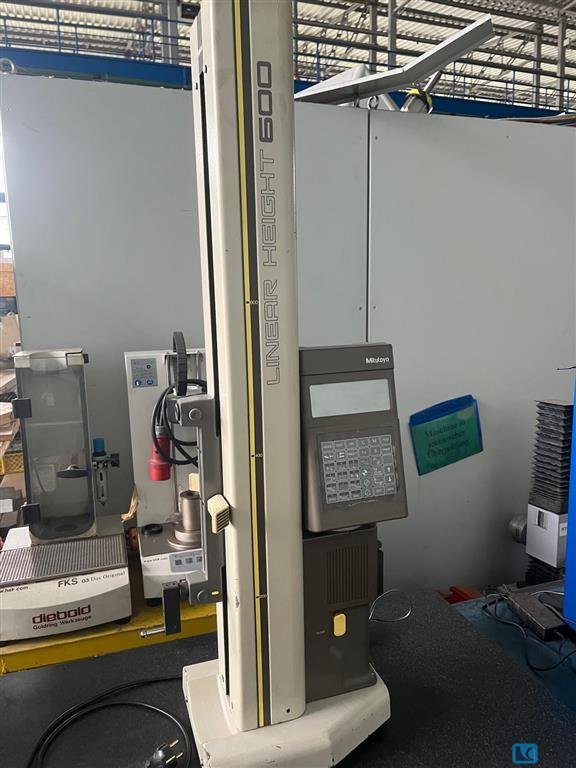

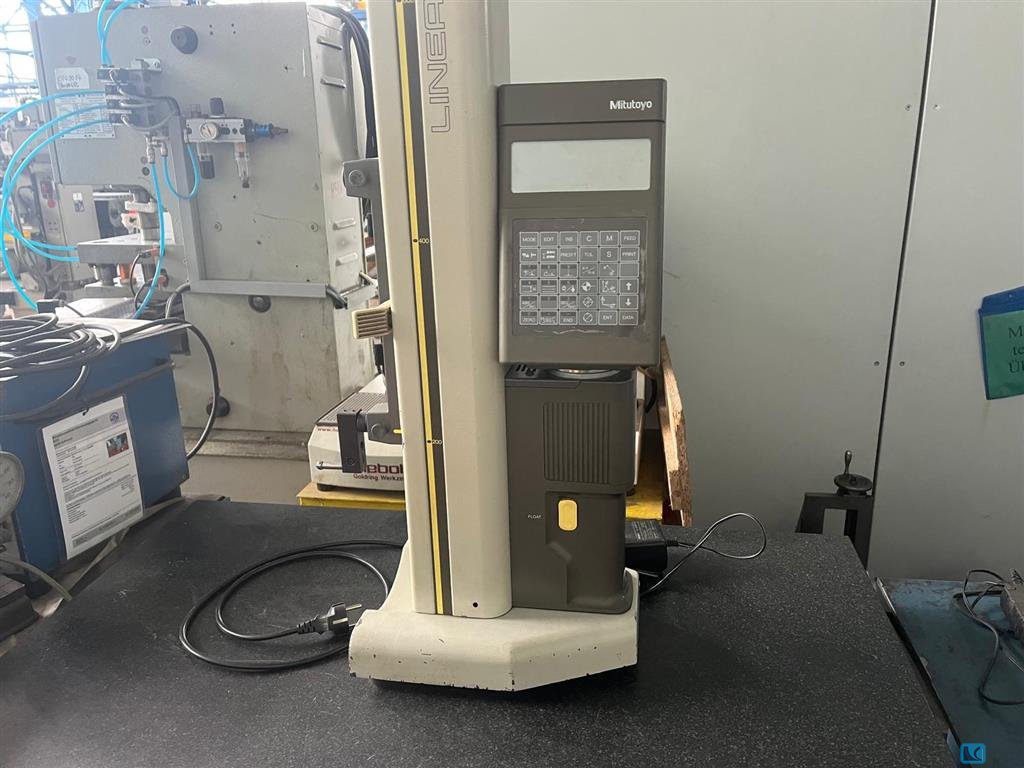

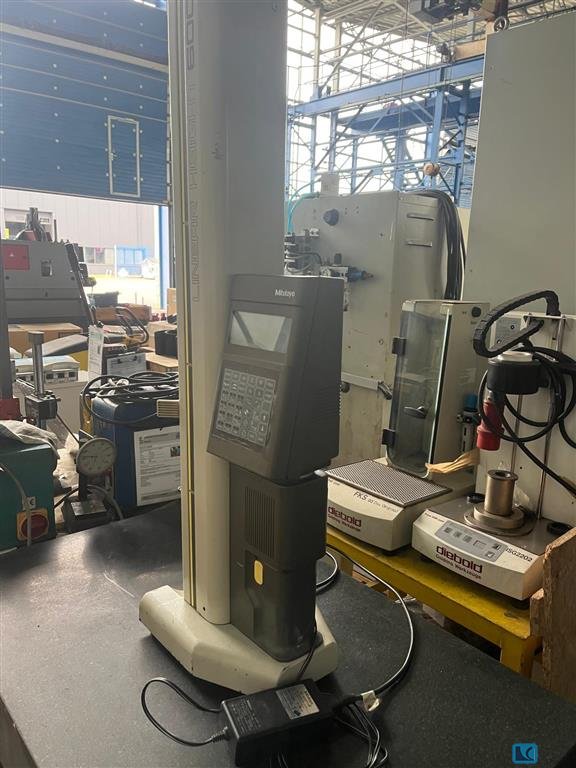

Mitutoyo Linear Height 600 Height Gauge with Wenzel Precision Granite Surface Plate (Optional)
The granite surface plate is not included in the sale but can be purchased separately.
For sale is a high-quality Mitutoyo Linear Height 600 digital height gauge, designed for accurate 2D measurement tasks in quality control, toolmaking, manufacturing and inspection departments.
Mitutoyo Linear Height 600
·Precision digital height measuring instrument
·Measuring range: 600 mm
·RS232 data output
·Made in Japan
·High accuracy and repeatability
·Ideal for quality assurance and manufacturing environments
Measurement Capabilities
·Height measurements
·Internal and external dimensions
·Hole center distances
·Center point determination
·Step measurements
·Diameter measurements
·2D measurement applications
·Angle measurements (with optional accessories)
Optional: Wenzel Precision Granite Surface Plate
·Size: 1000 × 630 mm
·Manufacturer: Wenzel Precision
·Inspection date: 07.11.1989
·Permissible flatness deviation: 0.008 mm
·Measured flatness deviation: 0.005 mm
·Weight: approx. 280 kg
An excellent solution for toolrooms, quality control laboratories, precision engineering and manufacturing facilities.
