tool presetter

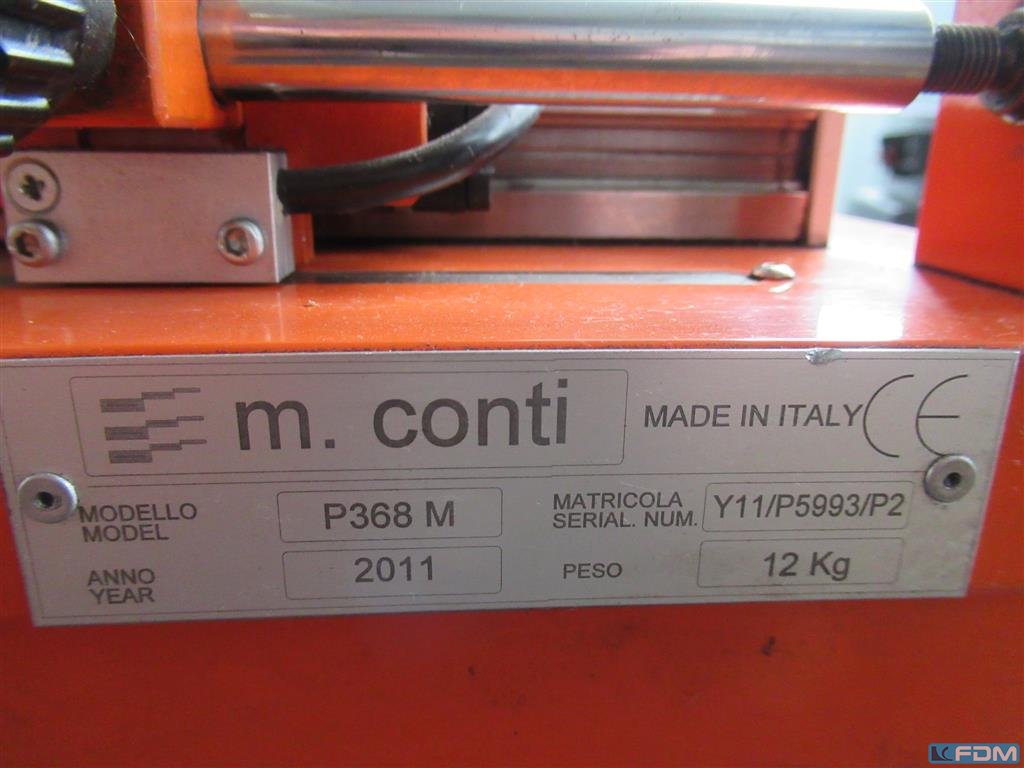

m. conti P368M
- Stock number:
- 1087-1500069
- Year / Condition:
- 2011
- Control unit:
- conventional
- Country of origin:
- Italy
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- measuring range X-axis:
- Länge: 0 - 160 mm
- measuring range Y-axis:
- Höhe: 0 - 425 mm
- Tool table:
- Auflage: Ø 95 mm
- tool taper:
- SK 50
- tool taper:
- drehbar 360°
- weight:
- 12 kg
- dimension L-W-H:
- 420 x 165 x 775 mm
Description

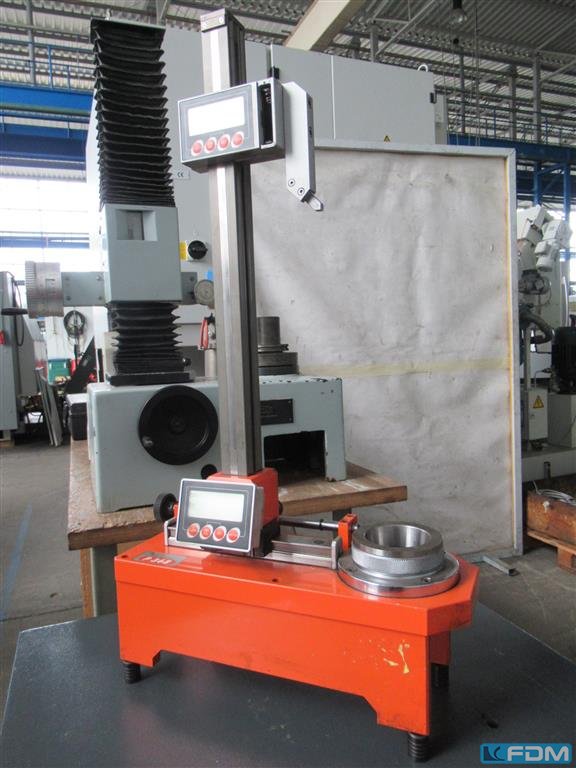

This is a bench top unit.
Application: Alignment of rotary milling tools.
Measuring method: manual alignment with/via digital display

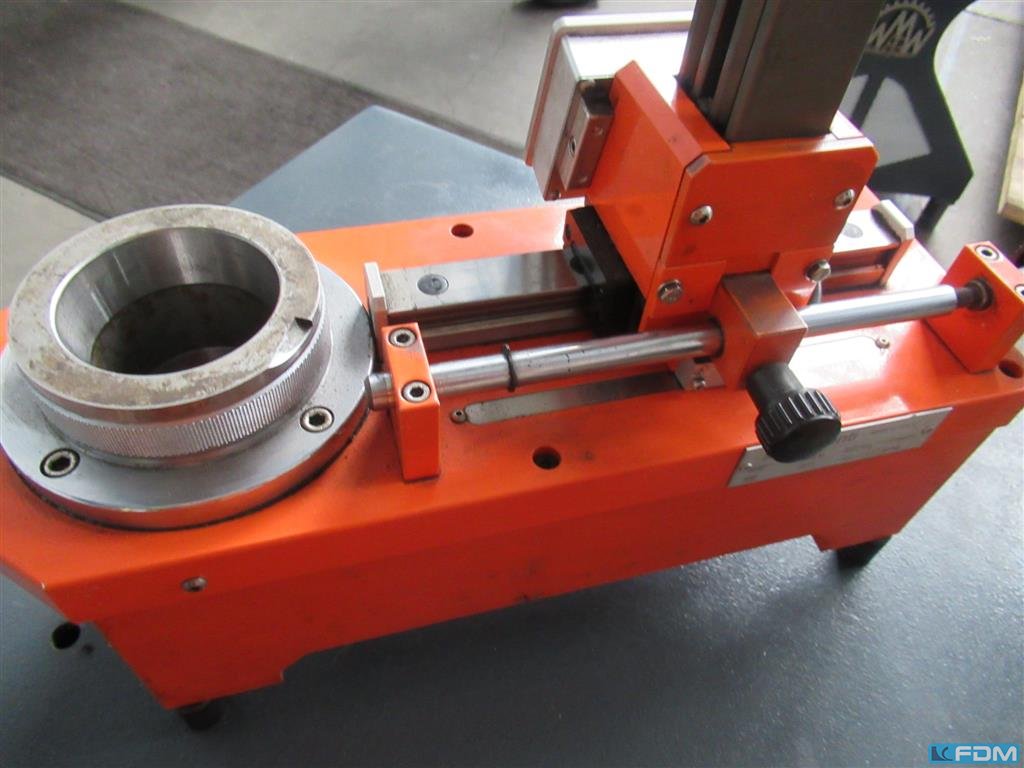

Measuring bar manually movable

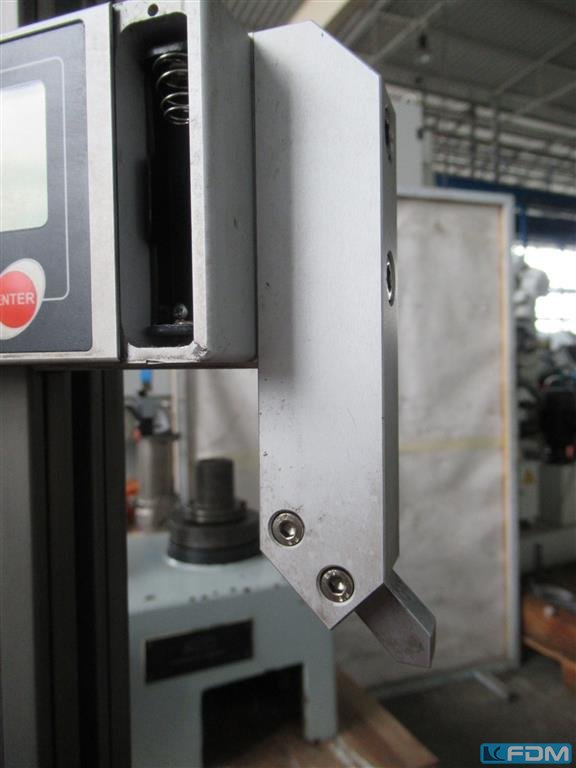

Measuring beam transverse (X) 160mm and vertical (Y) 425mm movable with measuring sensor

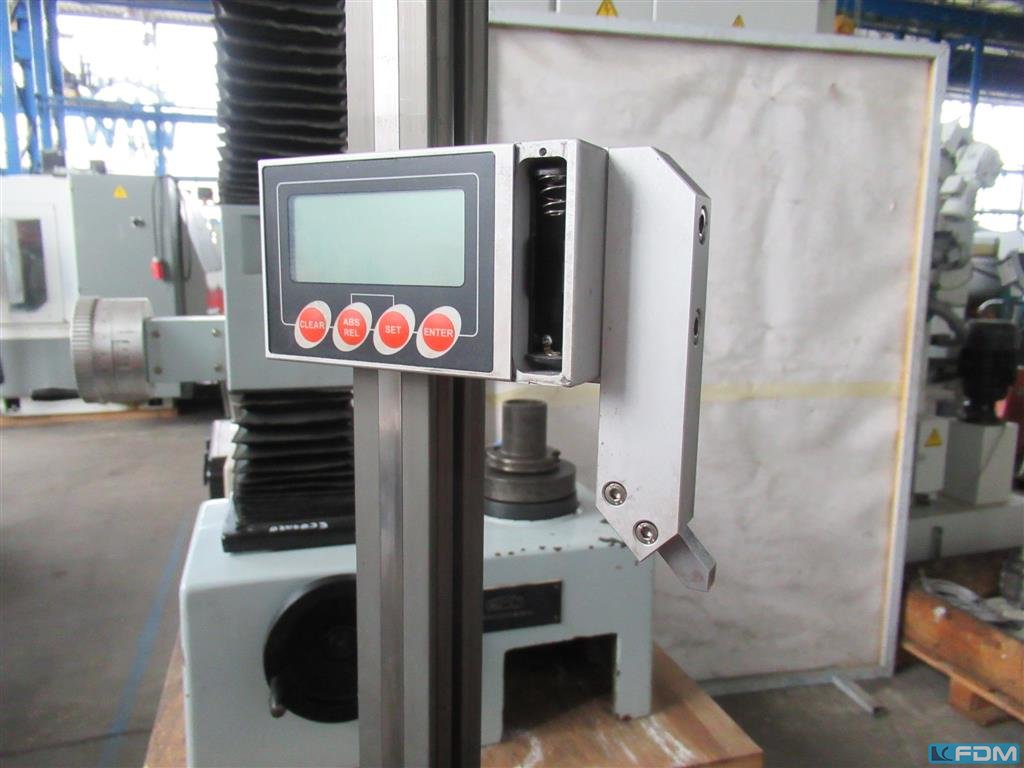

Measuring display: both axes digital, voltage 1.5 V (AA battery)
