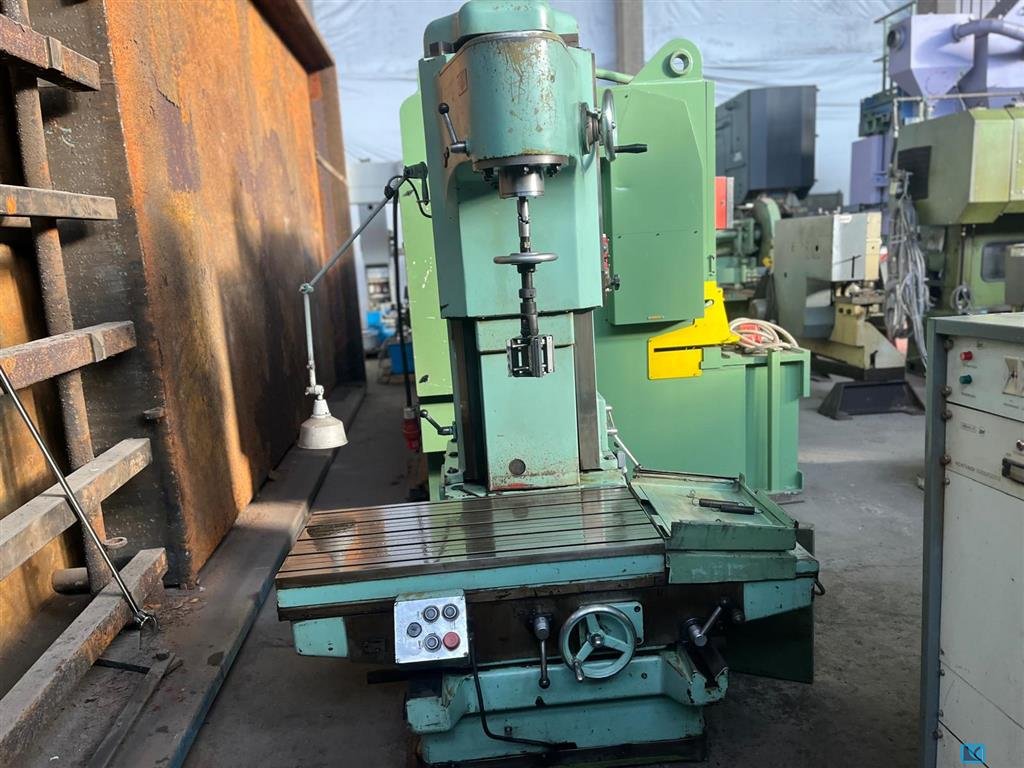

Honing Machine - Internal - Vertical
Werkzeugmaschinenfabrik Frunse 2A78
- Stock number:
- 1087-0800514
- Year / Condition:
- 1977
- Control unit:
- conventional
- Country of origin:
- Russia
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- honing diameter:
- 125 mm
- stroke:
- 500 mm
- throat:
- - mm
- distance table - lower edge spindle:
- 525 mm
- grinding spindle speed:
- 26-1200 (12Steps) U/min
- honing diameter:
- 30 (min.) mm
- honing diameter:
- 165 (max.) mm
- table adjustment::
- 800/150 (max.) mm
- table surface area:
- 500 x 1000 cm
- total power requirement:
- 4,22 kW
- Weight approx.:
- 0,15 t
- dimension machine approx.LxWxH:
- 1,30 x 1,20 x 2,70 m
Description
There is a movable table that moves lengthwise and crosswise.
·There is a movable table that travels in both longitudinal and transverse directions.
·Manual lubrication with cooling.
·The machine is capable of honing.
·Pendulum movement in rapid traverse between two adjustable end positions is possible.
