Details

max. wheel diameter:

300 mm

max. module:

5

module min. :

0,5

max. workpiece weight:

60 kg

weight of the machine ca.:

4,0 t

dimensions of machine:

1800x1850x2500 mm

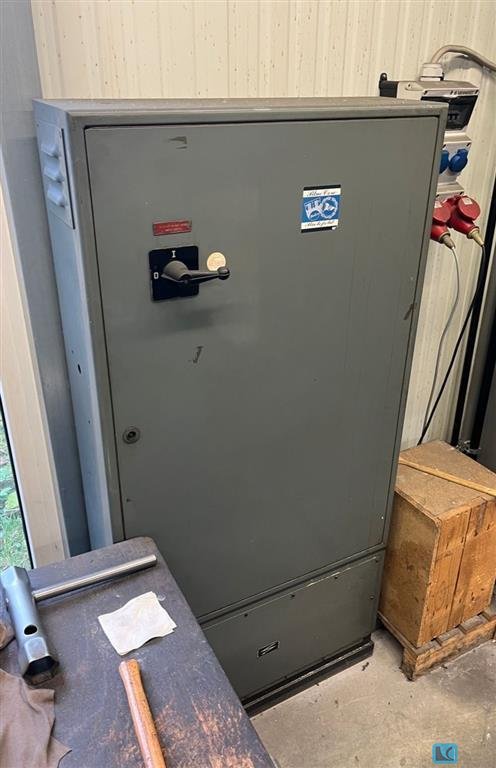

dimensions electric cabinet:

Nr. 1: 1930x400x1920 mm

dimensions electric cabinet:

Nr. 2: 800x230x1950 mm

dimensions::

Abluftanlage: 1400x700x560 mm

dimension cooling device LxWxH:

1,2 x 1,0 x 0,45 m

Description

Electronically controlled tooth flank grinding machine
up to module 5 and a Ø of 240 - 300 mm
feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm
max./min. Number of teeth: 130 / 12
max./min. Pressure angle: 30° / 14°30`
max./min. Spiral pitch with 24 teeth: 6000 / 200 mm
max. tooth helix angle, both sides: 45°
Speed of the grinding worm: 1900 rpm
without dressing device
Equipment:
approx. 77x change transmission wheels, pipe extensions and various tools

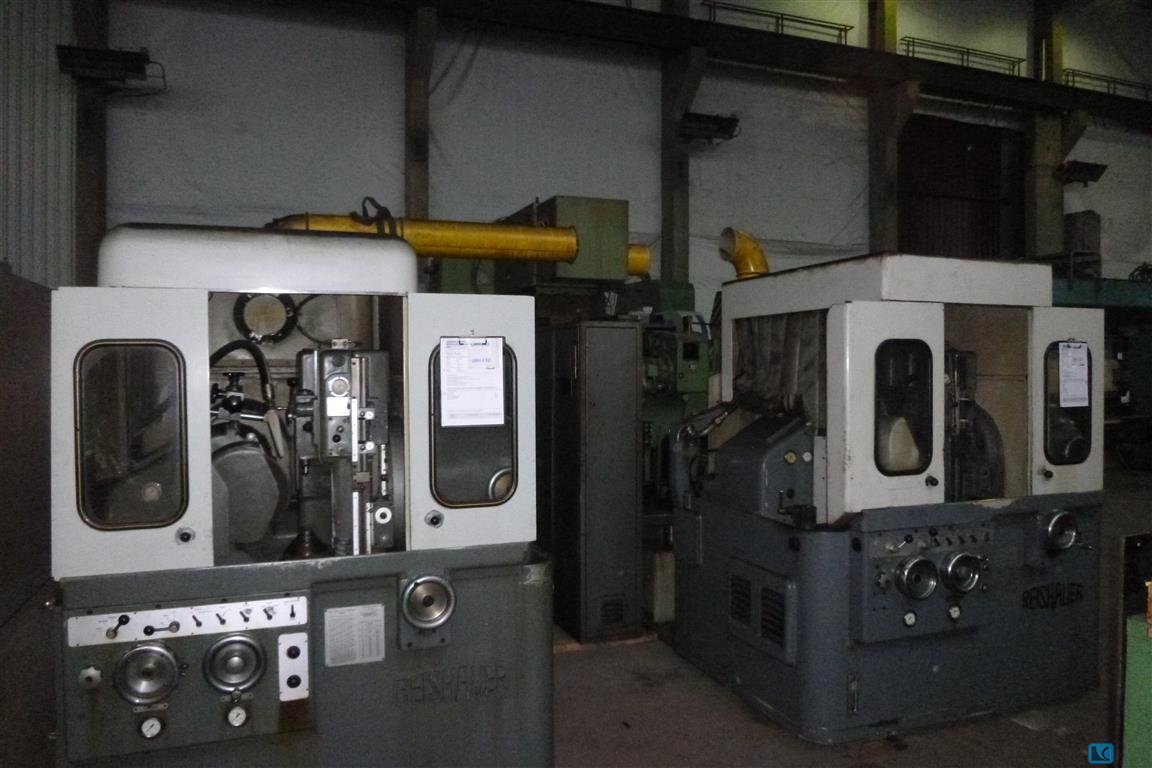

Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system.
